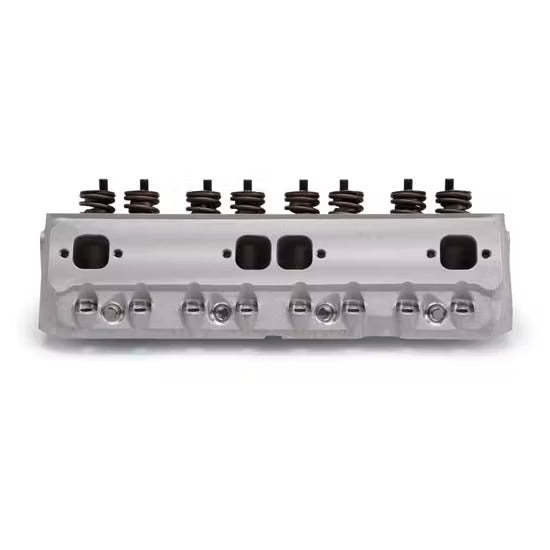

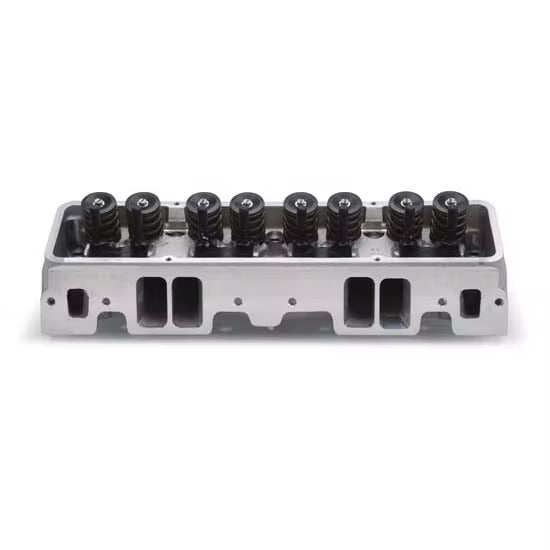

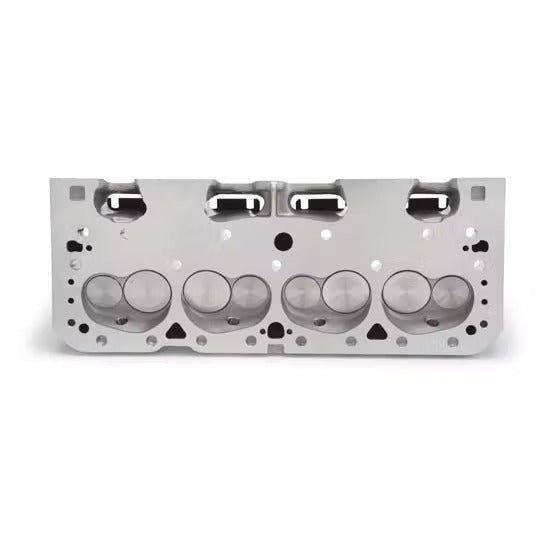

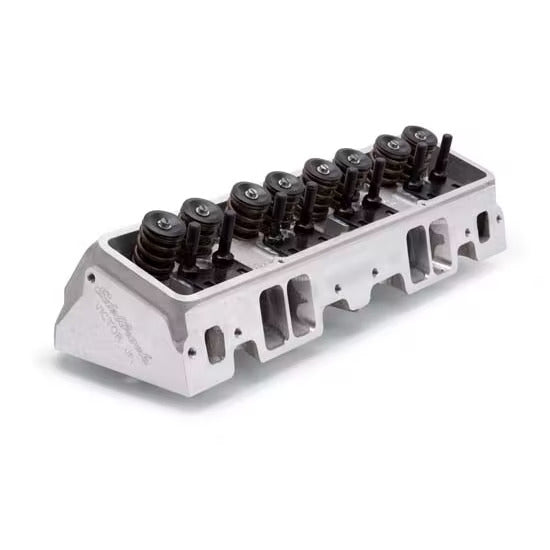

EDELBROCK #77629 - Victor Jr. 23° Cylinder Head for Small-Block Chevy

Sold Individually.

Ideal for those who desire affordable heads that make maximum power, these Victor Jr. heads from Edelbrock are just what the doctor ordered. Specifically designed for the needs of competition and ultra-high performance street engines, they offer increased horsepower and rpm potential in an out-of-the-box, cost-effective, race-winning setup. Features include hardened ductile iron valve seats and phosphor-bronze guides

Combustion Chamber Volume (cc): 70

Intake Runner Volume (cc): 215cc

Exhaust Runner Volume (cc): 85cc

Cylinder Head Style: Assembled

Cylinder Head Material: Aluminum

Intake Port Shape: Rectangular

Intake Valve Diameter (in.): 2.080 in.

CNC-Machined Combustion Chamber: No

CNC-Machined Intake Runner: No

CNC-Machined Exhaust Runner: No

Intake Port Location: Standard

Exhaust Port Shape: Square

Exhaust Port Location: Standard

Spark Plug Style: Angle

Intake Valves Included: Yes

Exhaust Valves Included: Yes

Exhaust Valve Diameter (in.): 1.600 in.

Valve Springs Included: Yes

Maximum Valve Lift (in.): 0.670 in.

Outside Diameter of Outer Spring (in.): 1.550 in.

Damper Spring Included: Yes

Number of Springs Per Valve: Dual

Retainers Included: Yes

Retainer Material: Steel

Locks Included: Yes

Lock Style: 7 degree

Valve Stem Seals Included: Yes

Valve Stem Seal Style: Positive stop

Rocker Arm Studs Included: Yes

Rocker Arm Nut Thread Size: 7/16 in.-20

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: Yes

Guideplate Pushrod Size: 5/16 in.

Valve Cover Mounting Style: Perimeter bolt

Accessory Bolt Holes Drilled: Yes

Intake Valve Angle: 23

Valve Guides Included: Yes

Valve Guide Material: Manganese bronze

Valve Seats Machined: Yes

Valve Seat Machine Style: 3-angle

Valve Seat Material: Ductile iron

Cylinder Head Color: Natural

Steam Holes Drilled: No

Oiling Style: Through pushrod

Machined for O-Ring: No

Heat Crossover: No

Quantity: Sold individually.
