EDELBROCK

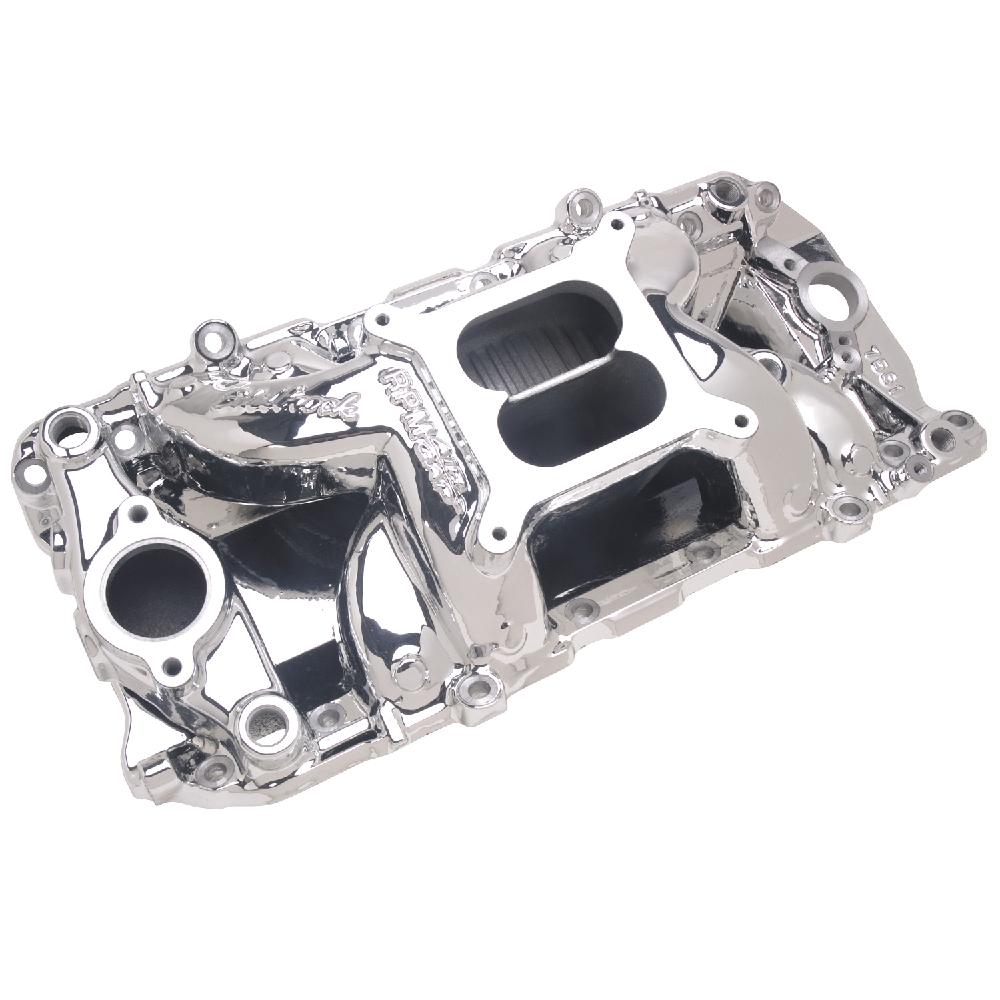

EDELBROCK #75614 - RPM Air-Gap Oval Port Intake Manifold for Big-Block Chevy - EnduraShine
EDELBROCK #75614 - RPM Air-Gap Oval Port Intake Manifold for Big-Block Chevy - EnduraShine
Regular price
$638.95 USD
Regular price
Sale price
$638.95 USD
Unit price
/
per
We currently have 1 in stock.
Couldn't load pickup availability
Edelbrock part #75614 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. This RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover.
Intake Section Included:Â Complete
Engine Block Deck Height:Â Standard deck
Carburetor Quantity:Â One
Intake Style:Â Dual plane
Basic Operating RPM Range:Â 1,500-6,000
Intake Manifold Height:Â 5.220 in.
Intake Finish:Â EnduraShine
Intake Material:Â Aluminum
EGR:Â No
Quantity:Â Sold individually.
Notes:Â Recommended intake gasket: Edelbrock #7203; Manifold height: A-4.45", B-6.0"; Carb pad height: 5.22"; Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78.; Port exit dimensions: 1.60" x 1.94"; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
