EDELBROCK

EDELBROCK #7561 PERFORMER RPM AIR-GAP INTAKE MANIFOLD

EDELBROCK #7561 PERFORMER RPM AIR-GAP INTAKE MANIFOLD

Regular price $425.95 USD
Regular price Sale price $425.95 USD
Sale Sold out
We currently have 3 in stock.

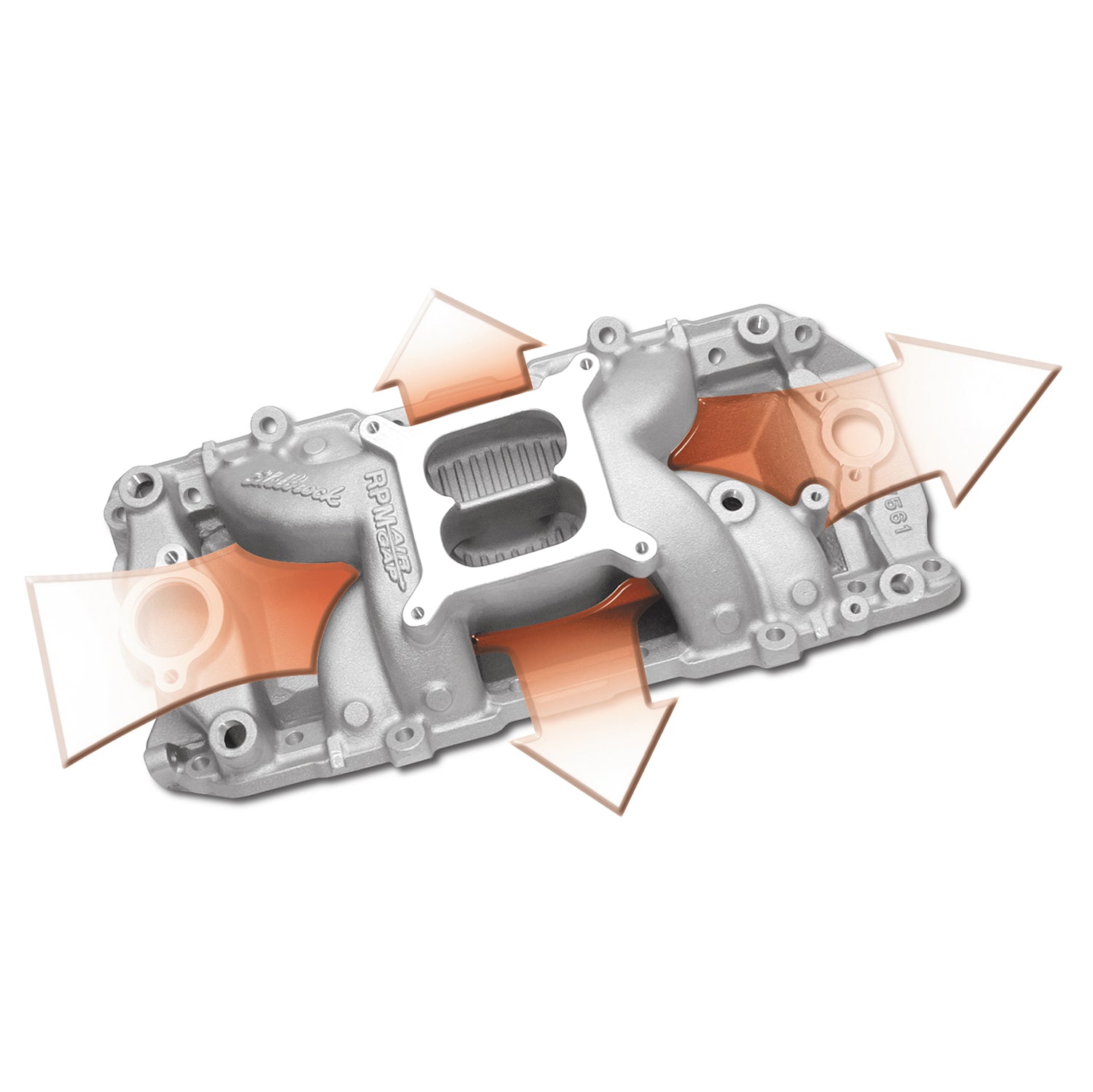

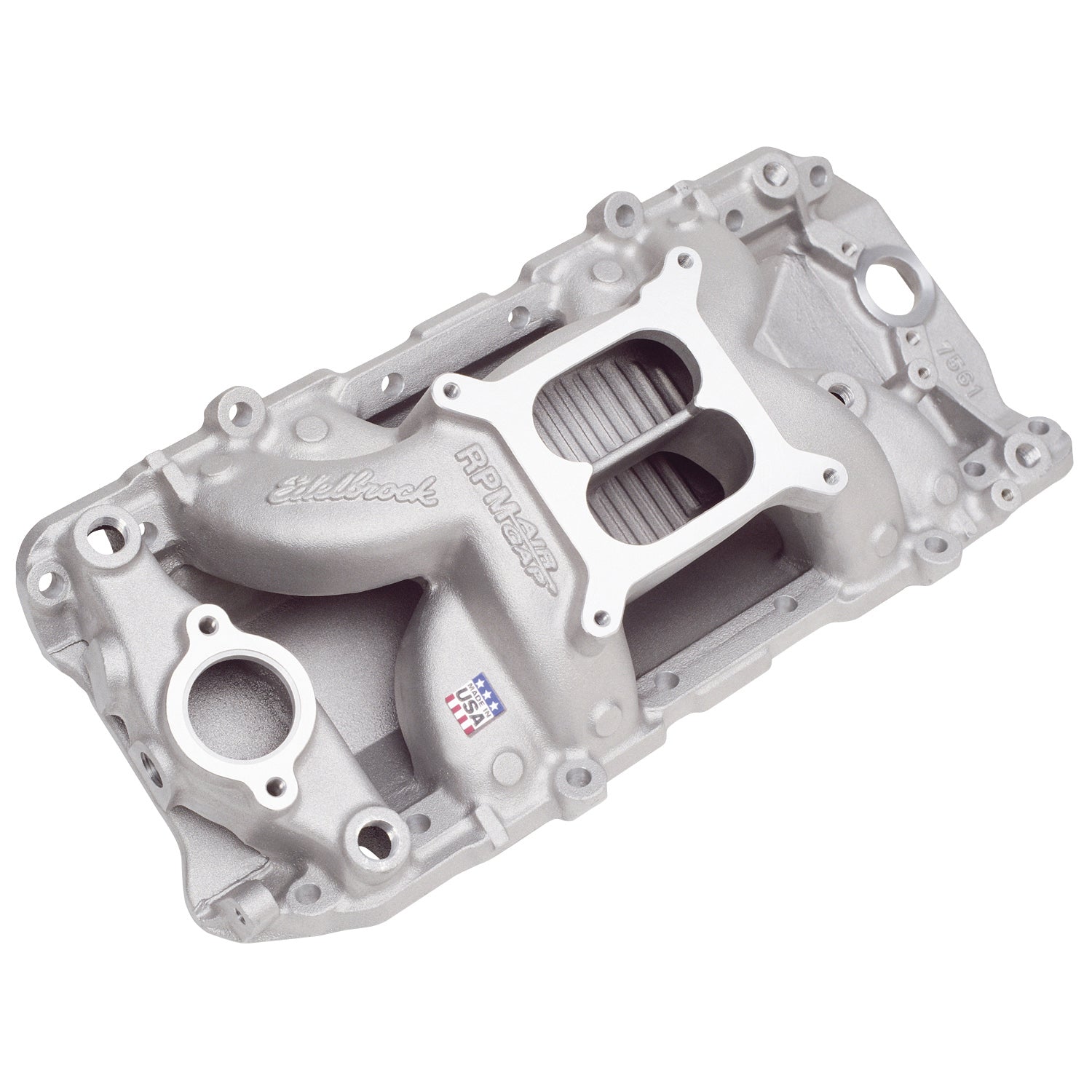

Edelbrock part #7561 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. This RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover.

Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Dual plane
Basic Operating RPM Range: 1,500-6,500
Intake Manifold Height: 5.220 in.
Intake Finish: Natural
Intake Material: Aluminum
EGR: No
Quantity: Sold individually.
Notes: Recommended intake gasket: Edelbrock #7203; Manifold height: A-4.45", B-6.0"; Carb pad height: 5.22"; Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78.; Port exit dimensions: 1.60" x 1.94"; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
