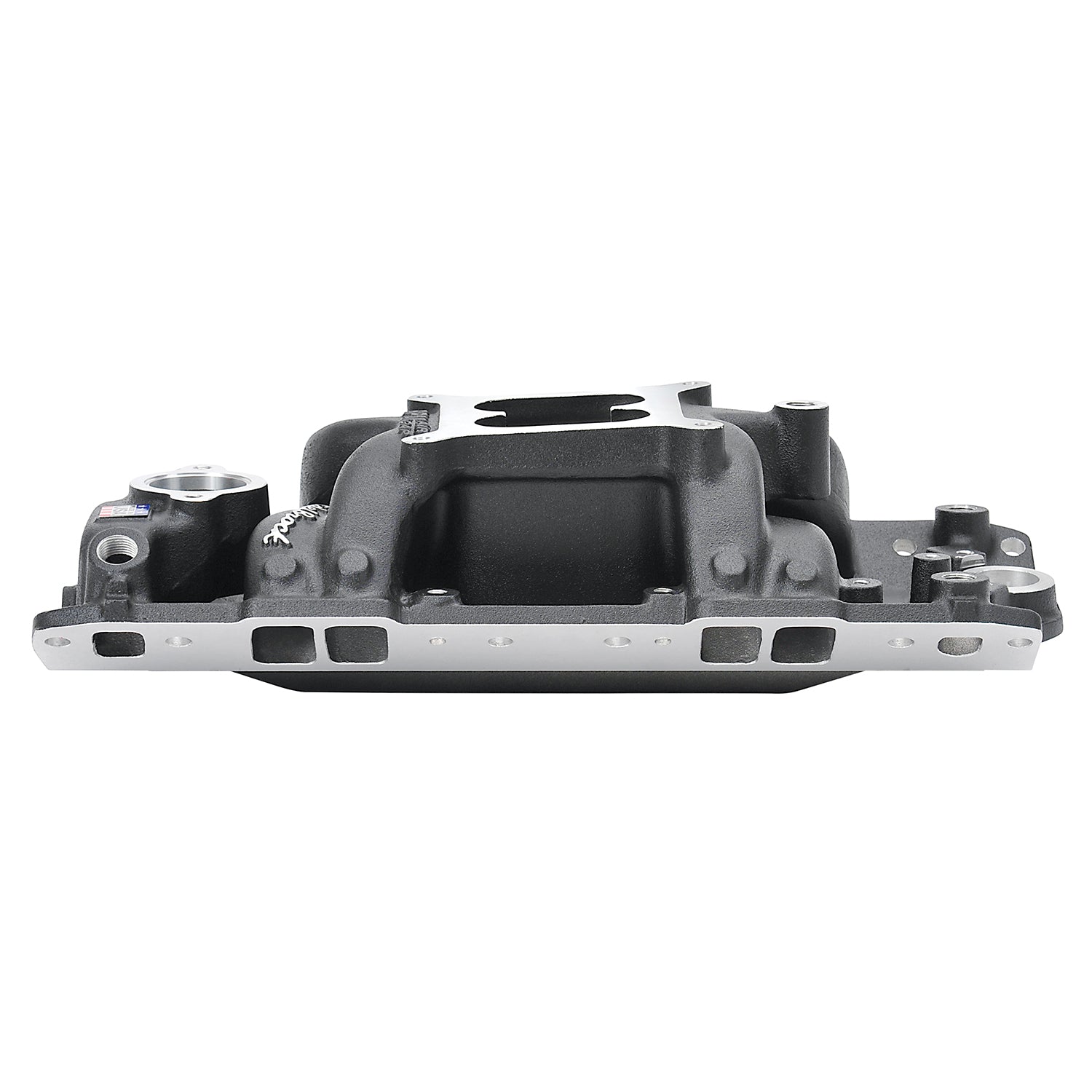

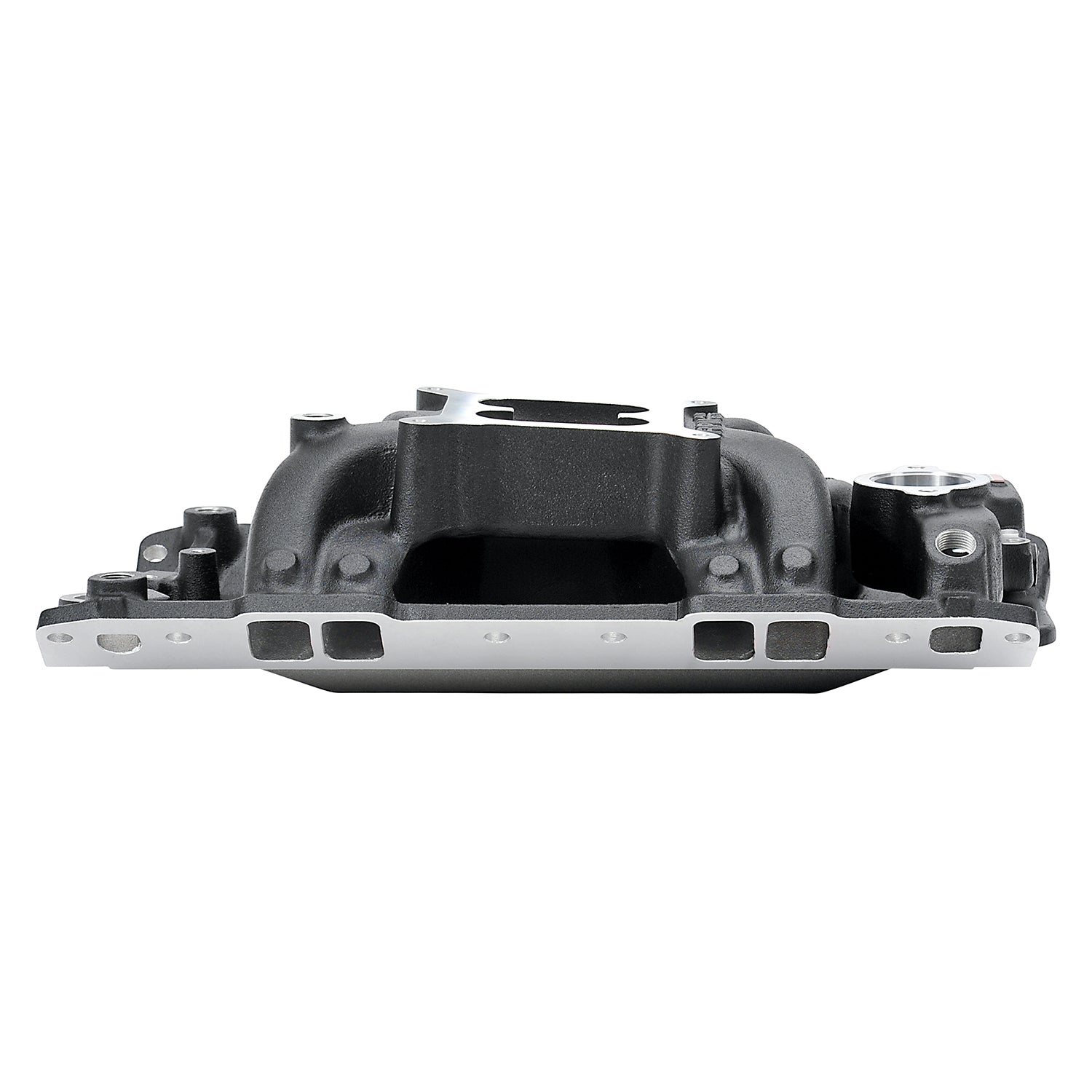

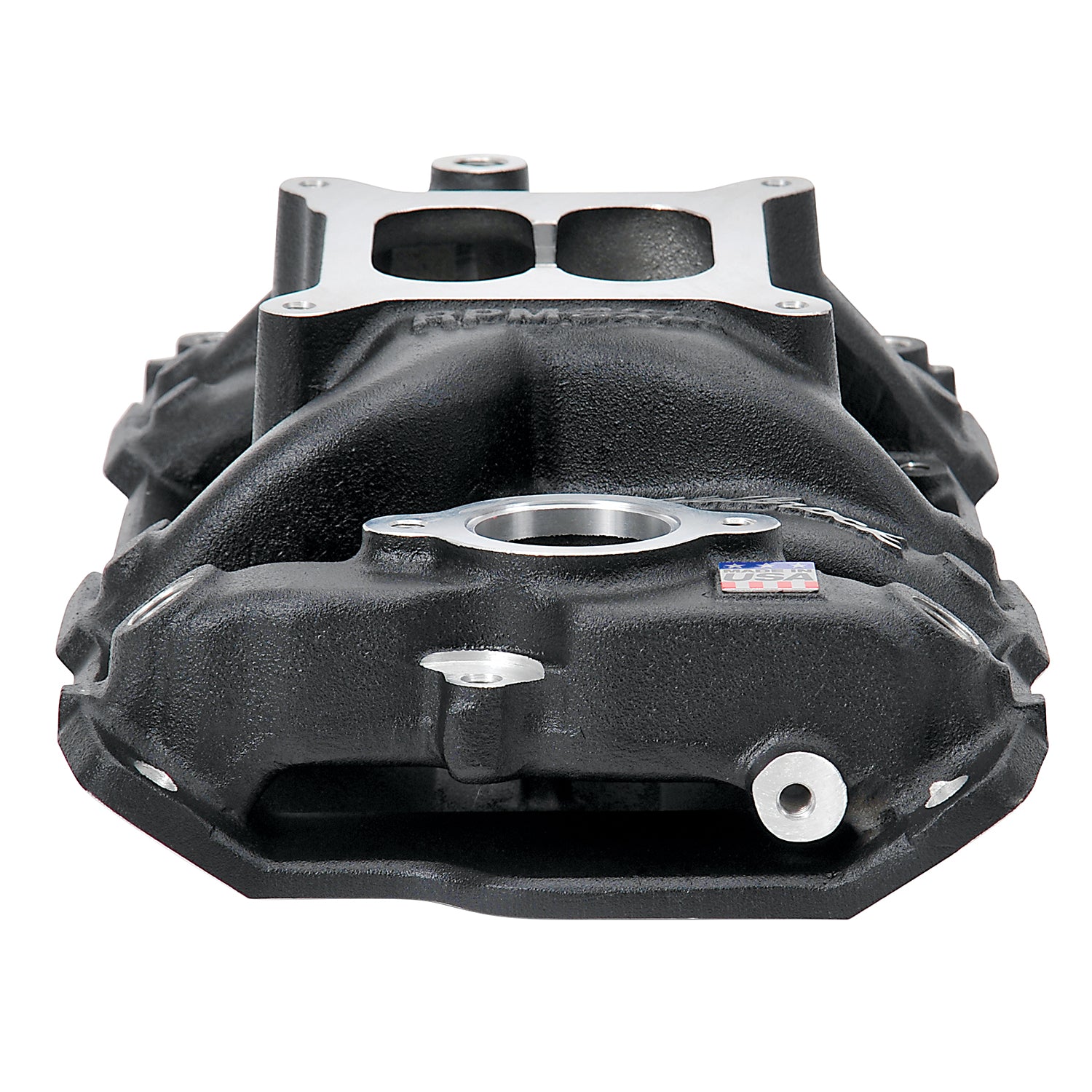

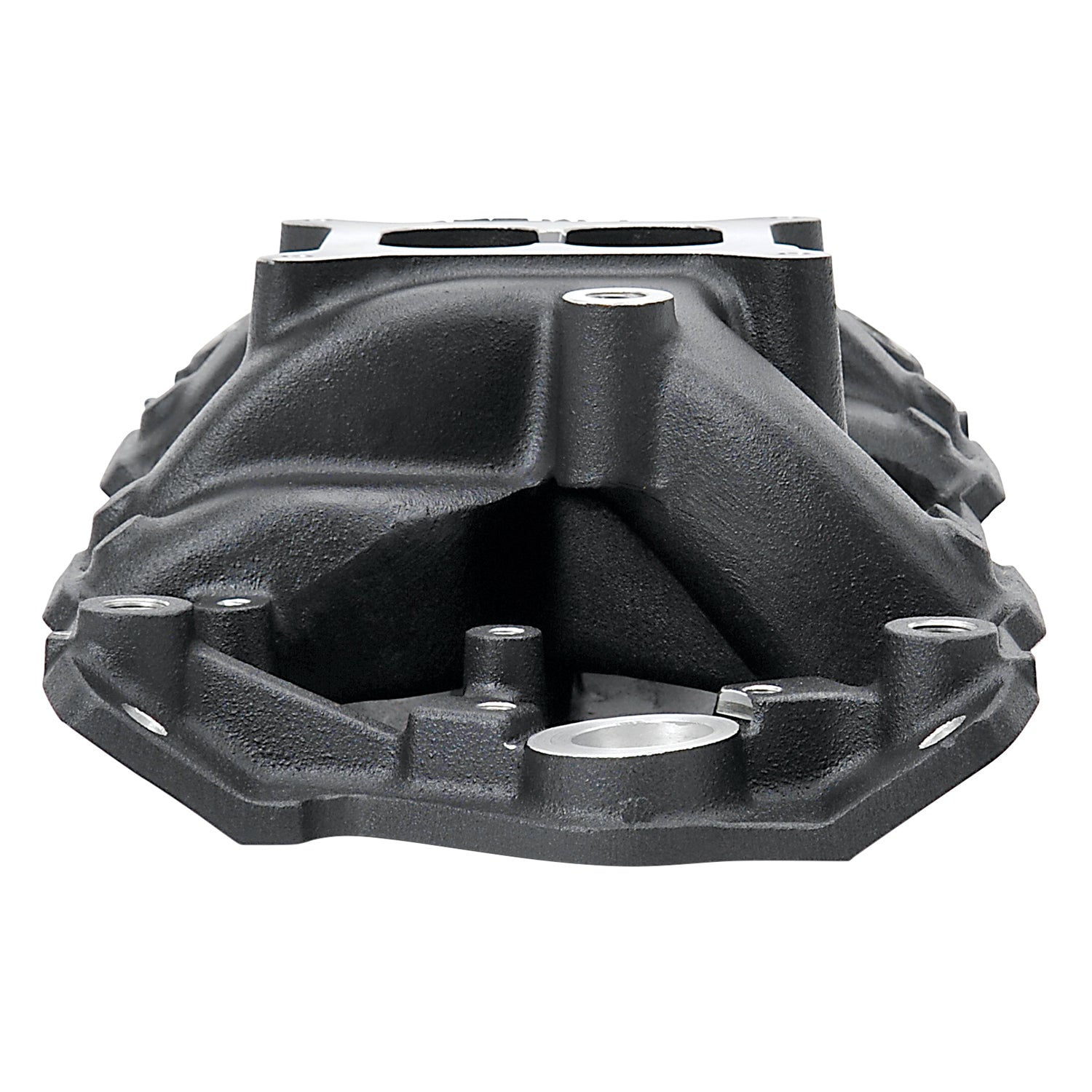

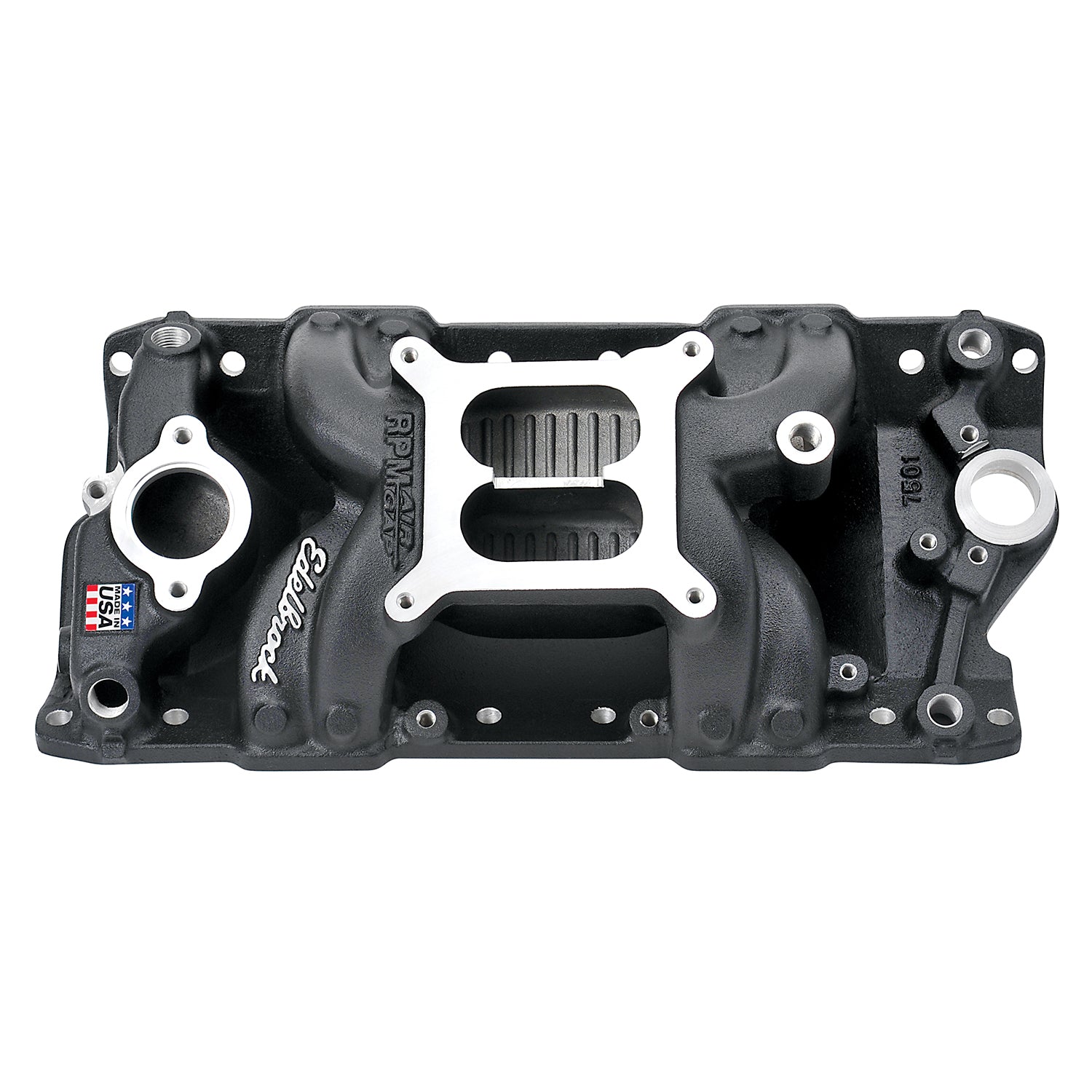

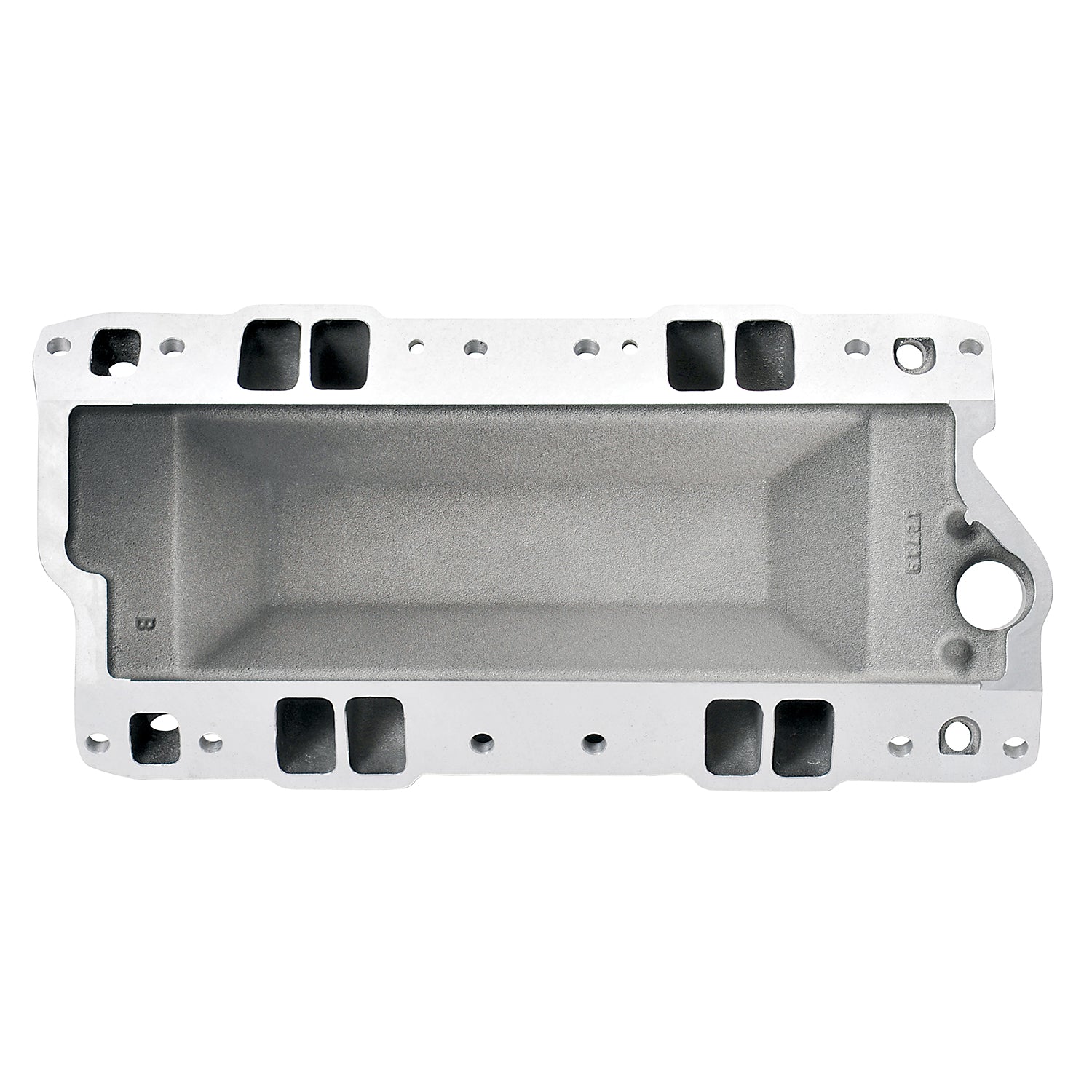

EDELBROCK #75013 - RPM Air-Gap Intake Manifold for SBC - Black
EDELBROCK #75013 - RPM Air-Gap Intake Manifold for SBC - Black
Regular price
$509.95 USD
Regular price
Sale price
$509.95 USD
Unit price
/
per
We currently have 2 in stock.
Couldn't load pickup availability
Edelbrock part #75013 RPM Air-Gap RPM intake manifold is designed for 1955-86 262-400 c.i.d. Chevrolet V8's. The award-winning RPM Air-Gap intake manifold incorporates the same race-winning technology that's used on our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Edelbrock's Performer RPM gives you the ultimate in street high-performance. Accepts all 1976 and later alternator and A/C brackets for the street. No provision for exhaust- heated chokes and no exhaust crossover. Not for 1987 and later cast iron heads and will not fit under stock Corvette hood. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Intake Section Included:Â Complete
Engine Block Deck Height:Â Standard deck
Carburetor Quantity:Â One
Intake Style:Â Dual plane
Basic Operating RPM Range:Â 1,500-6,500
Intake Manifold Height:Â 4.720 in.
Intake Finish:Â Black powdercoated
Intake Material:Â Aluminum
EGR:Â No
Quantity:Â Sold individually.
Notes:Â Manifold ht: A-4.20", B-5.25" (.70" taller than #2101); Carb pad height: 4.27"; Port exit dimensions: 1.14" x 1.95"; Recommended intake gasket: Edelbrock #7201.; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Use #8504 Edelbrock bolt kit; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.; DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.; Will not fit under stock Corvette hood.
