EDELBROCK #7343 - RPM-Link Single-Roller Timing Chain Set for LS
EDELBROCK #7343 - RPM-Link Single-Roller Timing Chain Set for LS
Regular price
$187.95 USD
Regular price
Sale price
$187.95 USD
Unit price
/
per
We currently have 2 in stock.
Couldn't load pickup availability

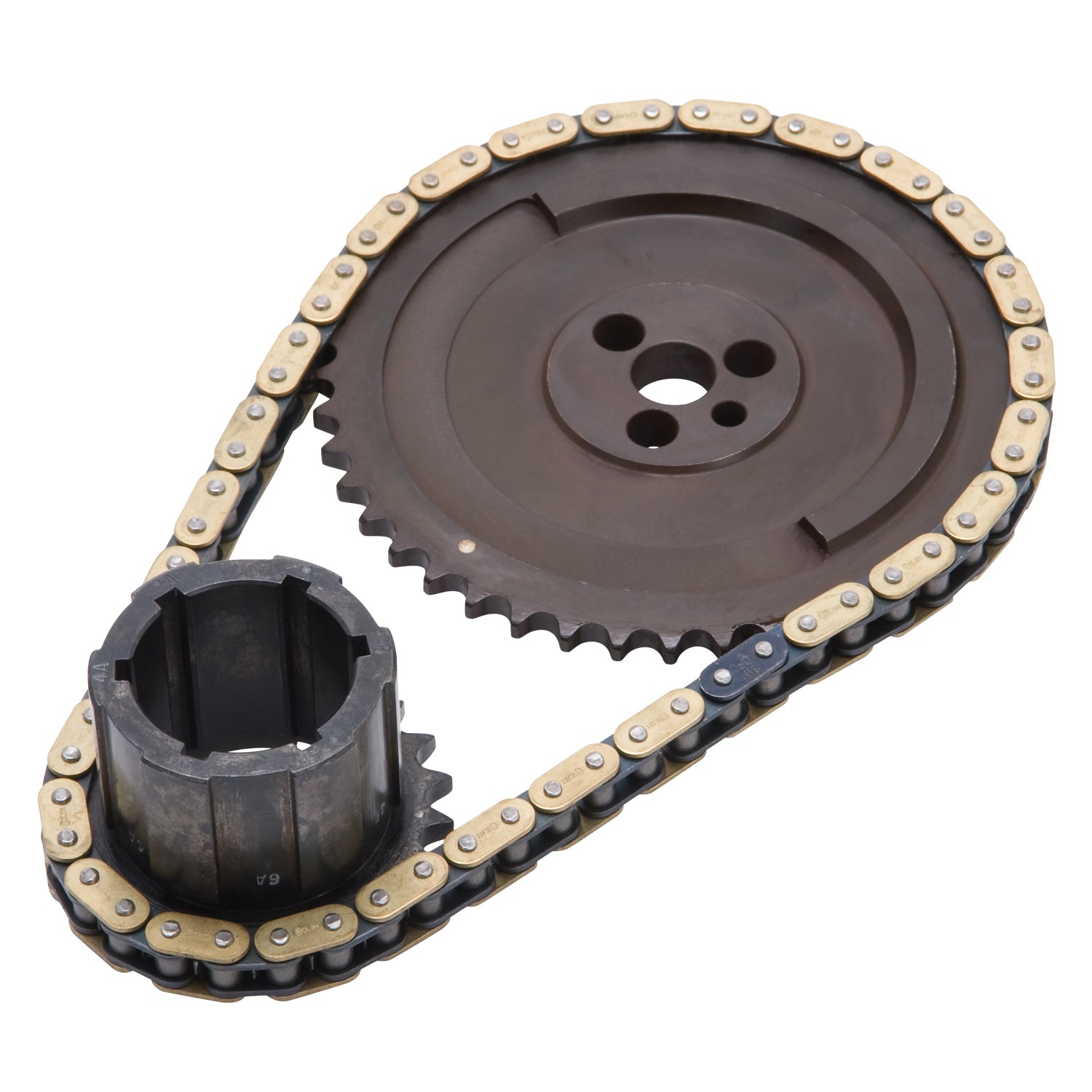

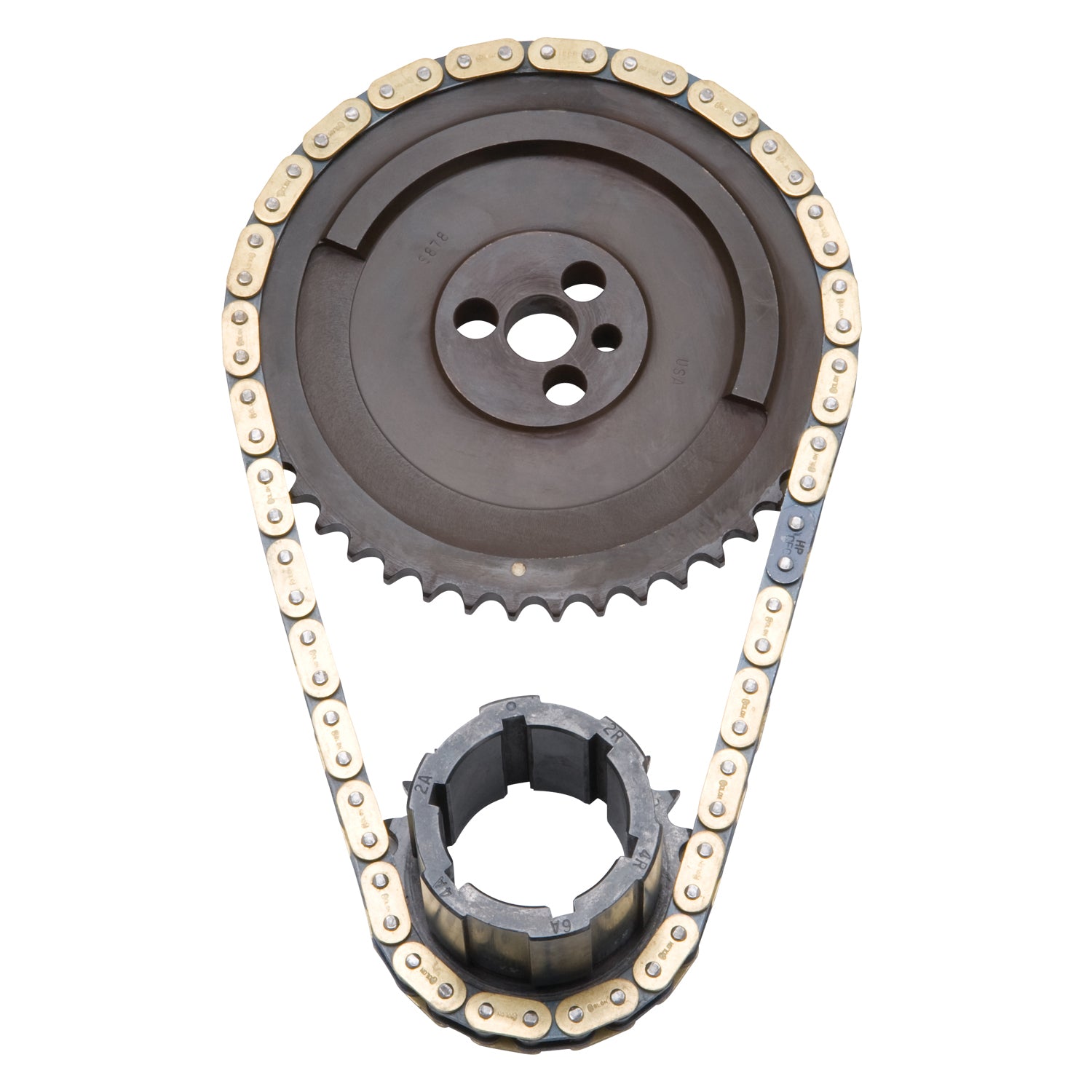

Edelbrock part #7343 RPM-Link adjustable true-roller timing chain Set now, you can dial-in your camshaft with ease with our RPM-Link Roller Timing Chain Set. RPM-Link timing chain bolt onto your engine just like any other timing chain set, so there's no machining required and no need for special offset bushings for installation. Made from induction hardened billet steel, it allows for a quick cam timing adjustment to plus or minus six degrees. Performer roller chain sets are engineered to operate up to 6500 rpm. Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. Never stretch the chain with a screwdriver. Check for clearance between the timing chain and block and between the chain and front cover before reassembly. Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break.
Timing Chain Included:Â Yes
Timing Chain Style:Â Single roller
Maximum Advance/Retard at Camshaft:Â 6 degree
Maximum Advance/Retard at Crankshaft:Â 6 degree
Cam Gear Included:Â Yes
Cam Gear Material:Â Billet steel
Crank Gear Included:Â Yes
Crank Gear Material:Â Billet steel
VVT Gear Included:Â No
Tensioner Included:Â No
Thrust Bearing Included:Â No
Bolts/Studs Included:Â No
Gaskets Included:Â No
Offset Bushings Included:Â No
Quantity:Â Sold as a set.
