EDELBROCK #7193 - Performer RPM Intake Manifold for Big-Block Chrysler RB
EDELBROCK #7193 - Performer RPM Intake Manifold for Big-Block Chrysler RB
Regular price
$367.95 USD
Regular price
Sale price
$367.95 USD
Unit price
/
per
We currently have 1 in stock.
Couldn't load pickup availability

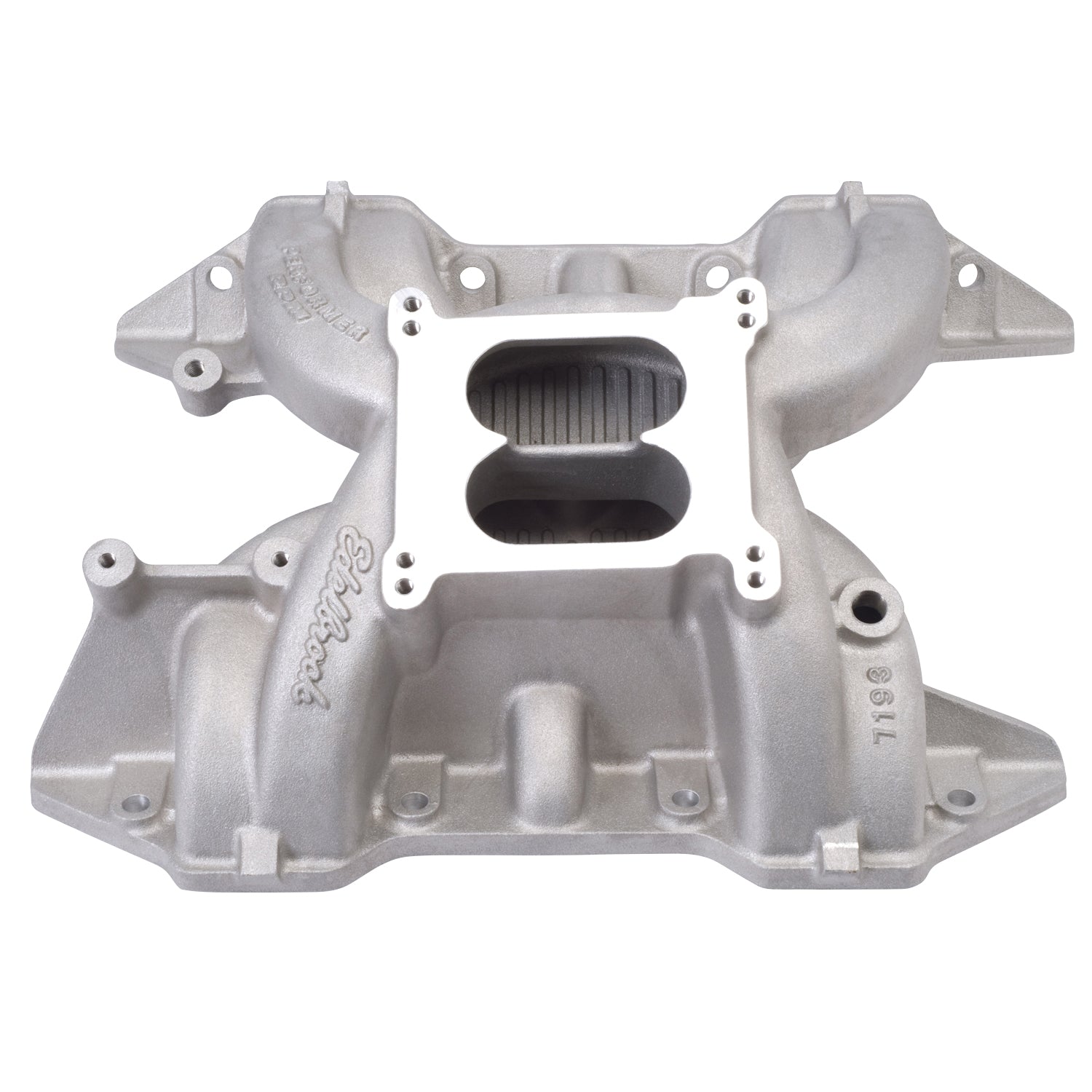

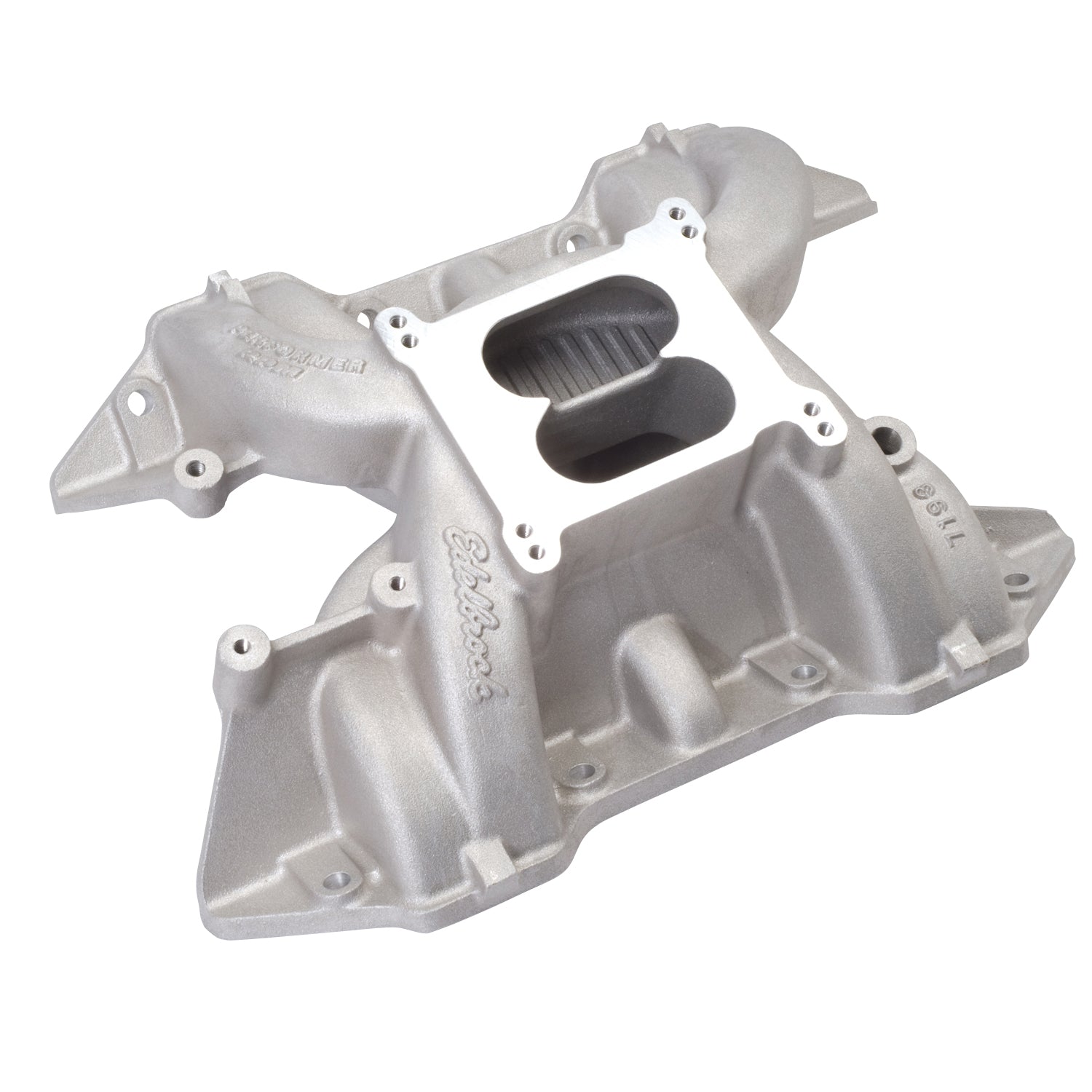

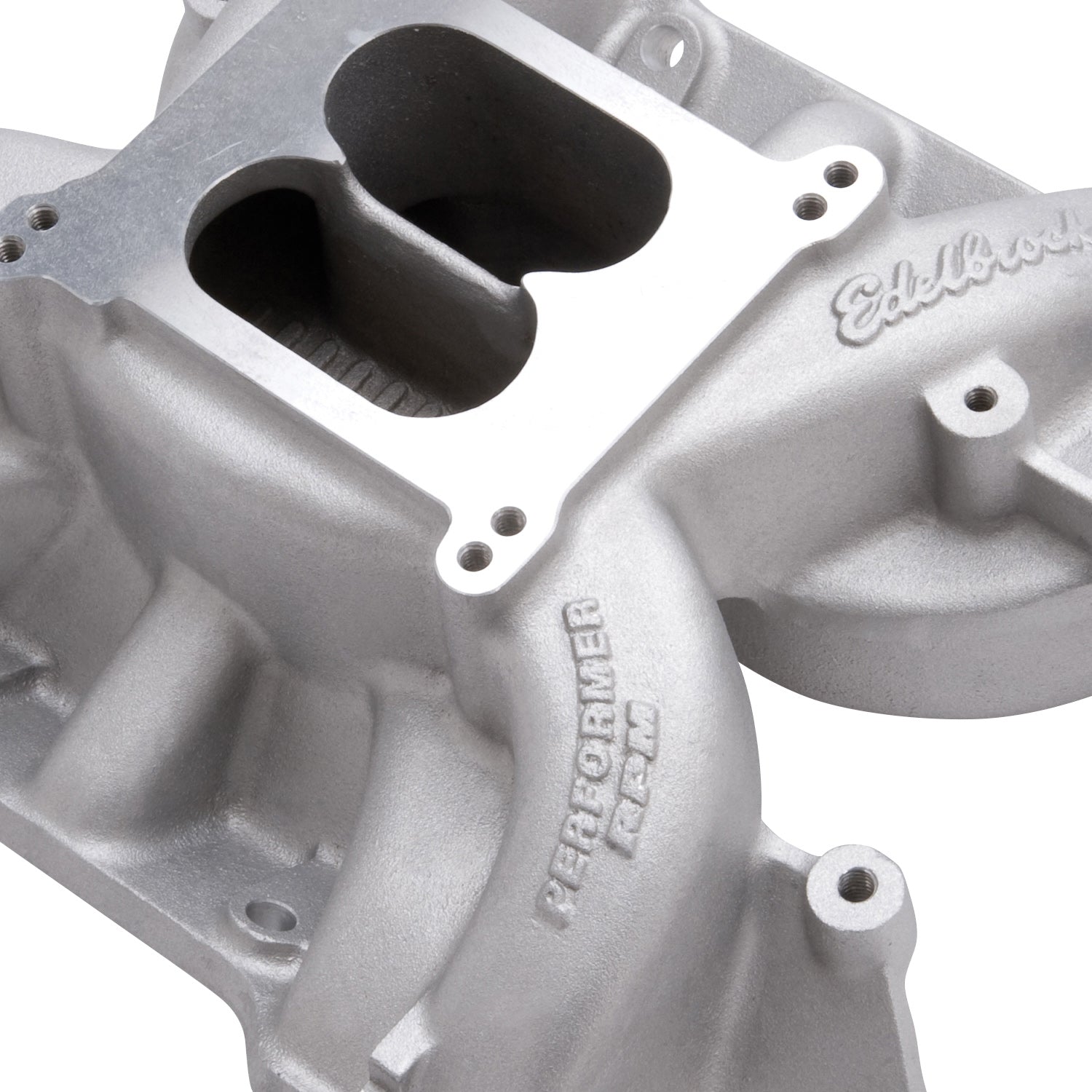

Edelbrock part #7193 Performer RPM 440 intake manifold is designed for 413-426-440 c.i.d. Chrysler V8 applications. The dual-plane design results in excellent low-rpm torque and outstanding high-rpm hp. For high-performance street/strip applications.
Intake Section Included:Â Complete
Engine Block Deck Height:Â Standard deck
Carburetor Quantity:Â One
Intake Style:Â Dual plane
Basic Operating RPM Range:Â 1,500-6,500
Intake Manifold Height:Â 5.350 in.
Intake Finish:Â Natural
Intake Material:Â Aluminum
EGR:Â No
Quantity:Â Sold individually.
Notes:Â Will not fit 1962-64 Max Wedge cylinder heads. Recommended intake gasket: Edelbrock #7225.; Manifold height: A-4.90", B-5.80"; Carb pad height: 5.35". Manifold is 1.7" taller than stock; Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use #1481 or #1843 throttle/transmission lever kit.; Port exit dimensions: 1.13" x 2.09"; Manifold measure 8.75" across block; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
