EDELBROCK

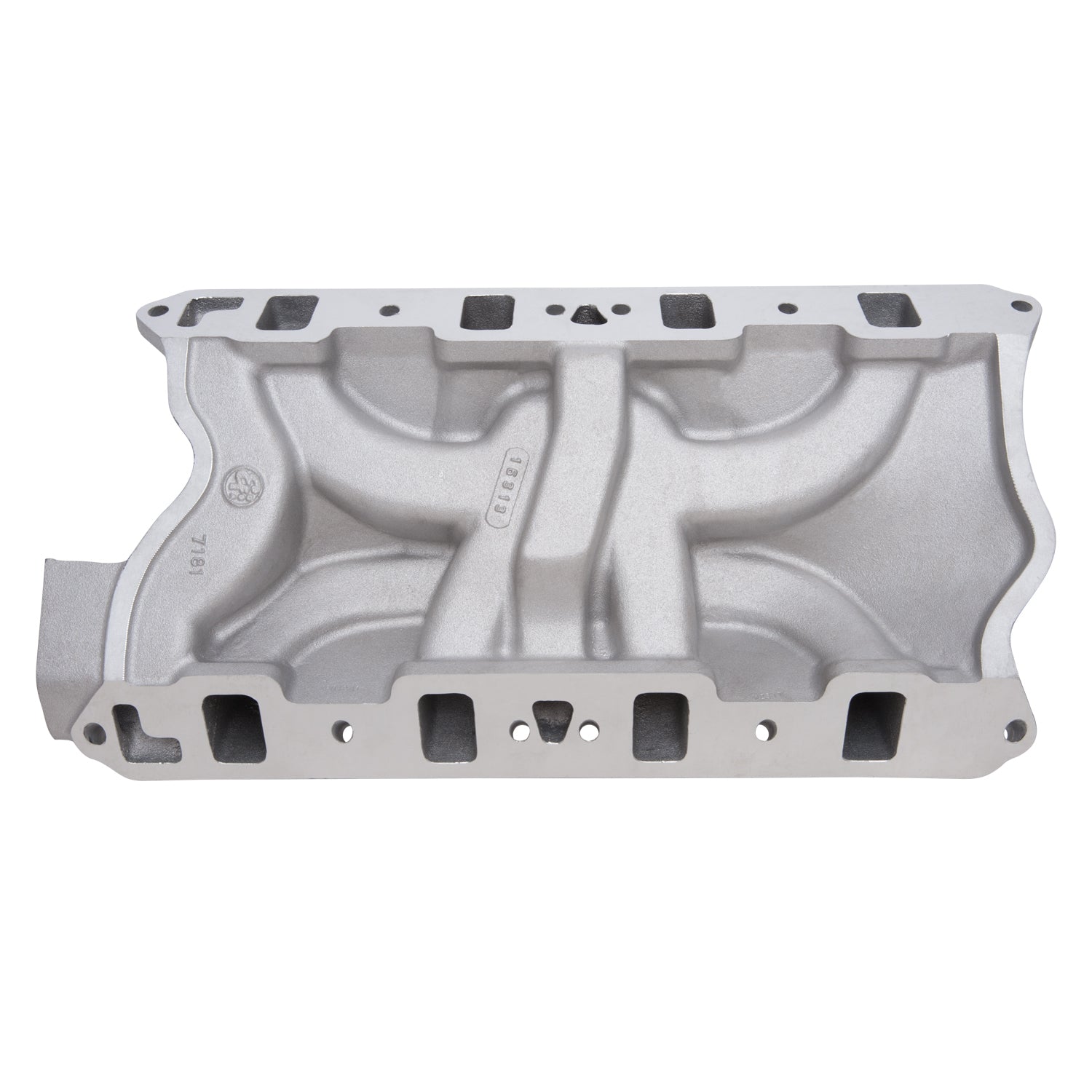

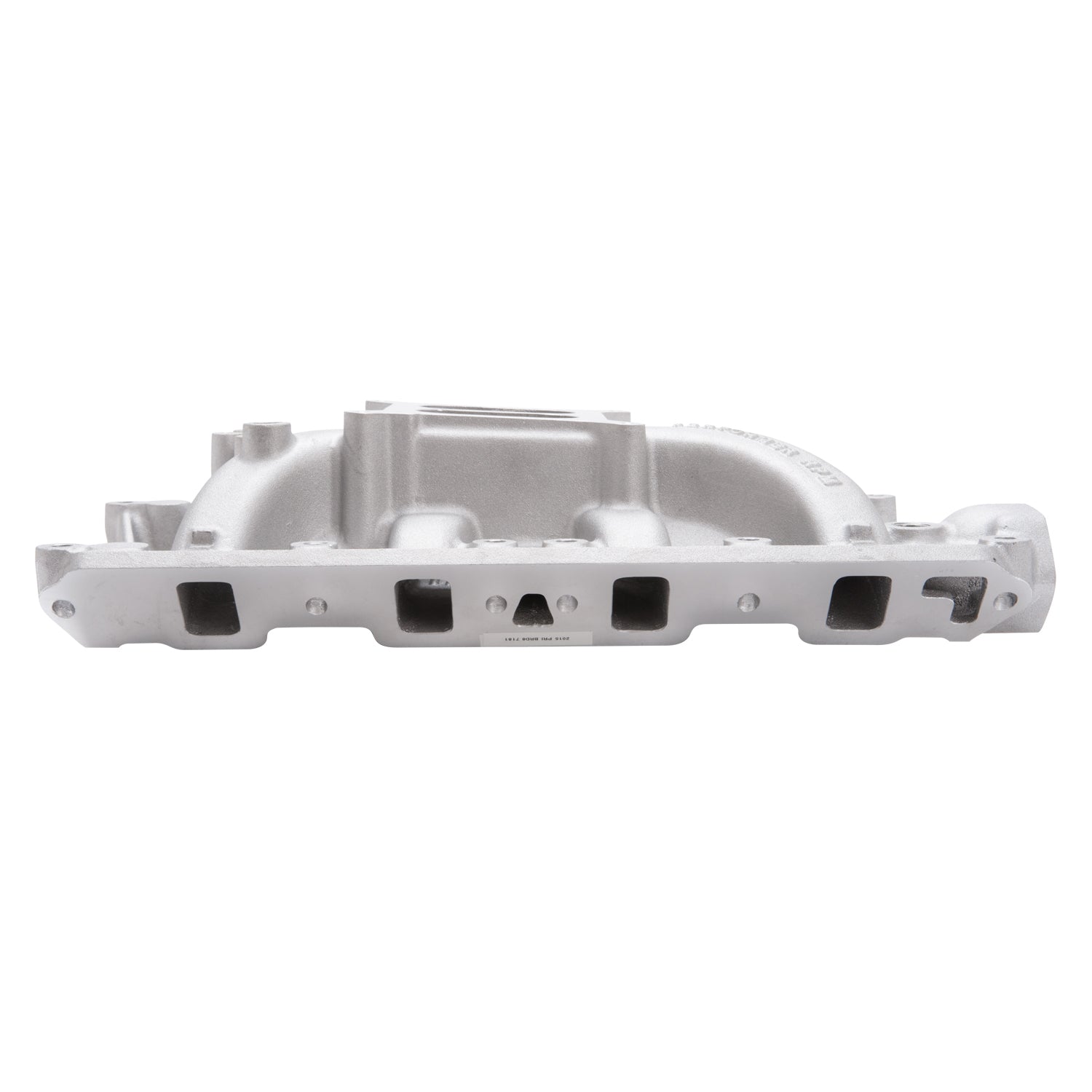

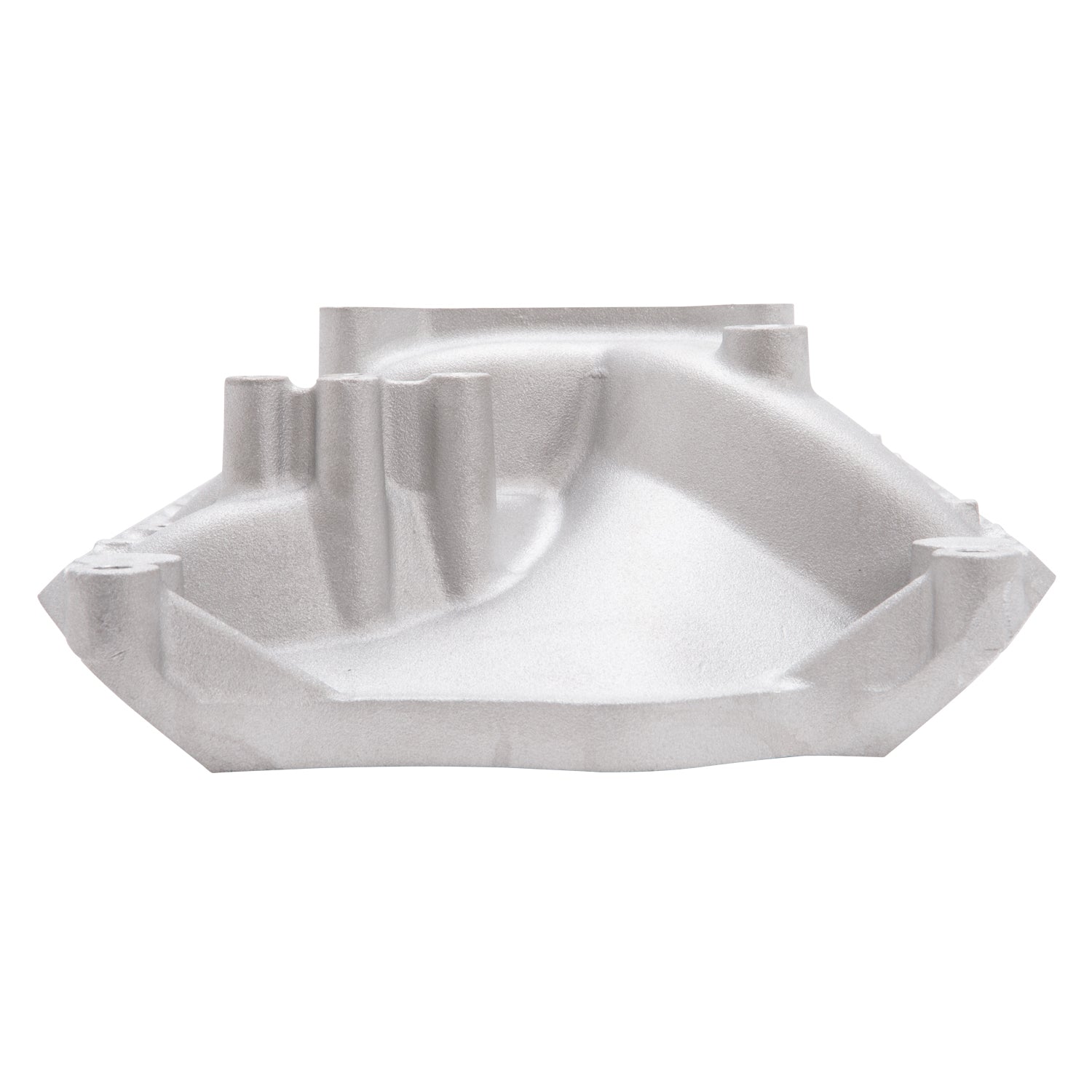

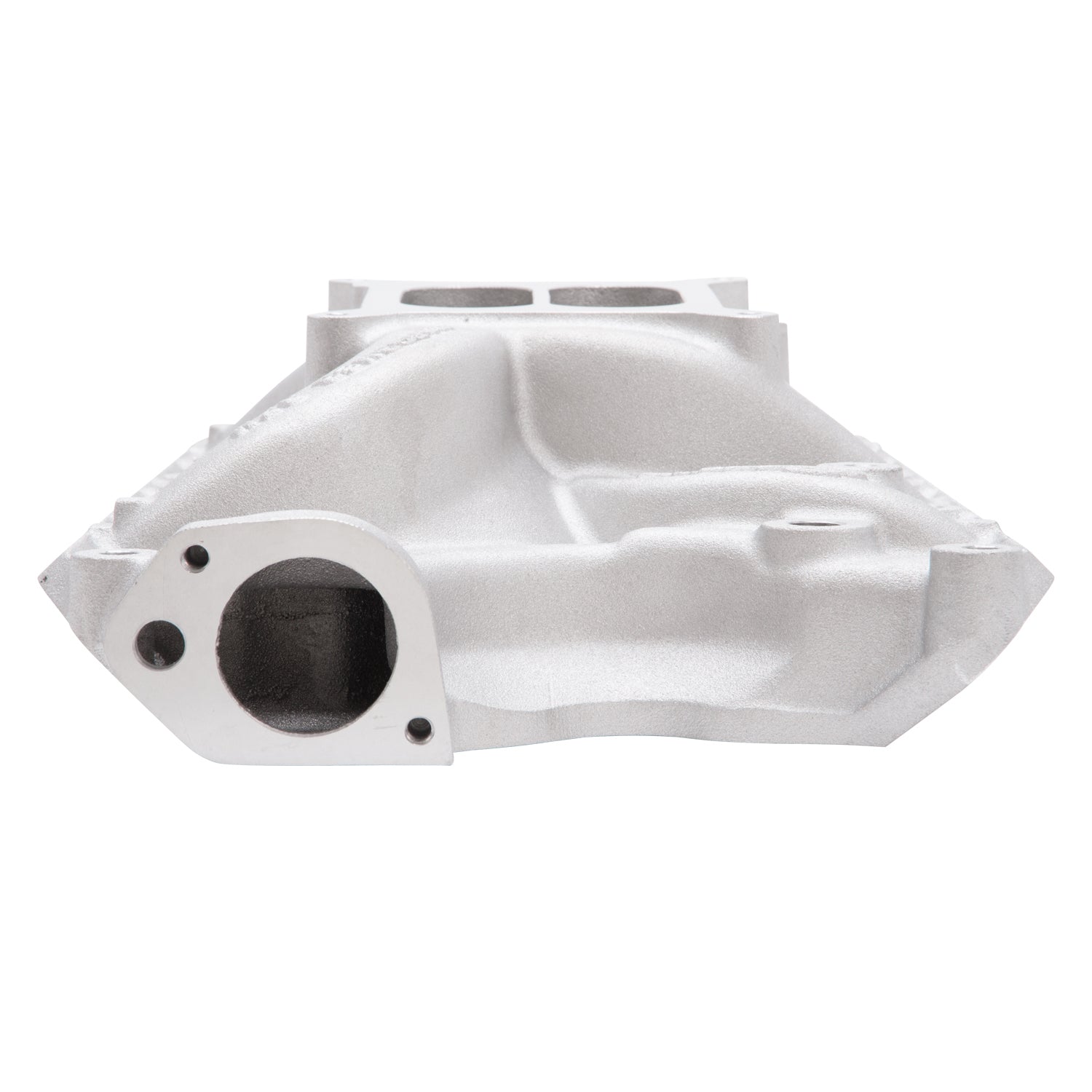

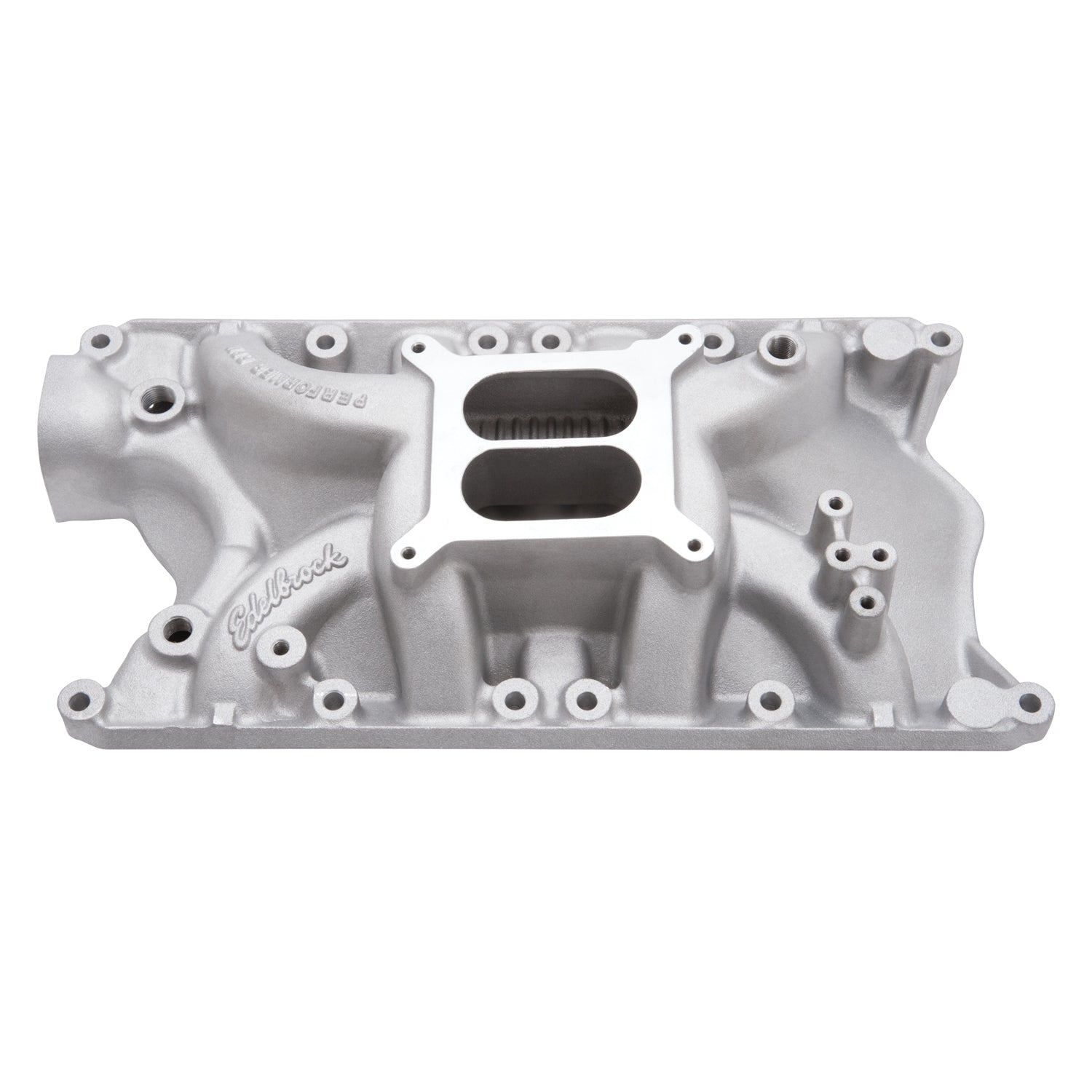

EDELBROCK #7181 PERFORMER RPM INTAKE MANIFOLD

EDELBROCK #7181 PERFORMER RPM INTAKE MANIFOLD

Regular price $384.95 USD
Regular price Sale price $384.95 USD
Sale Sold out
We currently have 3 in stock.

Edelbrock part #7181 Performer RPM 351W intake manifold is designed for 1969 and later 351 Windsor Ford V8 high-performance engines with Edelbrock Performer RPM cylinder heads, modified OEM cylinder heads or equivalent. The dual-plane design offers good throttle response with excellent top-end power for the street. Includes bosses for rear water crossover. Will fit 1964-1/2 to 1970 Mustangs. Will not fit under stock hood of 1974-78 or 1979-95 Mustangs. Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with Lokar bracket SRK-4000

Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Dual plane
Basic Operating RPM Range: 1,500-6,500
Intake Manifold Height: 5.300 in.
Intake Finish: Natural
Intake Material: Aluminum
EGR: No
Quantity: Sold individually.
Notes: Recommended intake gasket: Use 12-bolt intake gasket set Edelbrock #7220 recommended. For van installations use OEM Ford "van" intake gasket set; will fit early 16-bolt head with Ford 16-bolt intake gasket set.; Manifold height: A-4.30", B-5.30"; Carb pad height: 4.80"; Carb recommendations: Edelbrock Thunder AVS or Performer Series 650-800 cfm. For automatic transmissions use #1483 and #1491 or #1844.; Port exit dimensions: 1.12" x 1.86".; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
