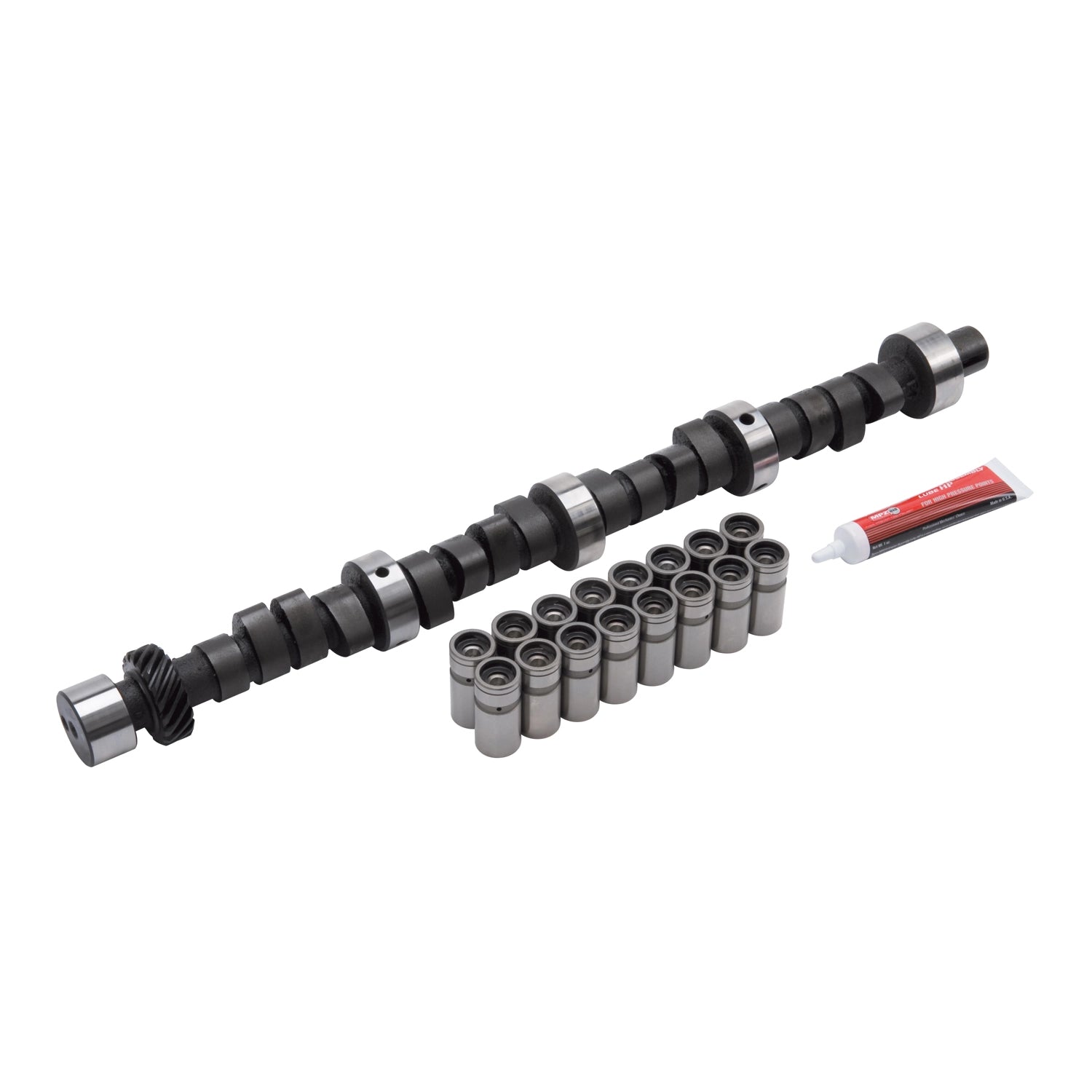

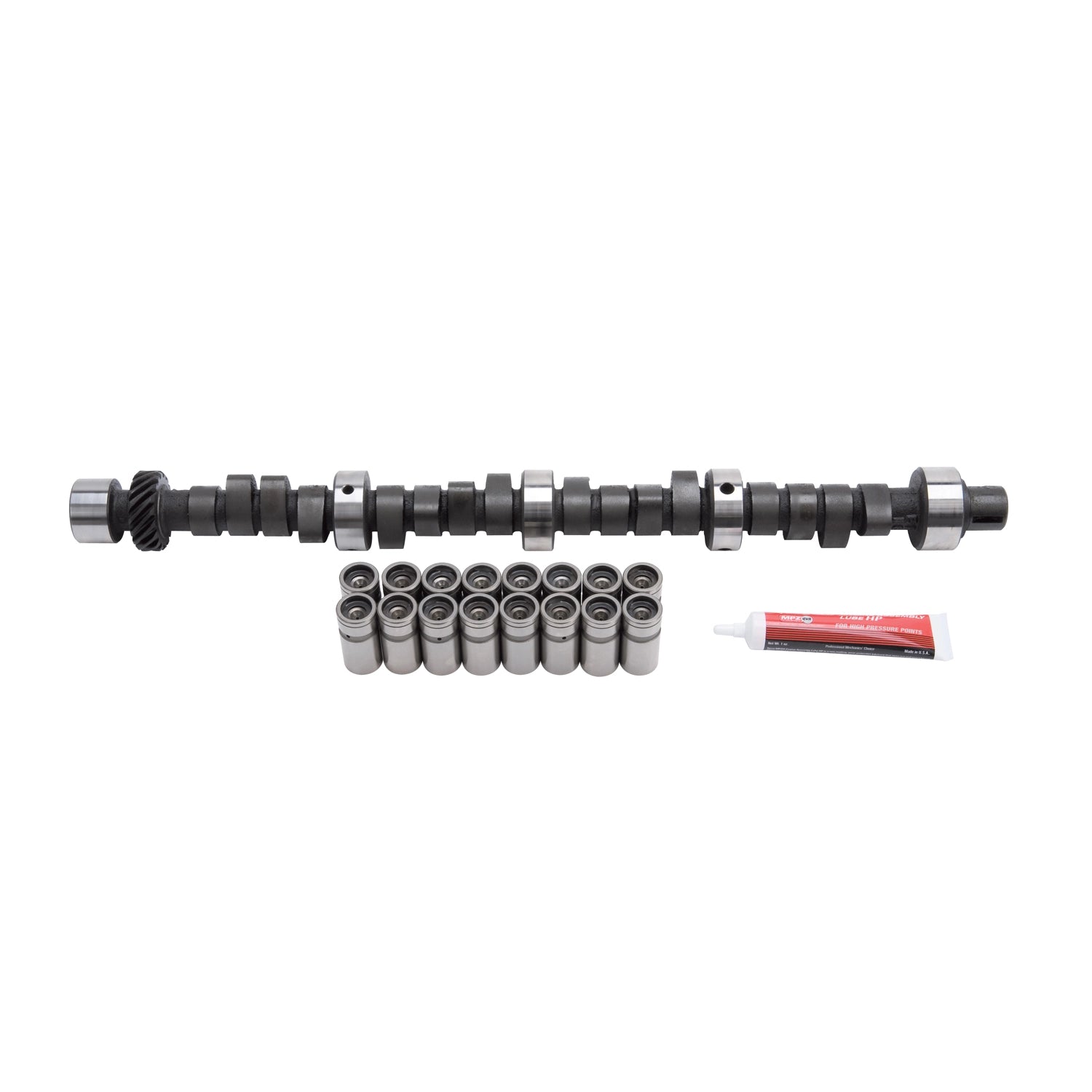

EDELBROCK #7177 - Camshaft & Lifter Kit for Small-Block Chrysler - Hydraulic Flat Tappet

EDELBROCK #7177 - Camshaft & Lifter Kit for Small-Block Chrysler - Hydraulic Flat Tappet

Regular price $433.95 USD
Regular price Sale price $433.95 USD
Sale Sold out
We currently have 1 in stock.
Edelbrock part #7177 Performer RPM Camshaft is designed for small-block Chrysler 318-340-360 V-8 applications. This Edelbrock cam kit produced 417 HP & 397 ft-lbs. of torque when used with #7176 intake and #60779 cylinder heads on a 340 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft. Camshaft Specifications: - Duration @ .050 Intake: 234 degrees - Duration @ .050 Exhaust: 244 degrees - Lift @ Valve Intake: .488" - Lift @ Valve Exhaust: .510" - Lobe Separation: 112 Degrees - Intake Centerline: 107 Degrees
Cam Style: Hydraulic flat tappet
Basic Operating RPM Range: 1,500-6,500
Camshaft Use: Street/Strip
Intake Duration at 050 inch Lift: 234
Exhaust Duration at 050 inch Lift: 244
Duration at 050 inch Lift: 234 int./244 exh.
Advertised Intake Duration: 308
Advertised Exhaust Duration: 318
Advertised Duration: 308 int./318 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.488 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.510 in.
Valve Lift with Factory Rocker Arm Ratio: 0.488 int./0.510 exh.
Lobe Separation (degrees): 112
Computer-Controlled Compatible: No
Lifters Included: Yes
Lifter Style: Hydraulic flat tappet
Valve Springs Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Timing Chain and Gears Included: No
Assembly Lubricant Included: Yes
Pushrods Included: No
Rocker Arms Included: No
Gaskets Included: No
Valve Springs Required: Yes
Quantity: Sold as a kit.
Notes: Although the advertised RPM range for these camshafts is 1,500 to 6,500 rpm, for best performance we recommend a minimum 3,000 rpm stall torque converter be used in applications with automatic transmissions.
