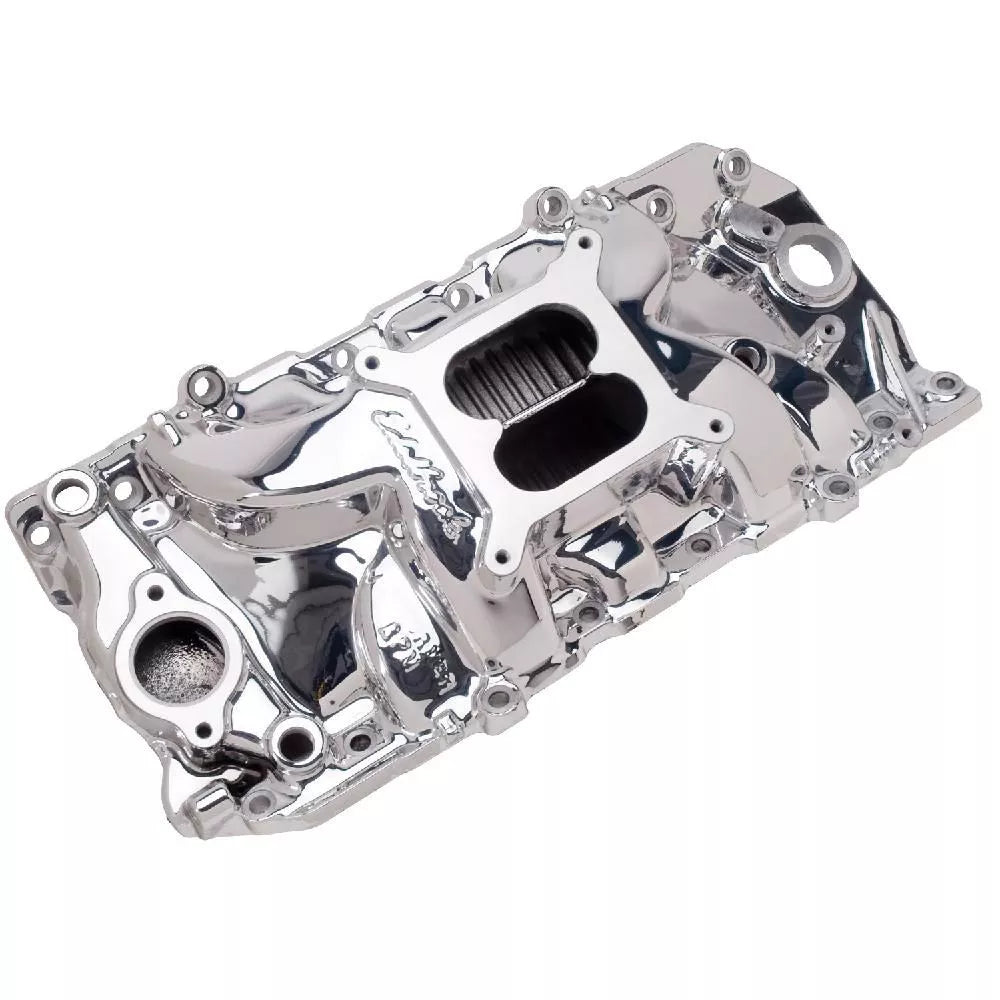

EDELBROCK #71614 - Performer RPM Oval-Port Intake Manifold for Big-Block Chevy - EnduraShine
EDELBROCK #71614 - Performer RPM Oval-Port Intake Manifold for Big-Block Chevy - EnduraShine
Regular price
$765.95 USD
Regular price
Sale price
$765.95 USD
Unit price
/
per
We currently have 1 in stock.
Couldn't load pickup availability
Edelbrock part #71614 Performer RPM 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier). This dual-plane high rise intake manifold delivers outstanding horsepower while maintaining good torque and driveability. No provisions for exhaust heated chokes. Accepts late-model waterneck, air-conditioning, alternator and HEI equipment.
Intake Section Included:Â Complete
Engine Block Deck Height:Â Standard deck
Carburetor Quantity:Â One
Intake Style:Â Dual plane
Basic Operating RPM Range:Â 1,500-6,500
Intake Manifold Height:Â 5.220 in.
Intake Finish:Â EnduraShine
Intake Material:Â Aluminum
EGR:Â No
Quantity:Â Sold individually.
Notes:Â Recommended intake gasket: Edelbrock #7203; Manifold height: A-4.45", B-6.0; Carb pad height: 5.22"; Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78.; Port exit dimensions: 1.60"w x 1.94"t; Will not fit under stock hood of Corvette, 1964-67 Chevelle, or 1967-81 Camaro.; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
