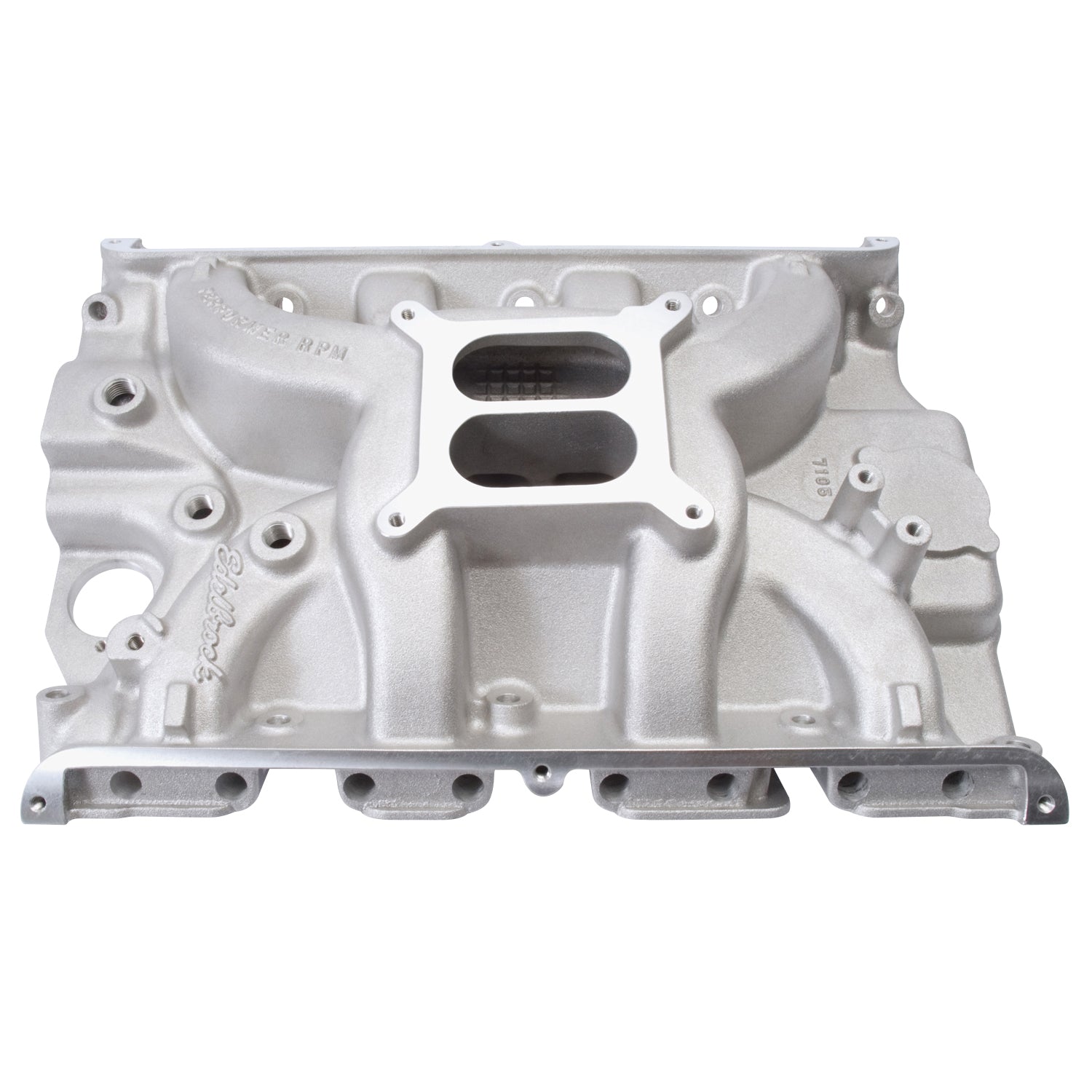

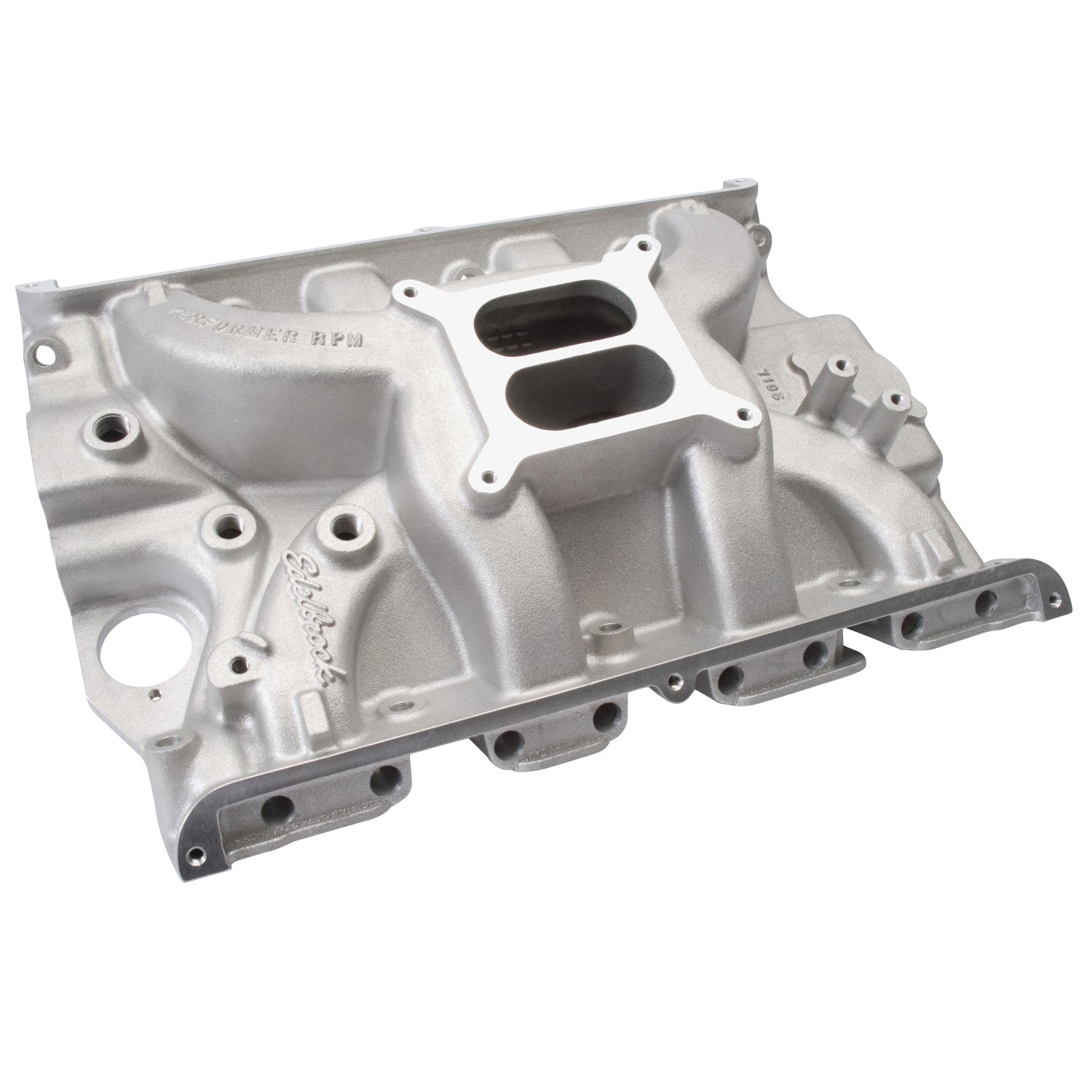

Edelbrock part #7105 Performer RPM FE intake manifold is designed for high-performance's street 390-406-410-427-428 c.i.d. Ford FE V8's with standard 390-428 c.i.d., 427 low/medium-rise or Edelbrock Performer RPM FE heads. The dual-plane constant cross-sectional area design builds low and mid- range acceleration while optimized runner paths make exceptional top-end horsepower. Has provision for adding the PCV or breather flange at rear. No exhaust crossover passage.
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Dual plane
Basic Operating RPM Range: 1,500-6,500
Intake Manifold Height: 5.460 in.
Intake Finish: Natural
Intake Material: Aluminum
Quantity: Sold individually.
Notes: Recommended intake gasket: Edelbrock #7224; Manifold height: A-4.89", B-6.04"; Carb pad height: 5.46"; Carb recommendations: Edelbrock Thunder Series AVS or Performer Series 650-800 cfm. For automatic transmissions use #1483 or #1844; Port exit dimensions: 1.16" x 1.97"; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum
