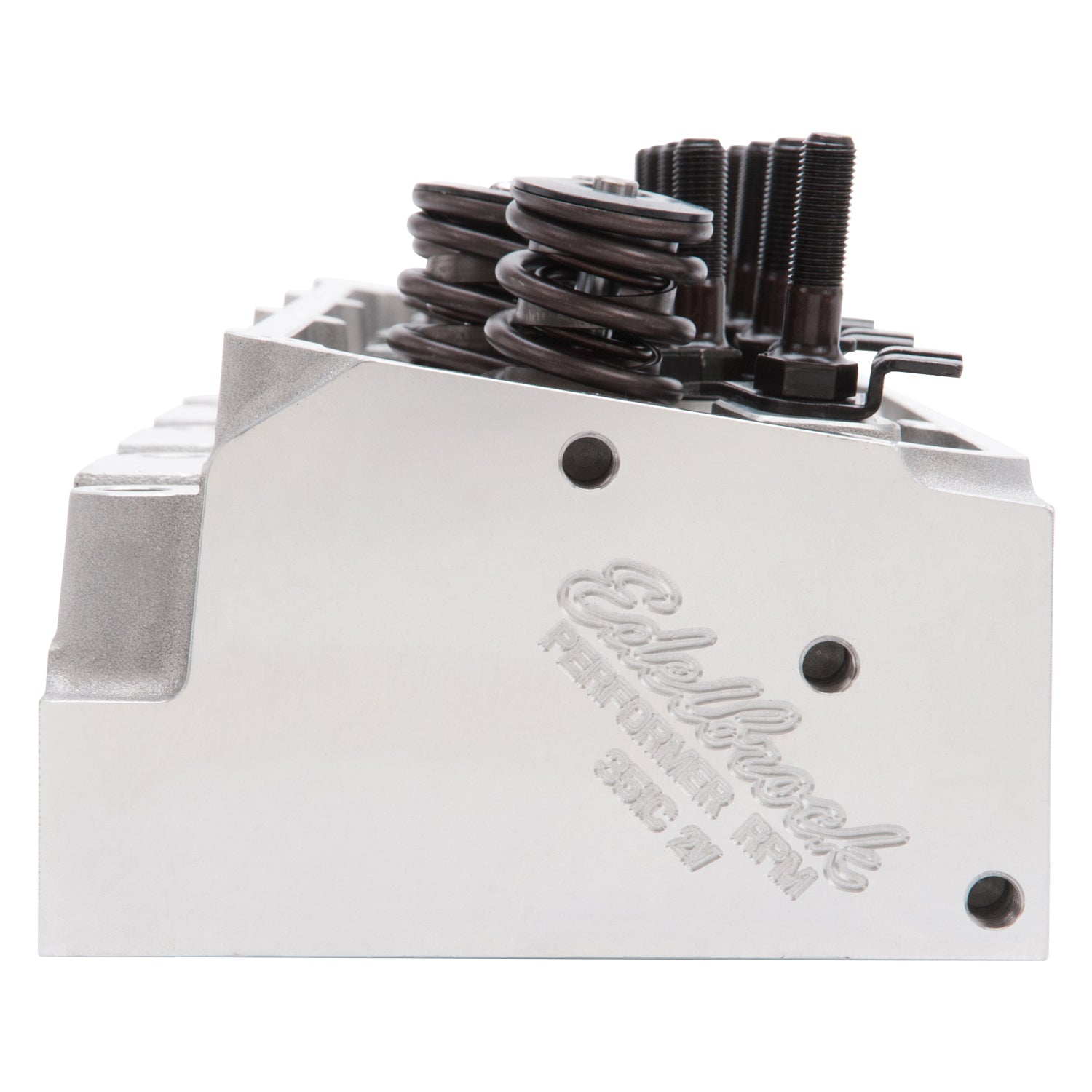

EDELBROCK #61625 - Performer RPM Cylinder Head for Ford 351C - Hydraulic Roller

$1,238.95 USD

Sale Sold out

Product variants

We currently have 2 in stock.

Quantity

The Edelbrock #61625 Performer RPM cylinder head is designed for use with 351C, 351M & 400M Ford engine applications. The Edelbrock #61625 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Combustion Chamber Volume (cc): 60

Intake Runner Volume (cc): 190cc

Exhaust Runner Volume (cc): 90cc

Cylinder Head Style: Assembled

Cylinder Head Material: Aluminum

Intake Port Shape: Rectangular

Intake Valve Diameter (in.): 2.050 in.

CNC-Machined Combustion Chamber: No

CNC-Machined Intake Runner: No

CNC-Machined Exhaust Runner: No

Combustion Chamber Style: Kidney

Intake Port Location: Standard

Exhaust Port Shape: Square

Exhaust Port Location: Standard

Intake Valves Included: Yes

Exhaust Valves Included: Yes

Exhaust Valve Diameter (in.): 1.600 in.

Valve Springs Included: Yes

Maximum Valve Lift (in.): 0.580 in.

Camshaft Style: Hydraulic roller

Outside Diameter of Outer Spring (in.): 1.540 in.

Damper Spring Included: Yes

Number of Springs Per Valve: Dual

Retainers Included: Yes

Retainer Material: Chromoly steel

Locks Included: Yes

Lock Style: 7 degree

Valve Stem Seals Included: Yes

Valve Stem Seal Style: Positive stop

Rocker Arm Studs Included: Yes

Rocker Arm Nut Thread Size: 7/16 in.-20

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: Yes

Guideplate Pushrod Size: 5/16 in.

Valve Cover Mounting Style: Perimeter bolt

Accessory Bolt Holes Drilled: Yes

Intake Valve Angle: 9.5

Valve Guides Included: Yes

Valve Guide Material: Manganese bronze

Valve Seats Machined: Yes

Valve Seat Machine Style: 3-angle

Valve Seat Material: Ductile iron

Cylinder Head Color: Natural

Steam Holes Drilled: No

Oiling Style: Through pushrod

Machined for O-Ring: No

Heat Crossover: No

Quantity: Sold individually.

Notes: Match with Edelbrock head gasket sets.; Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using.; Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC).; Deck thickness: 5/8"; Rocker stud diameter: 7/16"; Pushrod diameter: 5/16" (width of slot in guide plate).; Valve sizes are recommended, not maximum.; EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS; Very streetable 190cc intake runners; 2.05" intake and 1.60" exhaust valves; "Compact charge" kidney shape combustion chamber design; Intake and exhaust ports based on 2V design; Optimized spark plug location provides improved header clearance; Match with Edelbrock RPM Air-Gap manifold #7564
