EDELBROCK

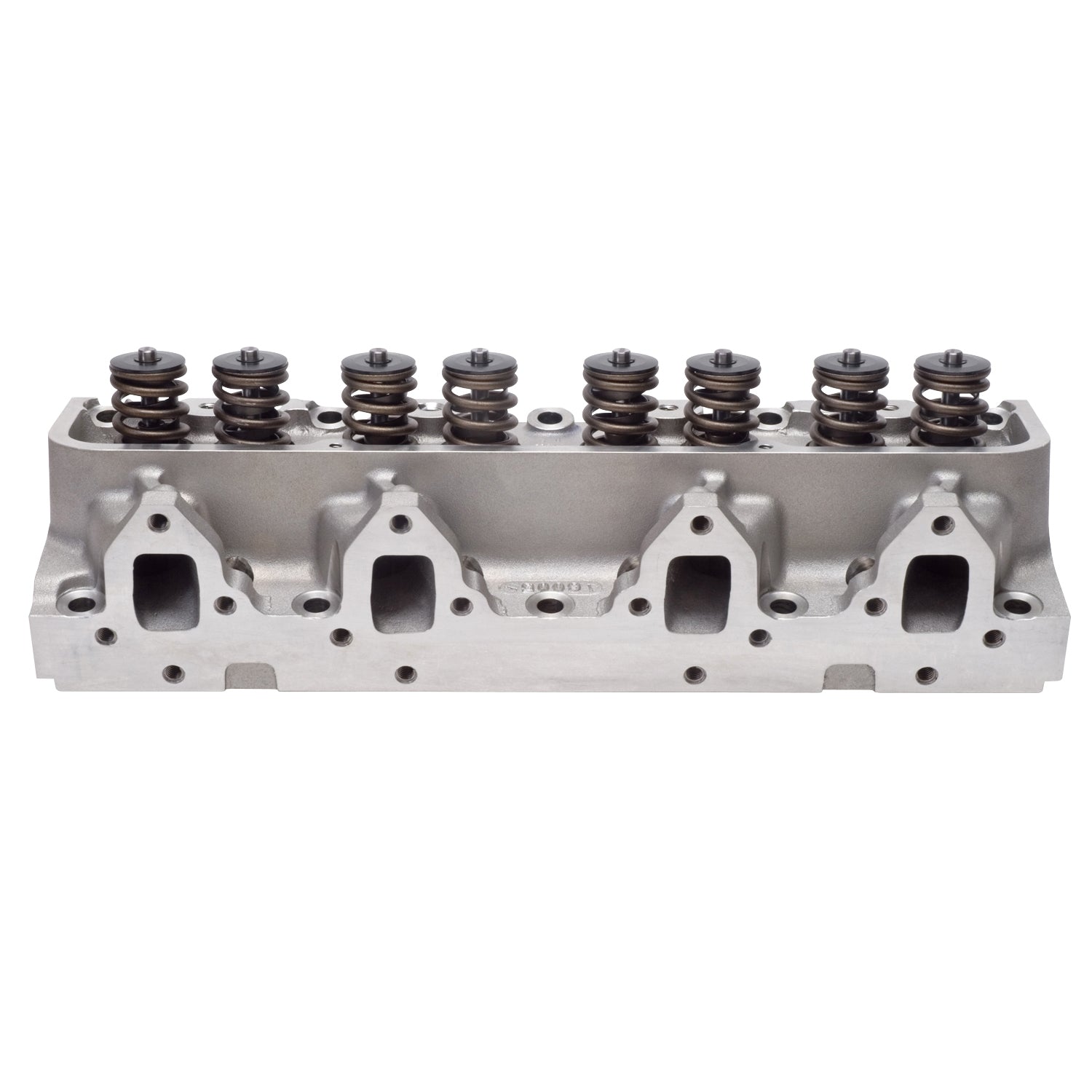

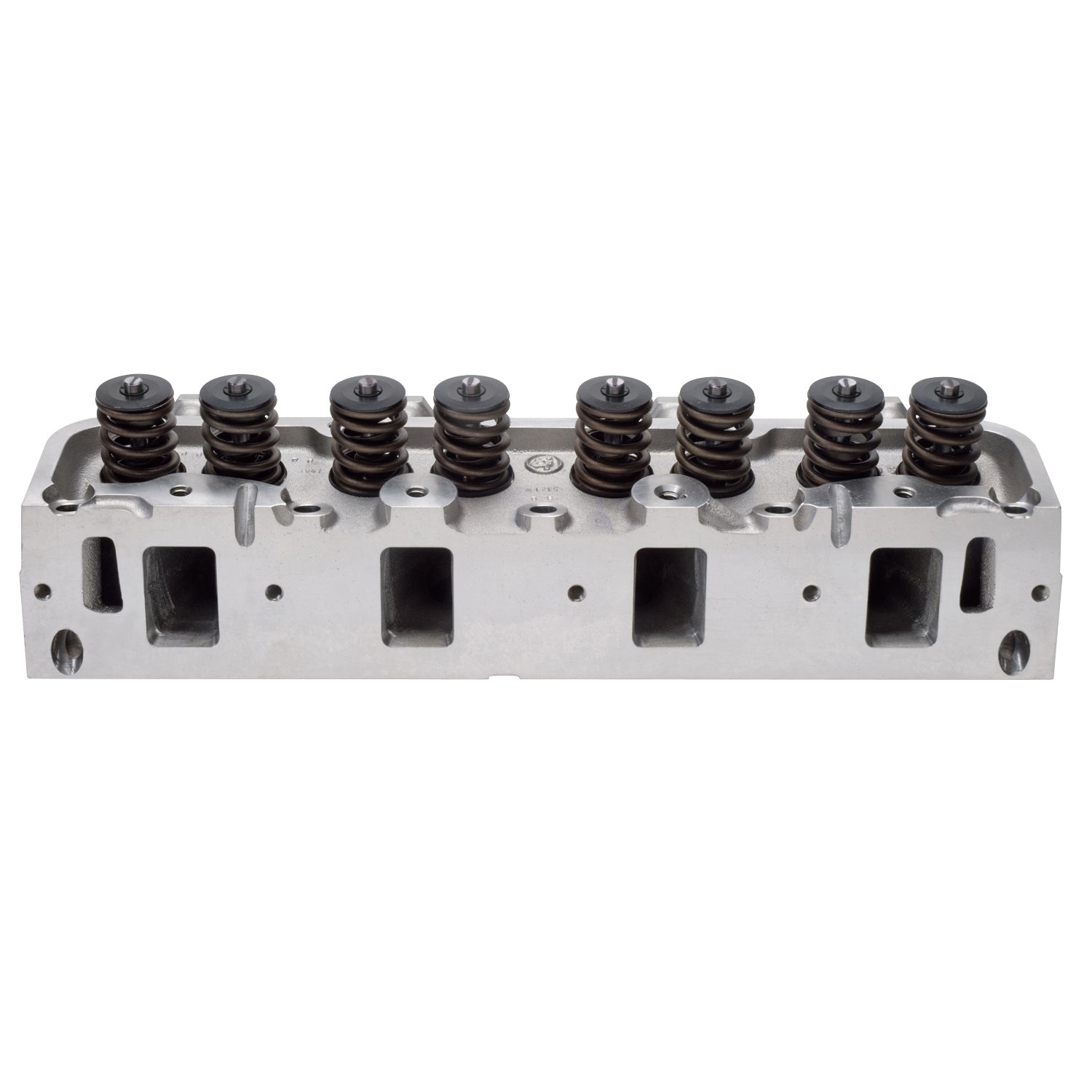

EDELBROCK #60069 - Performer RPM Cylinder Head for Ford FE - Hydraulic Flat Tappet

$908.95 USD

Sale Sold out

Product variants

We currently have 2 in stock.

Quantity

The Edelbrock #60069 Performer RPM cylinder head is designed for use with 1961-76 390-427-428 Ford applications. Edelbrock Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Combustion Chamber Volume (cc): 72

Intake Runner Volume (cc): 170cc

Exhaust Runner Volume (cc): 125cc

Cylinder Head Style: Assembled

Cylinder Head Material: Aluminum

Intake Port Shape: Rectangular

Intake Valve Diameter (in.): 2.090 in.

CNC-Machined Combustion Chamber: No

CNC-Machined Intake Runner: No

CNC-Machined Exhaust Runner: No

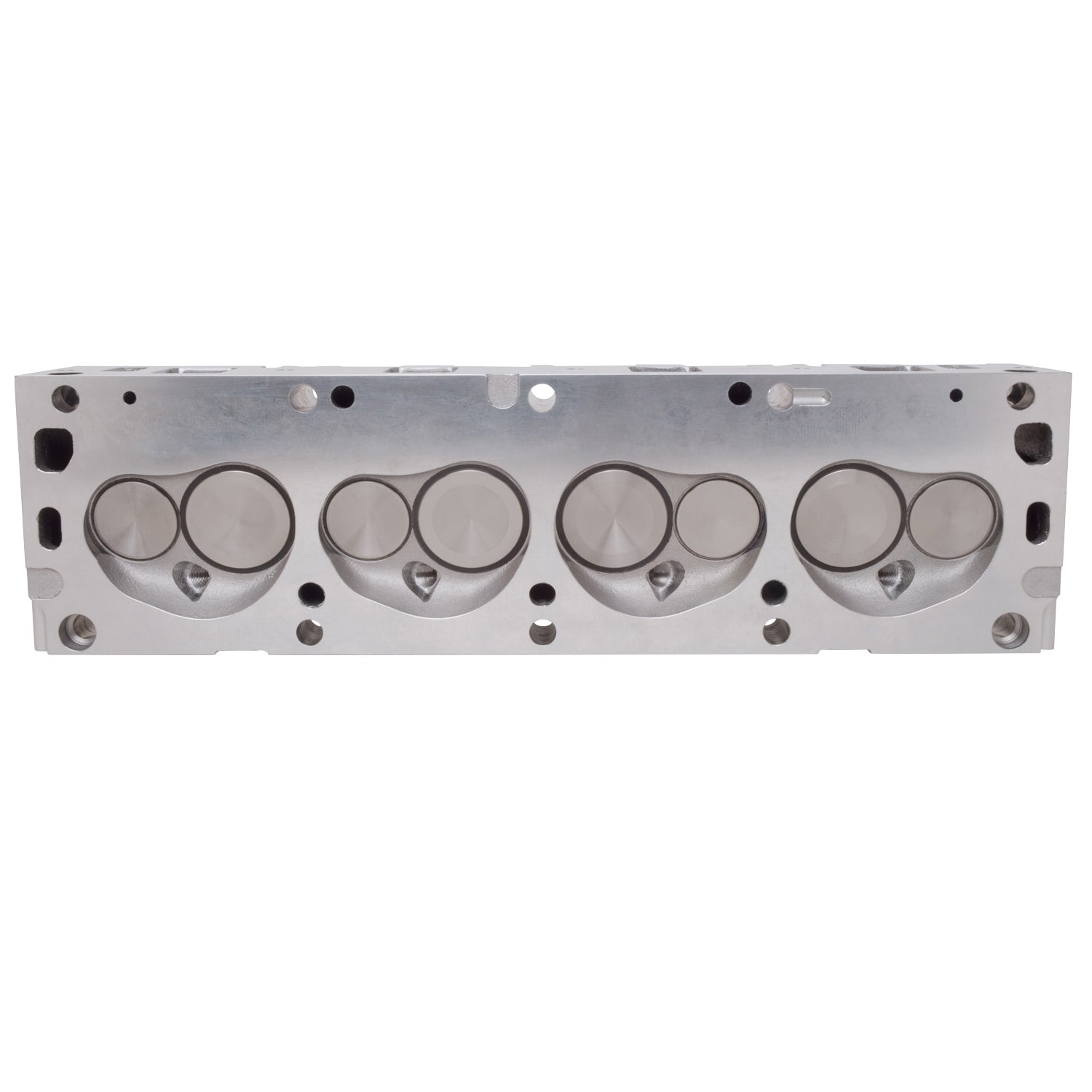

Combustion Chamber Style: Kidney

Intake Port Location: Standard

Exhaust Port Shape: Square

Exhaust Port Location: Standard

Intake Valves Included: Yes

Exhaust Valves Included: Yes

Exhaust Valve Diameter (in.): 1.660 in.

Valve Springs Included: Yes

Maximum Valve Lift (in.): 0.600 in.

Camshaft Style: Hydraulic flat tappet

Outside Diameter of Outer Spring (in.): 1.550 in.

Damper Spring Included: Yes

Number of Springs Per Valve: Single

Retainers Included: Yes

Retainer Material: Steel

Locks Included: Yes

Lock Style: 7 degree

Valve Stem Seals Included: Yes

Valve Stem Seal Style: Positive stop

Rocker Arm Studs Included: No

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: No

Accessory Bolt Holes Drilled: Yes

Intake Valve Angle: 13

Valve Guides Included: Yes

Valve Guide Material: Manganese bronze

Valve Seats Machined: Yes

Valve Seat Machine Style: 3-angle

Valve Seat Material: Ductile iron

Cylinder Head Color: Natural

Steam Holes Drilled: No

Oiling Style: Through head

Machined for O-Ring: No

Heat Crossover: No

Quantity: Sold individually.

Notes: Valve springs are recommended for flat tappet style camshafts. Edelbrock stud kit EDL-6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. Heads have the 16-bolt 428 Cobra Jet exhaust flange bolt pattern.

PDF-Installation Instructions

View full details
