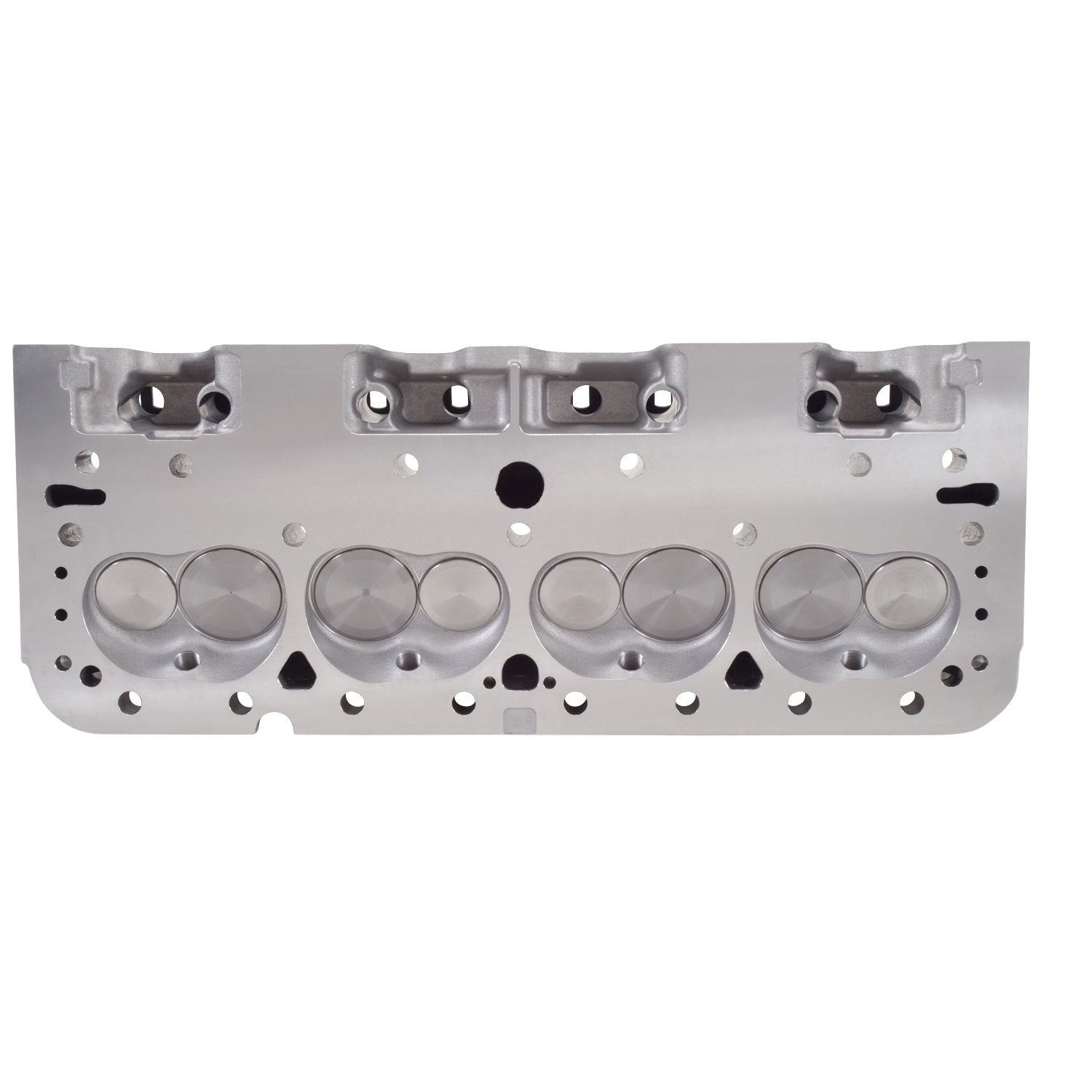

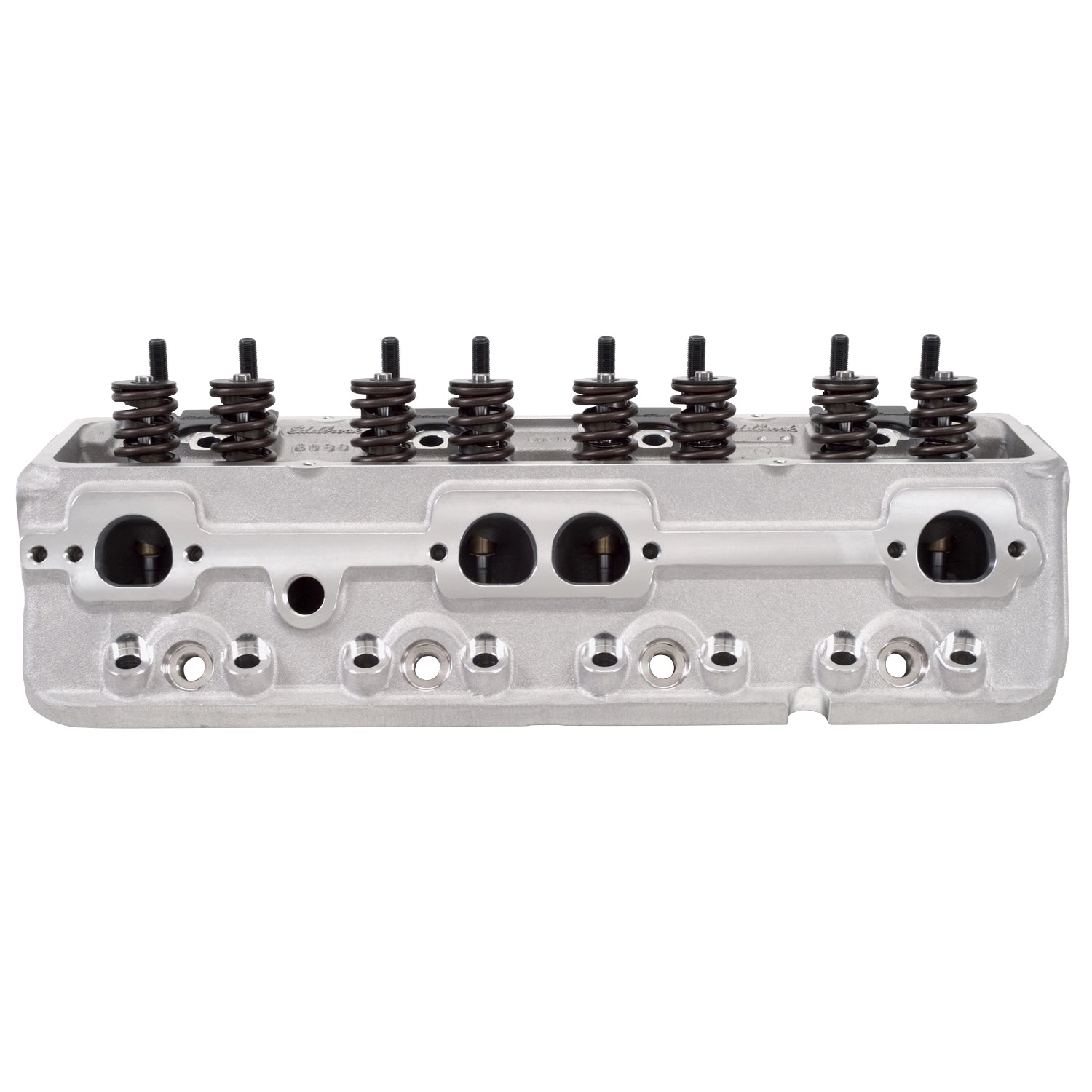

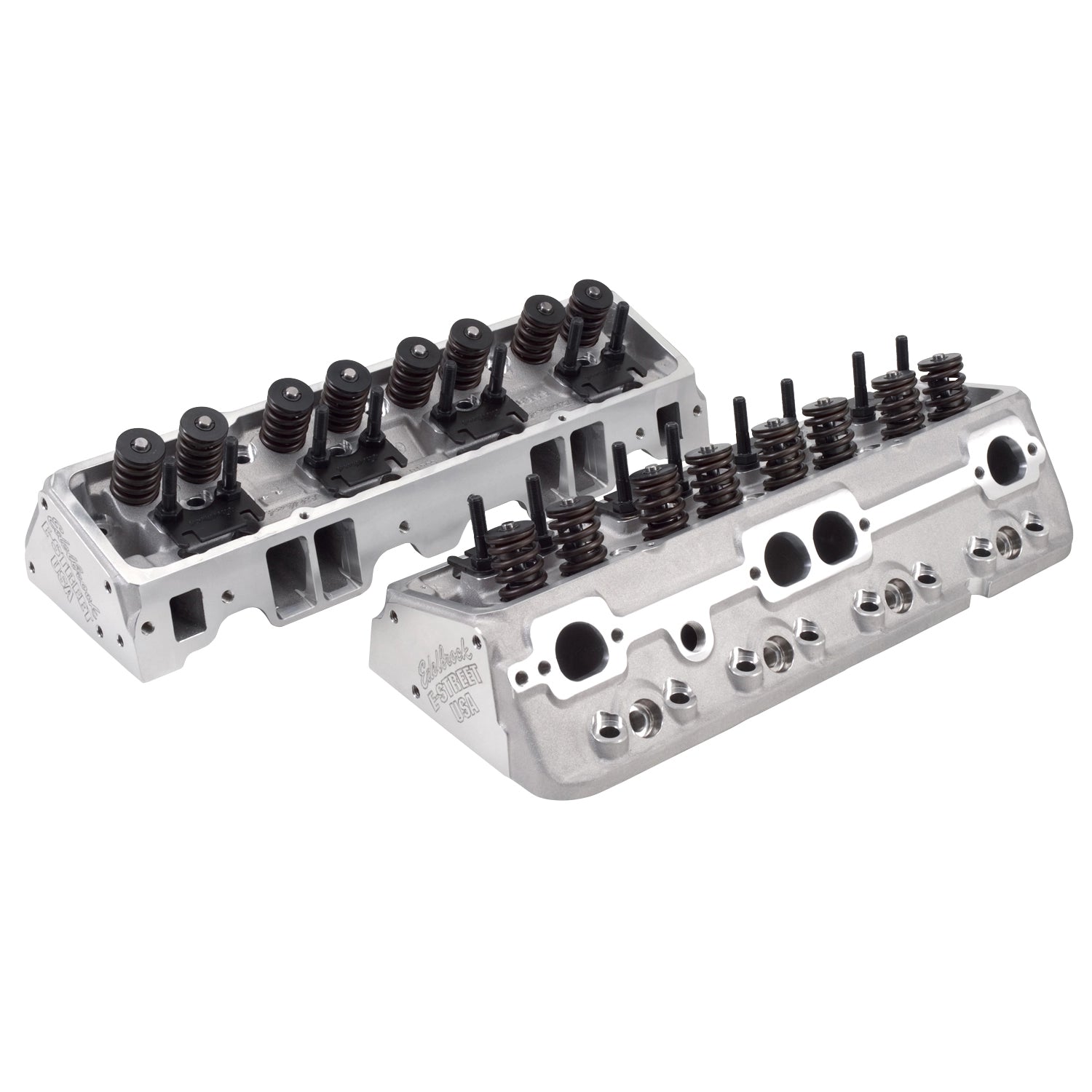

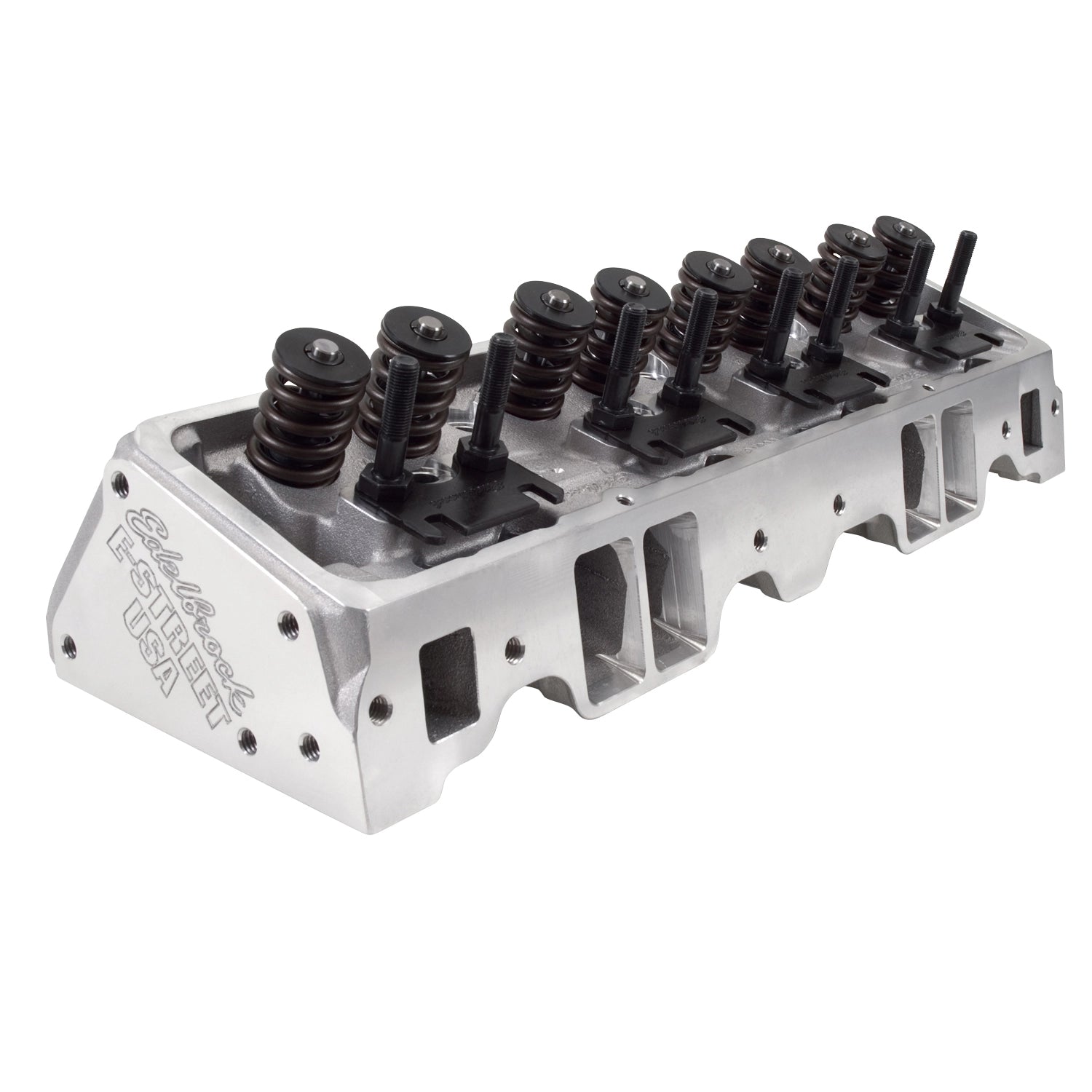

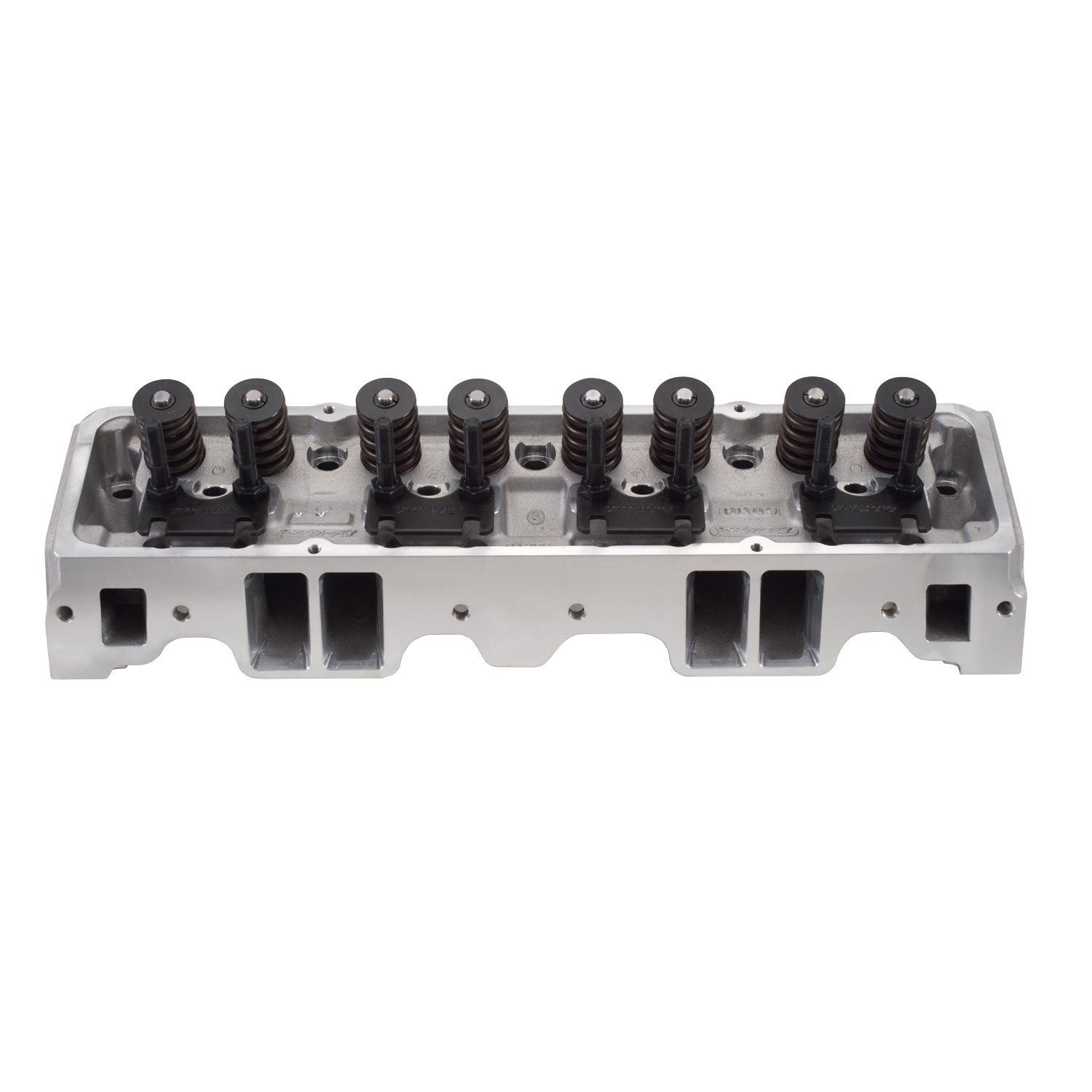

EDELBROCK #5089 - E-Street Cylinder Heads for Small-Block Chevy - Hydraulic Flat Tappet

$1,193.95 USD

Sale Sold out

Product variants

We currently have 2 in stock.

Quantity

The Edelbrock #5089 E-Street cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

Combustion Chamber Volume (cc): 64

Intake Runner Volume (cc): 185cc

Exhaust Runner Volume (cc): 60cc

Cylinder Head Style: Assembled

Cylinder Head Material: Aluminum

Intake Port Shape: Rectangular

Intake Valve Diameter (in.): 2.020 in.

CNC-Machined Combustion Chamber: No

CNC-Machined Intake Runner: No

CNC-Machined Exhaust Runner: No

Combustion Chamber Style: Kidney

Intake Port Location: Standard

Exhaust Port Shape: Square

Exhaust Port Location: Standard

Spark Plug Style: Straight

Intake Valves Included: Yes

Exhaust Valves Included: Yes

Exhaust Valve Diameter (in.): 1.600 in.

Valve Springs Included: Yes

Maximum Valve Lift (in.): 0.550 in.

Camshaft Style: Hydraulic flat tappet

Outside Diameter of Outer Spring (in.): 1.460 in.

Damper Spring Included: Yes

Number of Springs Per Valve: Single

Retainers Included: Yes

Retainer Material: Steel

Locks Included: Yes

Lock Style: 7 degree

Valve Stem Seals Included: Yes

Valve Stem Seal Style: Umbrella

Rocker Arm Studs Included: Yes

Rocker Arm Nut Thread Size: 3/8 in.-24

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: Yes

Guideplate Pushrod Size: 5/16 in.

Valve Cover Mounting Style: Perimeter bolt

Accessory Bolt Holes Drilled: Yes

Intake Valve Angle: 23

Exhaust Valve Angle: 23

Valve Guides Included: Yes

Valve Guide Material: Manganese bronze

Valve Seats Machined: Yes

Valve Seat Machine Style: 3-angle

Valve Seat Material: Powdered metal

Cylinder Head Color: Natural

Steam Holes Drilled: No

Oiling Style: Through pushrod

Machined for O-Ring: No

Heat Crossover: No

Quantity: Sold as a pair.

PDF-Installation Instructions
