EDELBROCK

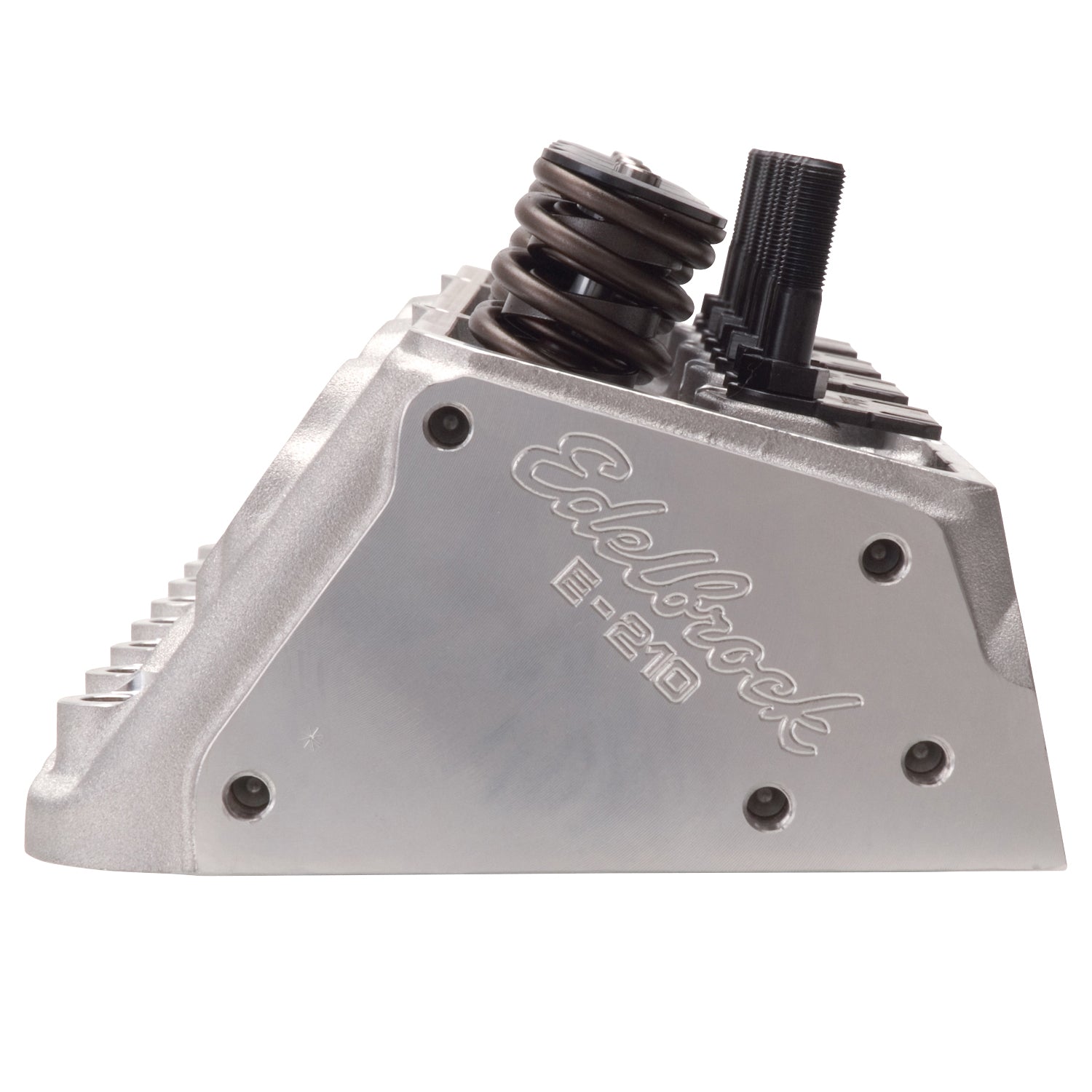

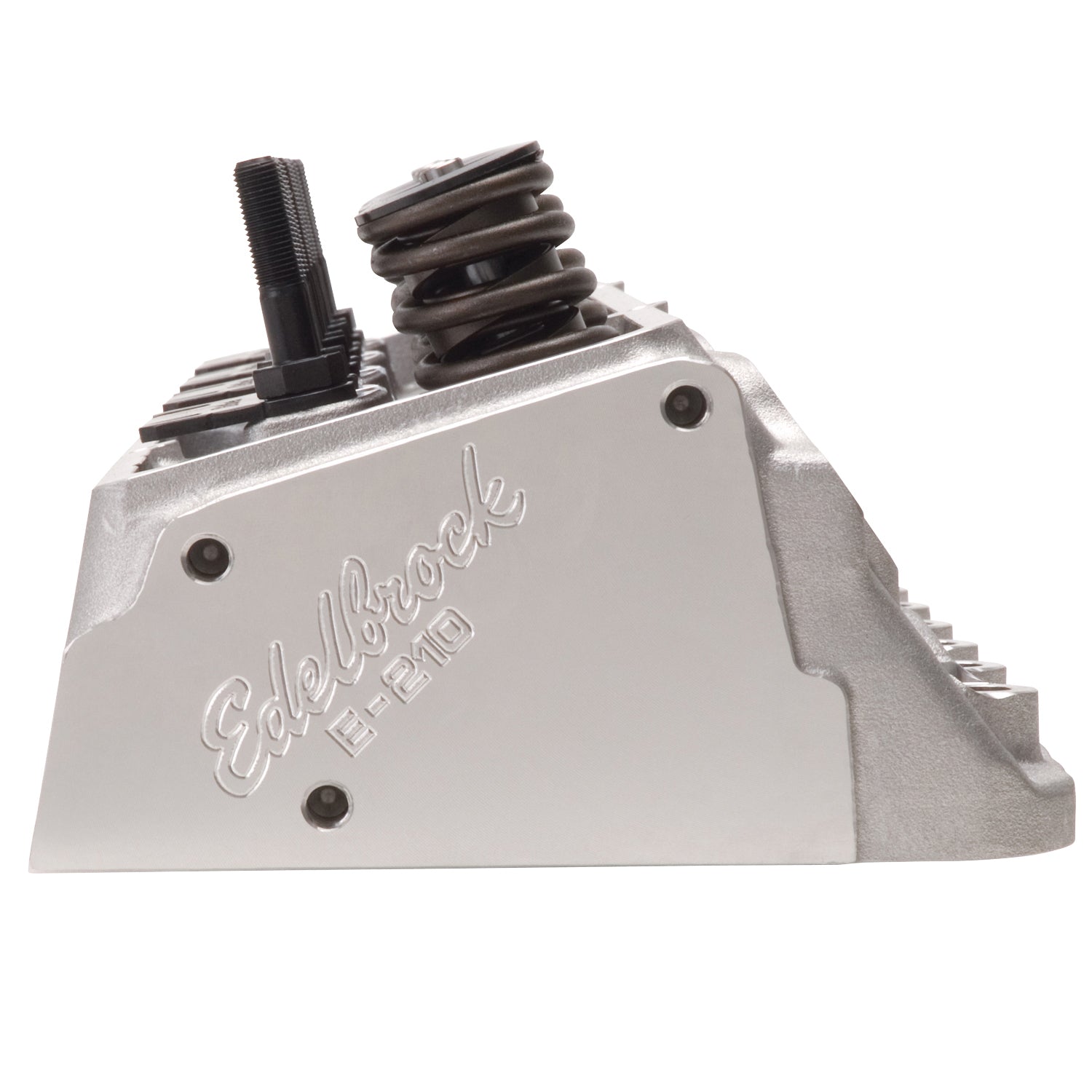

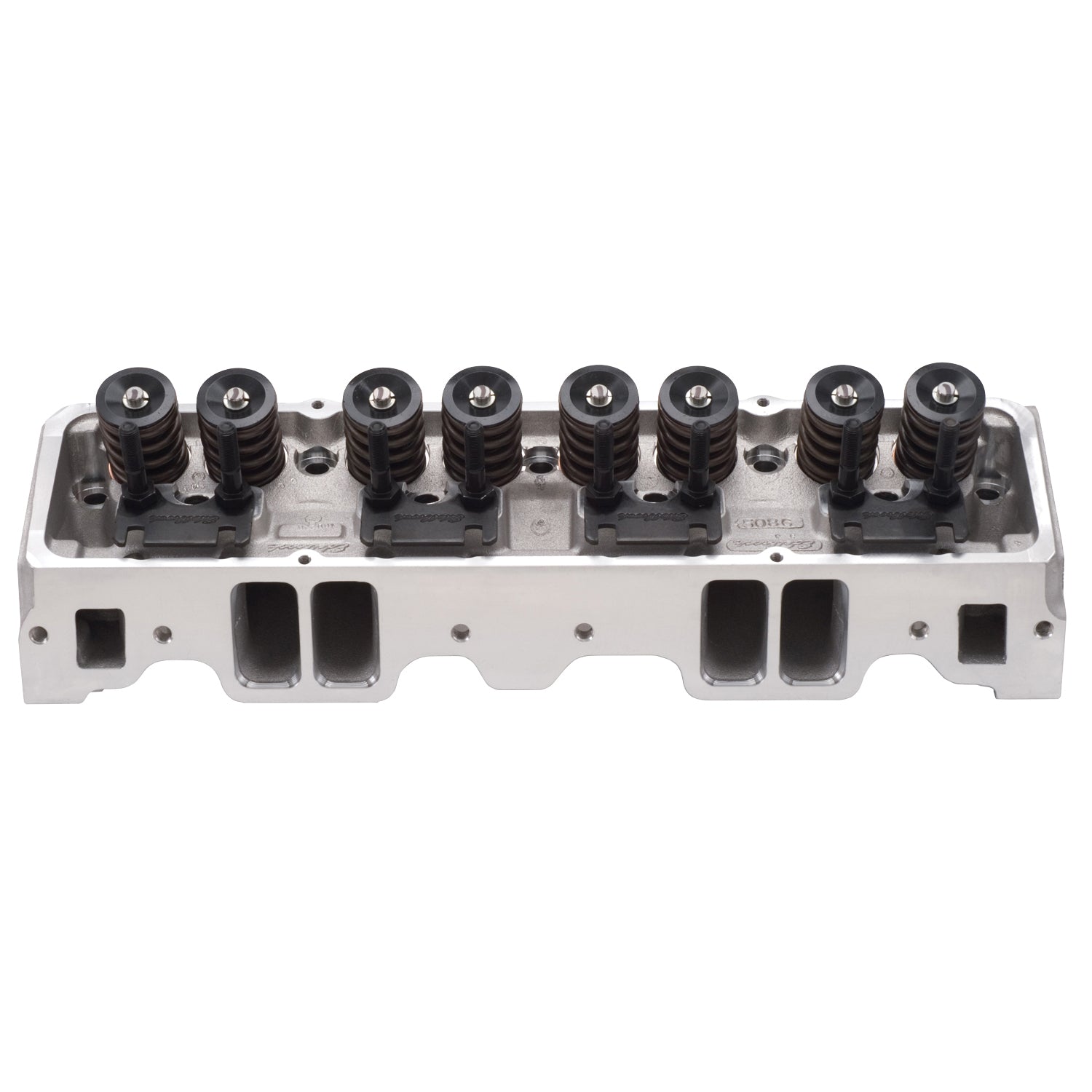

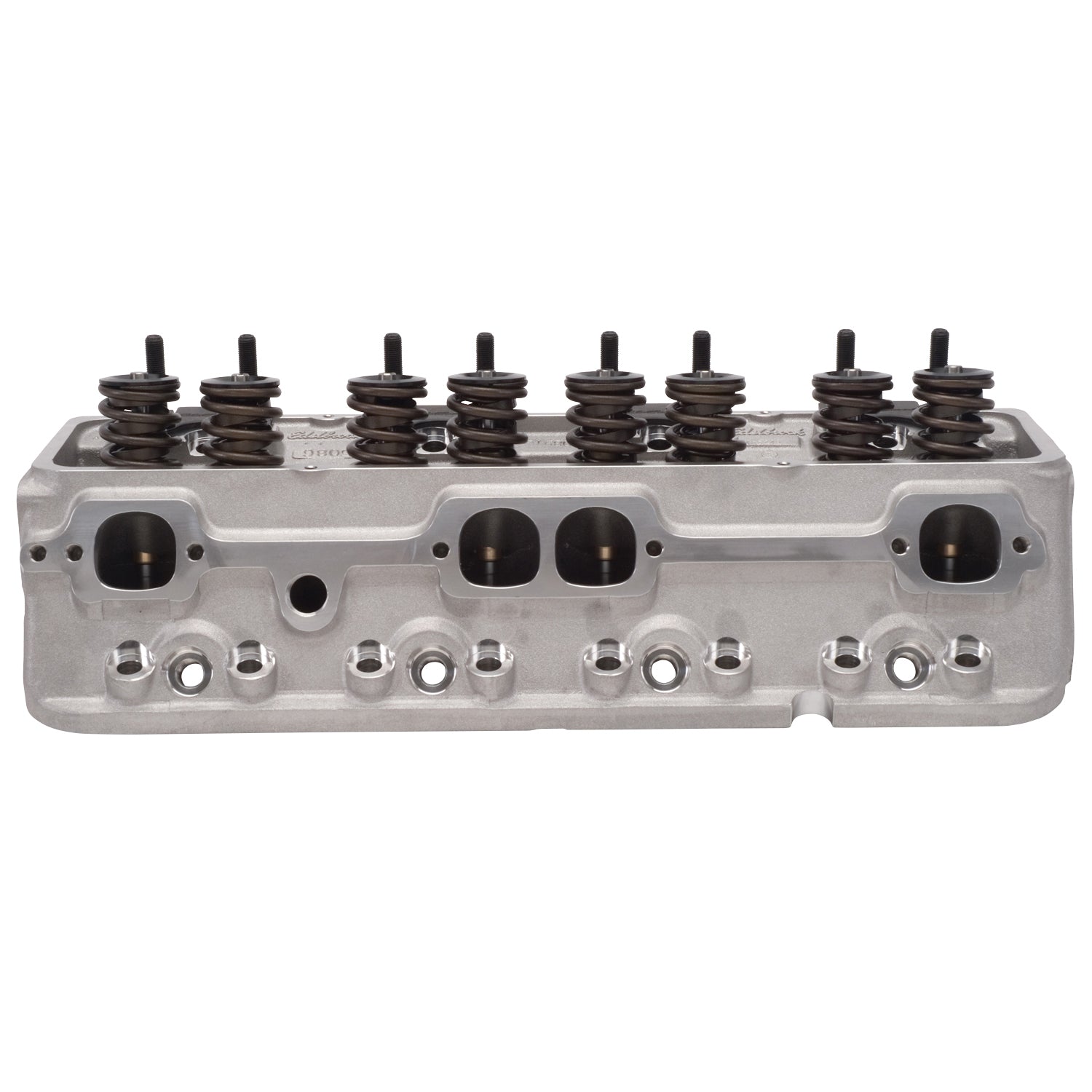

EDELBROCK #5087 - E-210 Cylinder Heads for Small-Block Chevy - Hydraulic Roller

$1,529.95 USD

Sale Sold out

Product variants

We currently have 1 in stock.

Quantity

The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.

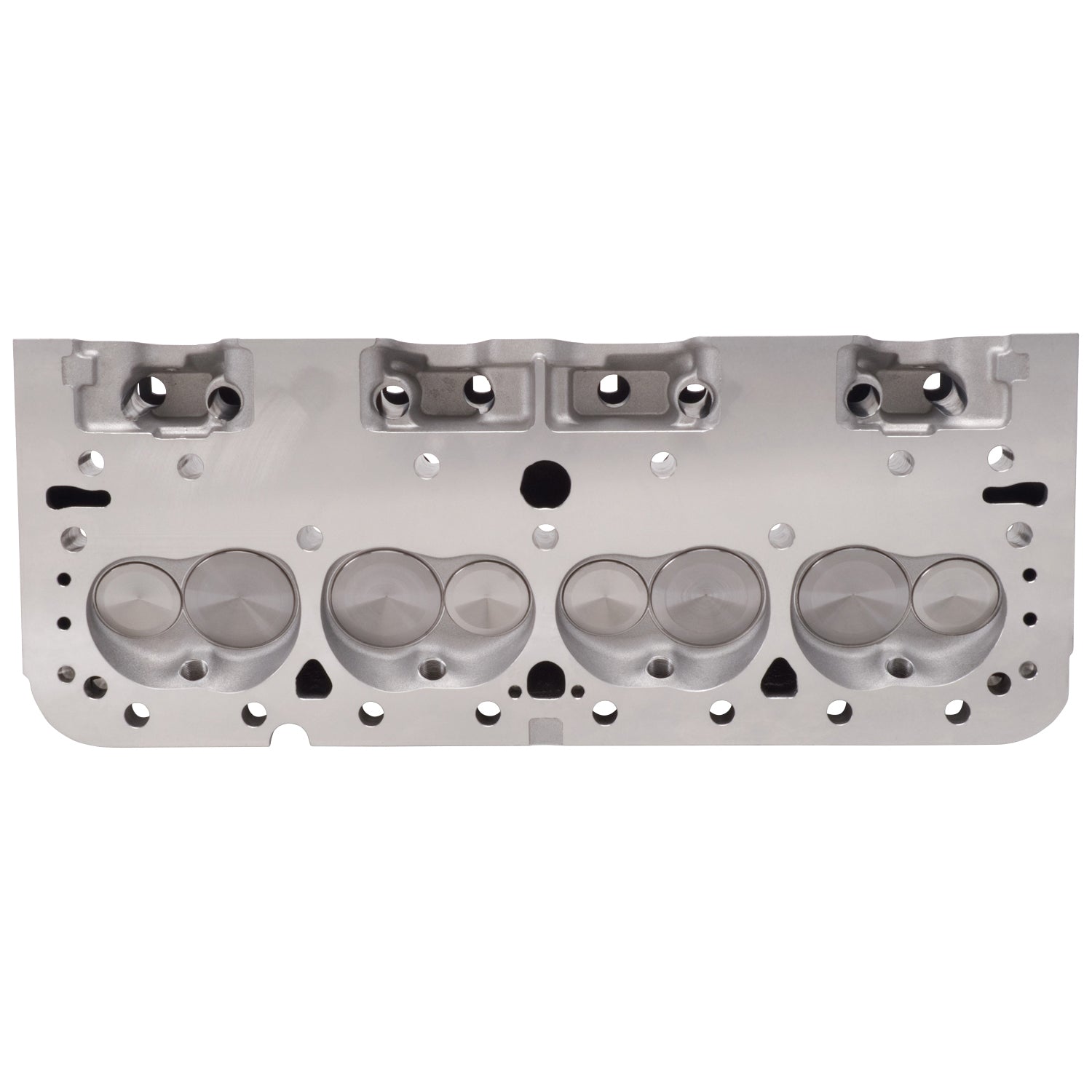

Combustion Chamber Volume (cc): 64

Intake Runner Volume (cc): 210cc

Exhaust Runner Volume (cc): 75cc

Cylinder Head Style: Assembled

Cylinder Head Material: Aluminum

Intake Port Shape: Rectangular

Intake Valve Diameter (in.): 2.080 in.

CNC-Machined Combustion Chamber: No

CNC-Machined Intake Runner: No

CNC-Machined Exhaust Runner: No

Intake Port Location: Standard

Exhaust Port Shape: Square

Exhaust Port Location: Standard

Spark Plug Style: Straight

Intake Valves Included: Yes

Exhaust Valves Included: Yes

Exhaust Valve Diameter (in.): 1.600 in.

Valve Springs Included: Yes

Maximum Valve Lift (in.): 0.650 in.

Camshaft Style: Hydraulic roller

Outside Diameter of Outer Spring (in.): 1.550 in.

Damper Spring Included: Yes

Number of Springs Per Valve: Dual

Retainers Included: Yes

Retainer Material: Steel

Locks Included: Yes

Lock Style: 7 degree

Valve Stem Seals Included:Yes

Valve Stem Seal Style: Umbrella

Rocker Arm Studs Included: Yes

Rocker Arm Nut Thread Size: 3/8 in.-24

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: Yes

Guideplate Pushrod Size: 5/16 in.

Valve Cover Mounting Style: Perimeter bolt

Accessory Bolt Holes Drilled: Yes

Intake Valve Angle: 23

Exhaust Valve Angle: 23

Valve Guides Included: Yes

Valve Guide Material: Manganese bronze

Valve Seats Machined: Yes

Valve Seat Machine Style: 3-angle

Valve Seat Material: Powdered metal

Cylinder Head Color: Natural

Steam Holes Drilled: No

Oiling Style: Through pushrod

Machined for O-Ring: No

Heat Crossover: No

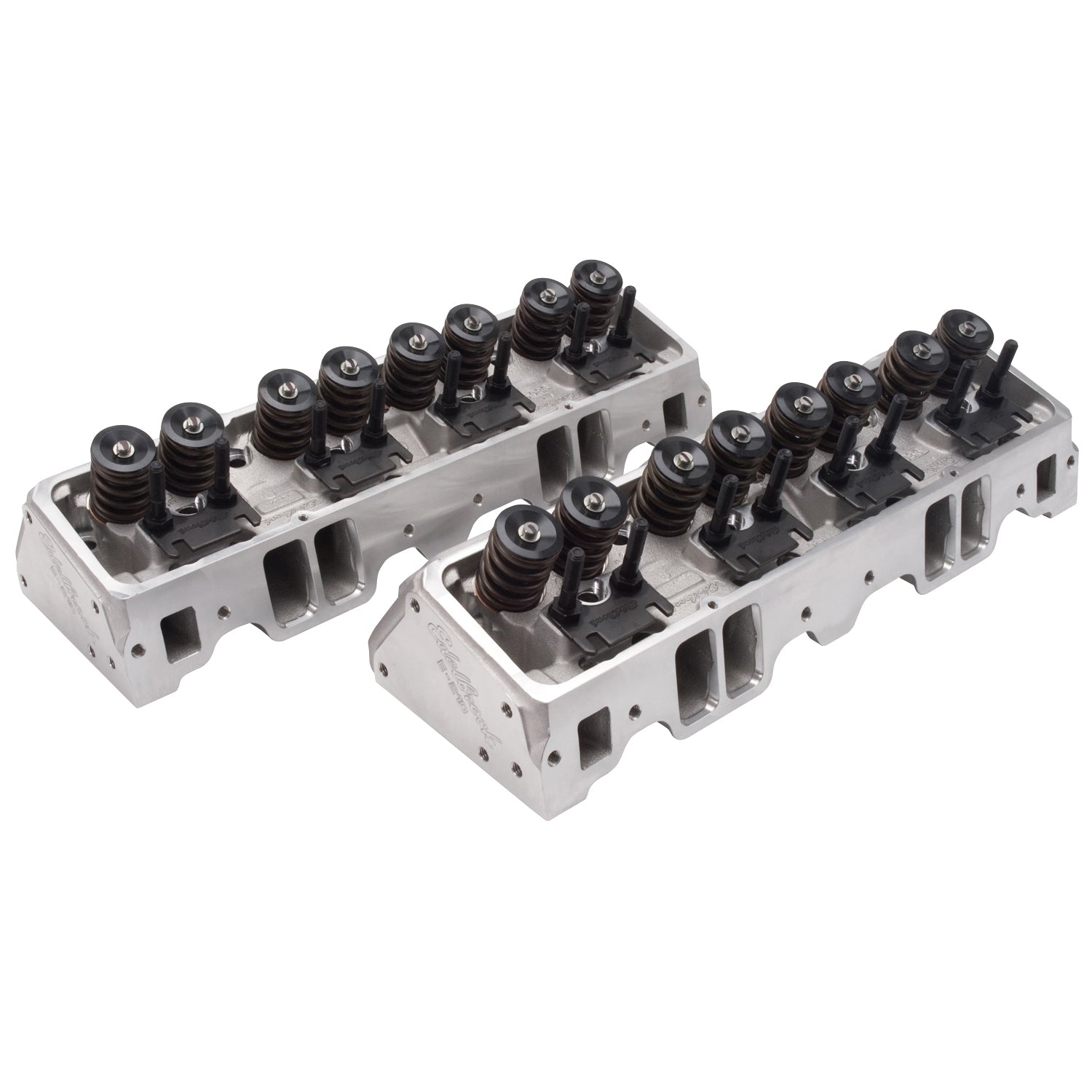

Quantity: Sold as a pair.

Notes: Equipped with valve springs for mechanical flat tappet and hydraulic roller camshaft applications. Champion RC12YC or equivalent 14mm x 3/4 in. reach spark plugs with flat gasket seat. Hardened pushrods required.
