EDELBROCK

EDELBROCK #35980 - Pro-Flo 4 EFI System for Pontiac V8 - 550 HP

EDELBROCK #35980 - Pro-Flo 4 EFI System for Pontiac V8 - 550 HP

Regular price $2,395.95 USD
Regular price Sale price $2,395.95 USD
Sale Sold out
We currently have 3 in stock.

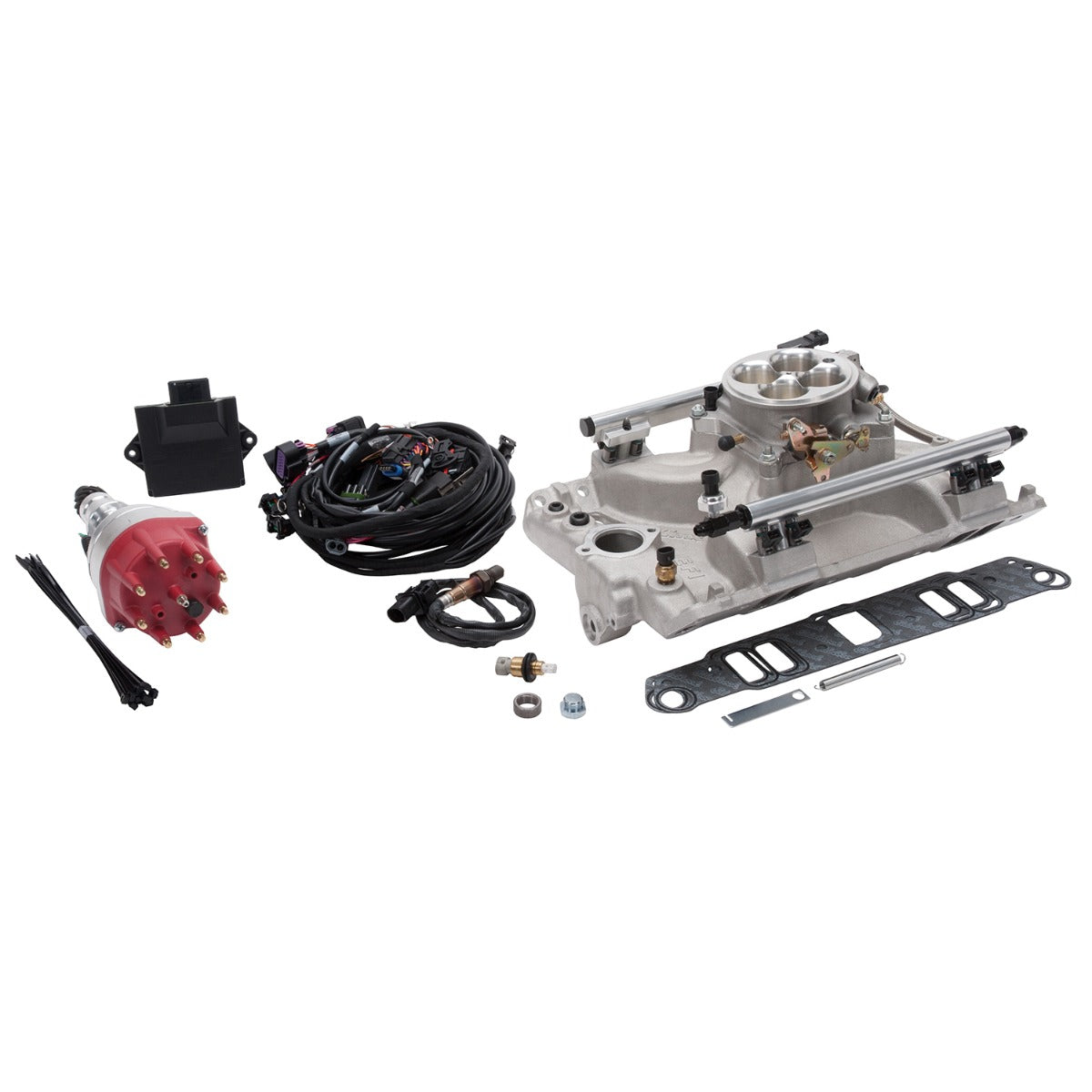

The Edelbrock Pro-Flo 4 XT EFI Kit #35980 for Pontiac 326-455 C.I. engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.

Fuel Injection Style: Multi-port
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 550
Timing Control Compatible: Yes
Power Adder Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel Pump Included: No
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Intake Manifold Included: Yes
Intake Section Included: Complete
Intake Material: Aluminum
Intake Finish: Natural
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Venturi Diameter (mm): 44.45mm
Airflow Rate (cfm): 1,000 cfm
Throttle Body Material: Aluminum
Throttle Body Finish: Natural
Injectors Included: Yes
Injector Size (lbs/hr): 35 lbs./hr.
Calibration Module Included: No
Wiring Harness Included:Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: No
Distributor Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. 35980 manifold height: 6.60". Throttle body height: 2.530"
