EDELBROCK #35813 - Pro-Flo 4 XT EFI System for 1986 & Earlier Small-Block Chevy - 550HP Black

EDELBROCK #35813 - Pro-Flo 4 XT EFI System for 1986 & Earlier Small-Block Chevy - 550HP Black

Regular price $2,645.95 USD
Regular price Sale price $2,645.95 USD
Sale Sold out
We currently have 3 in stock.

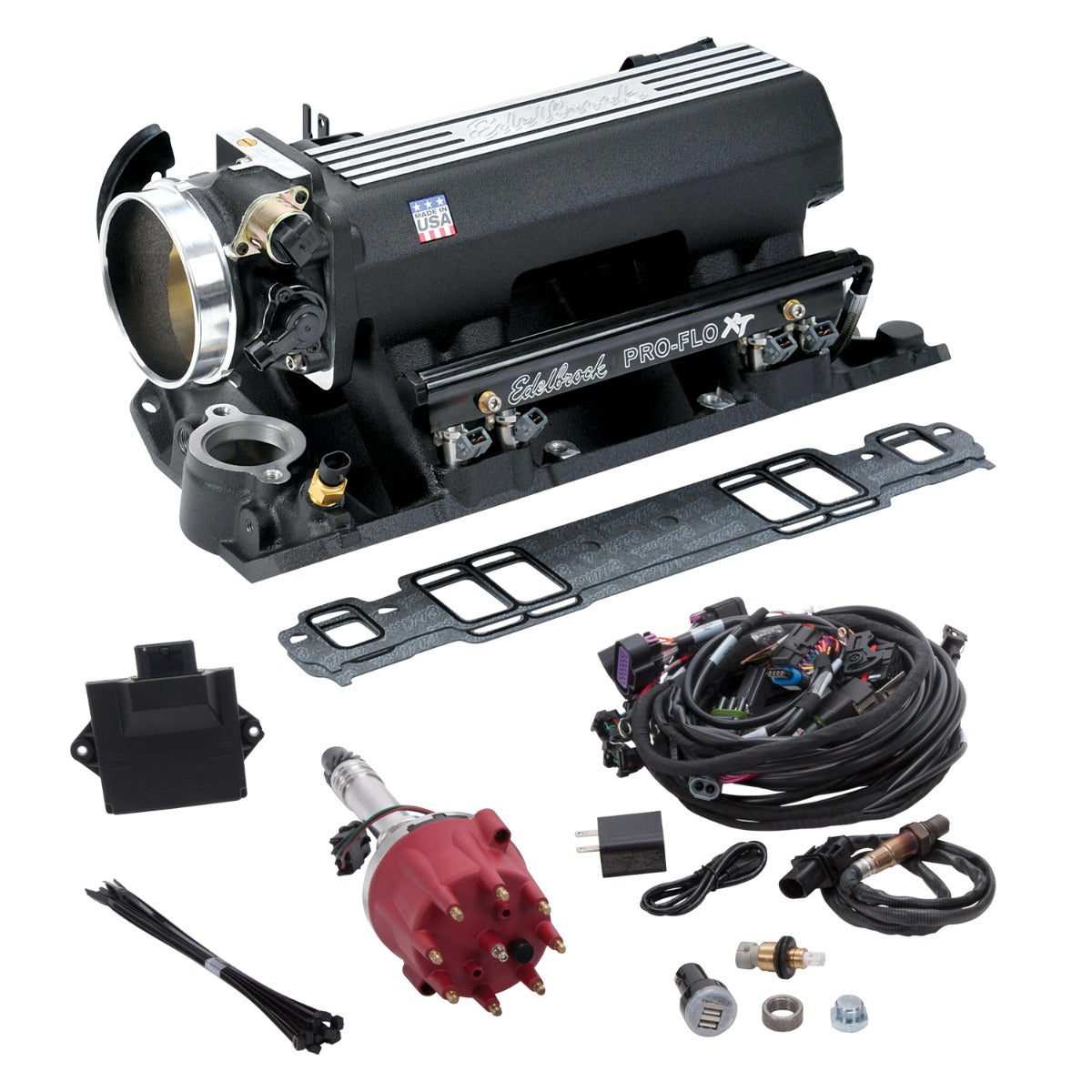

The Edelbrock Pro-Flo 4 XT EFI Kit #35813 for 1986-earlier Small-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a black powder-coated XT intake manifold with large plenum and long tapered runners that comes ready to run with high-flow injectors, fuel rails and 90mm throttle body preassembled for you at the Edelbrock factory. This kit is rated at a maximum 550 horsepower with 35 lb/hr injectors and includes all supporting sensors, a wide-band O2 sensor and wire harnesses. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events under all conditions. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI #35813 for the Small-Block Chevy requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 550
Timing Control Compatible: Yes
Power Adder Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel Pump Included: No
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Intake Manifold Included: Yes
Intake Section Included: Complete
Intake Material: Aluminum
Intake Finish: Black powdercoated
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Venturi Quantity: 1
Venturi Diameter (mm): 90.00mm
Airflow Rate (cfm): 1,100 cfm
Throttle Body Material: Aluminum
Throttle Body Finish: Natural
Injectors Included: Yes
Injector Size (lbs/hr): 35 lbs./hr.
Calibration Module Included: No
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: No
Distributor Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately.
