EDELBROCK
EDELBROCK #35790 - Pro-Flo 4 XT EFI System for 1986 & Earlier Small-Block Chevy - 450HP
EDELBROCK #35790 - Pro-Flo 4 XT EFI System for 1986 & Earlier Small-Block Chevy - 450HP
Regular price
$2,545.95 USD
Regular price
Sale price
$2,545.95 USD
Unit price
/
per
We currently have 1 in stock.
Couldn't load pickup availability

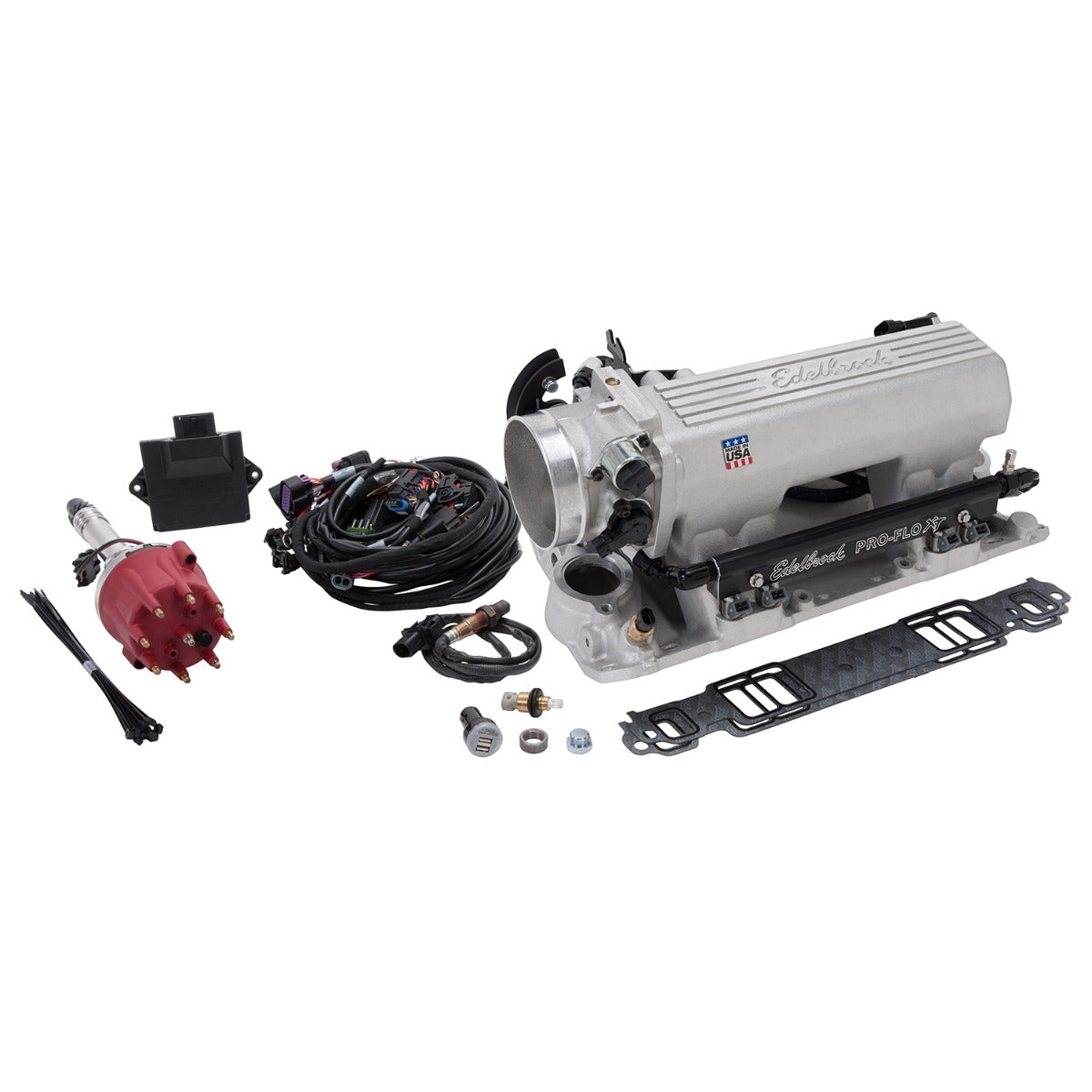

The Edelbrock Pro-Flo 4 XT EFI Kit #35790 for 1986 & Earlier Small-Block Chevy engines has the latest technology and features. The EFI system comes complete with a Pro-Flo XT intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections for a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, water proof design and is half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Fuel Injection Style:Â Multi-port
Fuel Injection System Type:Â Multi-port Throttle Body
Maximum Horsepower with Gas:Â 450
Timing Control Compatible:Â Yes
Power Adder Compatible:Â Yes
ECM Included:Â Yes
Self Tuning:Â Yes
User Tunable:Â Yes
Fuel Pump Included:Â No
EGR:Â No
Transmission Controller Included:Â No
Metering Style:Â Speed density
Intake Manifold Included:Â Yes
Intake Section Included:Â Complete
Intake Material:Â Aluminum
Intake Finish:Â Natural
Engine Block Deck Height:Â Standard deck
Multi-Port Fuel Rails Included:Â Yes
Throttle Body Included:Â Yes
Venturi Quantity:Â 1
Venturi Diameter (mm):Â 90.00mm
Airflow Rate (cfm):Â 1,100 cfm
Throttle Body Material:Â Aluminum
Throttle Body Finish:Â Natural
Injectors Included:Â Yes
Injector Size (lbs/hr):Â 29 lbs./hr.
Calibration Module Included:Â No
Wiring Harness Included:Â Yes
Oxygen Sensor Included:Â Yes
Fuel Pressure Regulator Included:Â No
Distributor Included:Â Yes
MAP Sensor Included:Â Yes
IAT Sensor Included:Â Yes
TPS Sensor Included:Â Yes
IAC Motor Included:Â Yes
Quantity:Â Sold as a kit.
Notes:Â This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately
