EDELBROCK #35680 - Pro-Flo 4 EFI System for Big-Block Ford - 675 HP
EDELBROCK #35680 - Pro-Flo 4 EFI System for Big-Block Ford - 675 HP
Regular price
$2,295.95 USD
Regular price
Sale price
$2,295.95 USD
Unit price
/
per
We currently have 1 in stock.
Couldn't load pickup availability

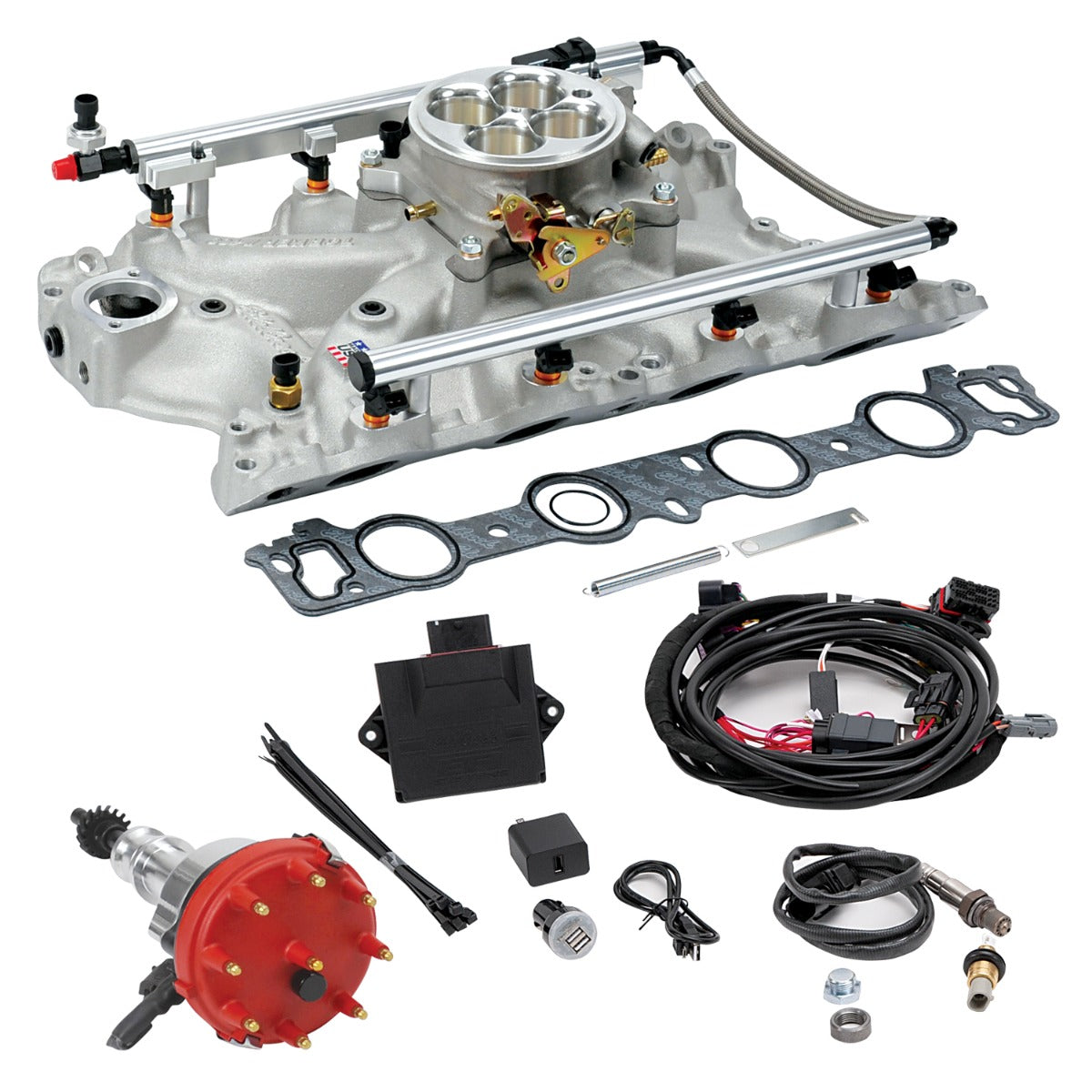

The Edelbrock Pro-Flo 4 EFI Kit #35680 for Ford big-block 429-460 engines is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors, wire harnesses and ECU are included along with a full-color installation manual. The Torker II EFI manifold is designed with a larger cross-sectional area in the plenum with longer runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 Lb/Hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Fuel Injection Style:Â Multi-port
Fuel Injection System Type:Â Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas:Â 675
Timing Control Compatible:Â Yes
Power Adder Compatible:Â Yes
ECM Included:Â Yes
Self Tuning:Â Yes
User Tunable:Â Yes
Fuel Pump Included:Â No
EGR:Â No
Transmission Controller Included:Â No
Metering Style:Â Speed density
Intake Manifold Included:Â Yes
Intake Section Included:Â Complete
Intake Material:Â Aluminum
Intake Finish:Â Natural
Engine Block Deck Height:Â Standard deck
Multi-Port Fuel Rails Included:Â Yes
Throttle Body Included:Â Yes
Throttle Body Mounting Flange:Â 4-barrel square bore
Venturi Quantity:Â 4
Venturi Diameter (mm):Â 44.45mm
Airflow Rate (cfm):Â 1,000 cfm
Throttle Body Material:Â Aluminum
Throttle Body Finish:Â Natural
Injectors Included:Â Yes
Injector Size (lbs/hr):Â 42 lbs./hr.
Calibration Module Included:Â No
Wiring Harness Included:Â Yes
Oxygen Sensor Included:Â Yes
Fuel Pressure Regulator Included:Â No
Distributor Included:Â Yes
MAP Sensor Included:Â Yes
IAT Sensor Included:Â Yes
TPS Sensor Included:Â Yes
IAC Motor Included:Â Yes
Quantity:Â Sold as a kit.
Notes:Â This Pro-Flo 4 system for the Ford 429/460 requires a high-pressure, EFI-compatible fuel delivery system. Edelbrock fuel delivery kits are available and sold separately for this application. Visit edelbrock.com to choose the right kit for your installation. Manifolds height for Pro-Flo 4 #35680 is 4.25 inches.
