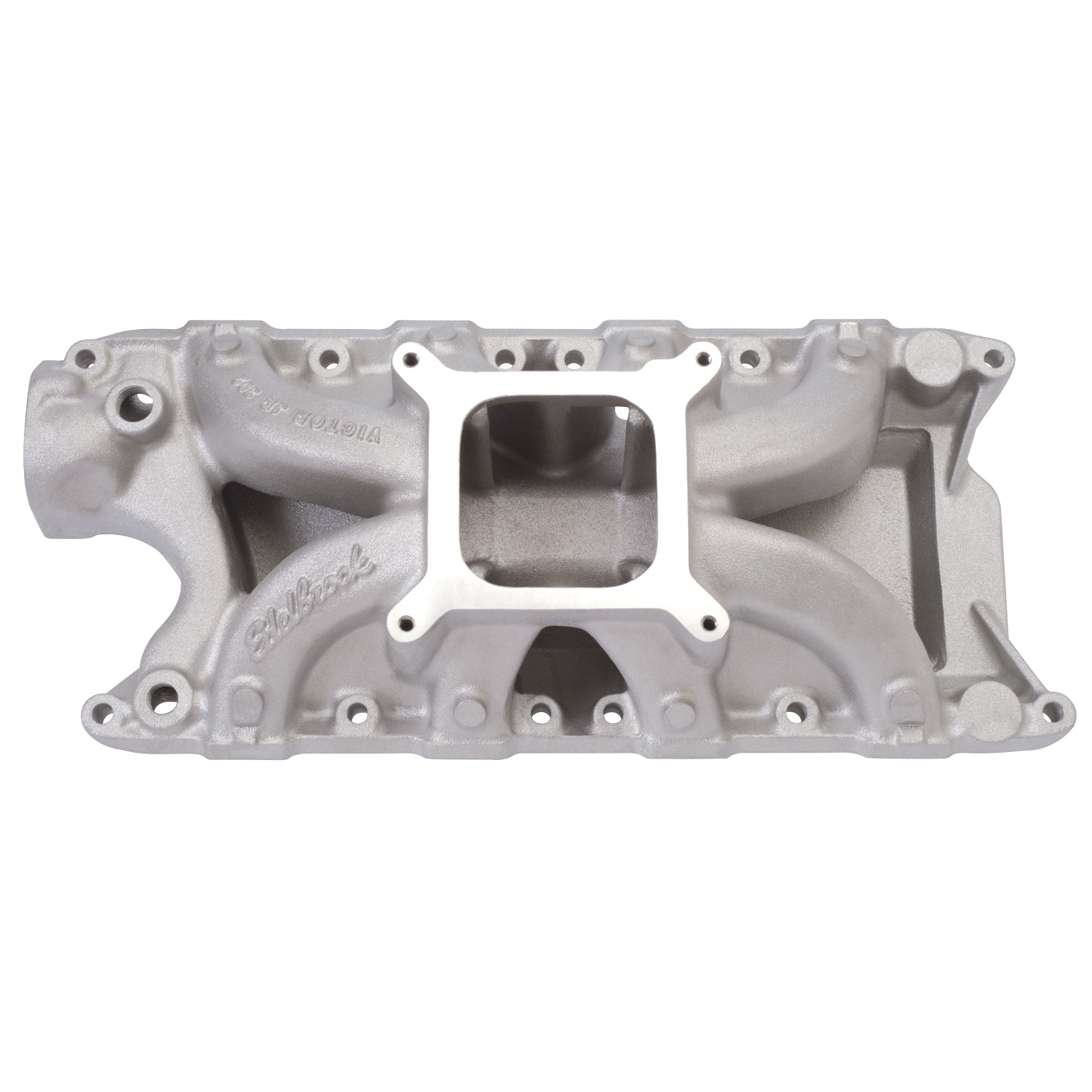

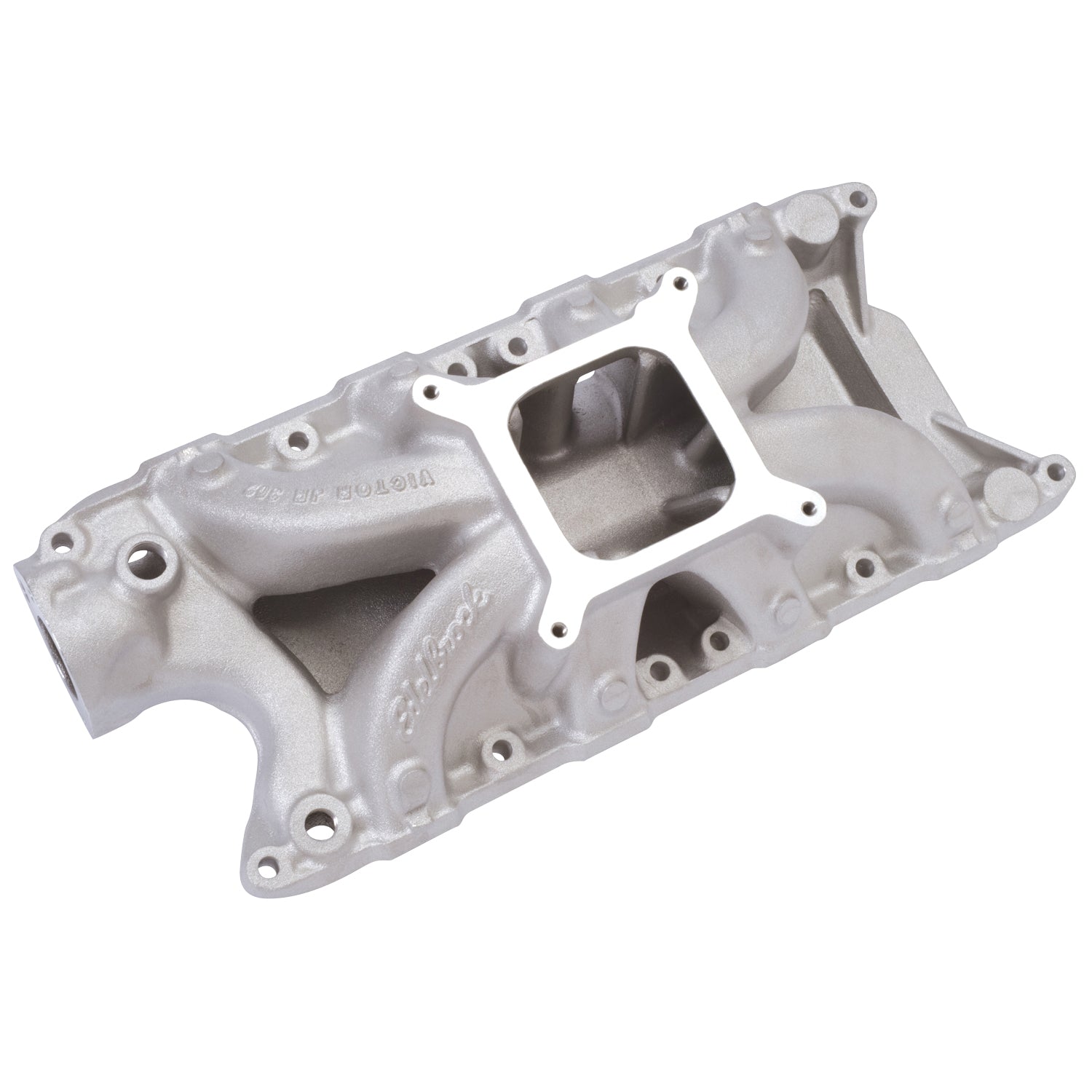

Edelbrock part #2921 Victor Jr. 302 intake manifold is designed for Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. This intake manifold has bosses for rear water crossover. Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. This Victor Jr. is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Single plane
Basic Operating RPM Range: 3,500-8,000
Intake Manifold Height: 5.500 in.
Intake Finish: Natural
Intake Material: Aluminum
Quantity: Sold individually.
Notes: Recommended intake gasket: Edelbrock #7220 or Fel-Pro #1250; Manifold height: A-5.50", B-5.50"; Carb recommendations: Use appropriate racing carburetor; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
