EDELBROCK

EDELBROCK #2161 PERFORMER INTAKE MANIFOLD

EDELBROCK #2161 PERFORMER INTAKE MANIFOLD

Regular price $357.95 USD
Regular price Sale price $357.95 USD
Sale Sold out
We currently have 1 in stock.

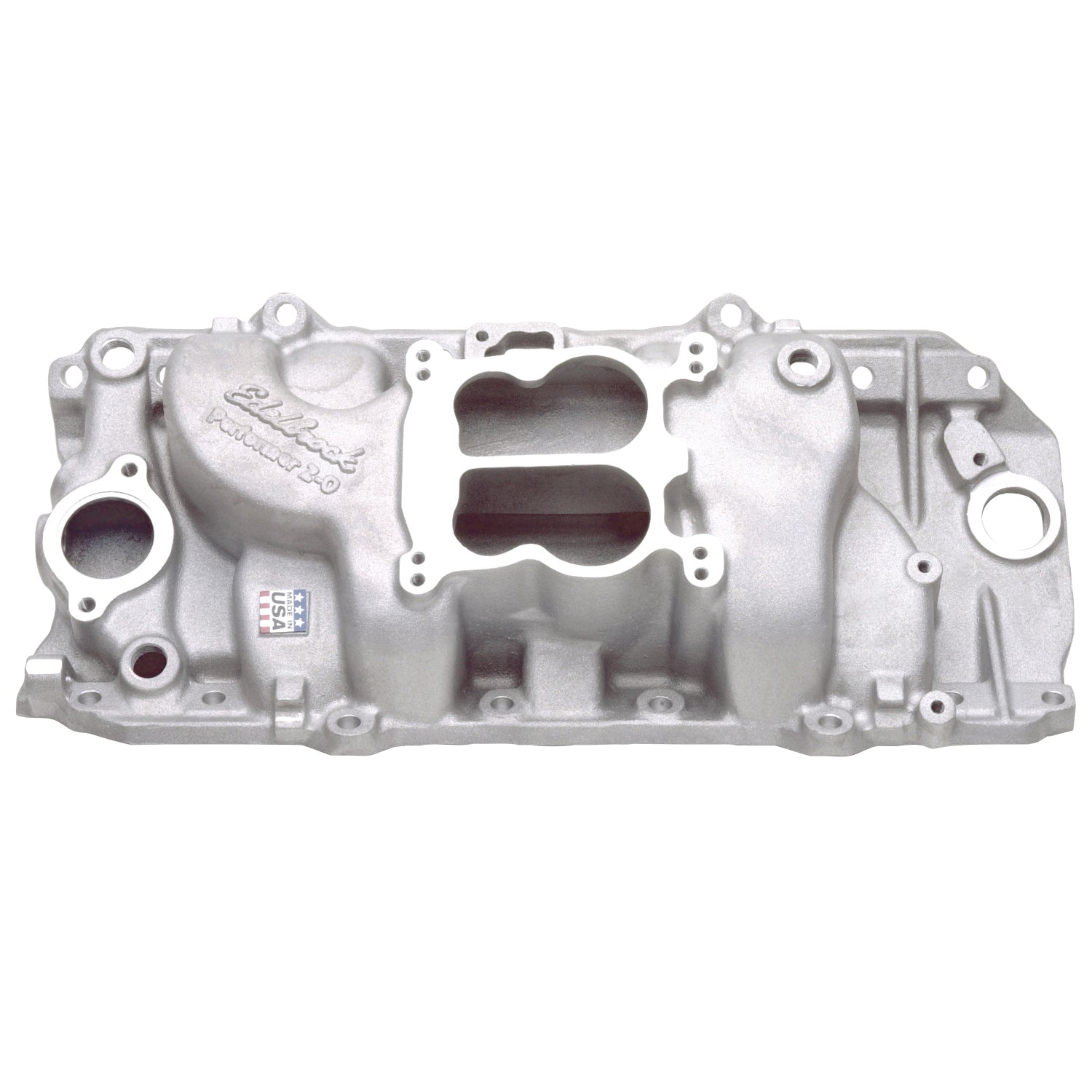

Edelbrock part #2161 Performer 2-O intake manifold is designed for street 396-502 c.i.d. big-block Chevy V8's using general duty oval-port cylinder heads. Will not fit under hood of Corvette without hood modifications. Will not fit "tall block" V8's. May be used with OEM or aftermarket carbs. Will fit 1965-90 oval port heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.

Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Dual plane
Basic Operating RPM Range: Idle-5,500
Intake Manifold Height: 4.850 in.
Intake Finish: Natural
Intake Material: Aluminum
EGR: No
Quantity: Sold individually.

Notes: Recommended intake gasket: Edelbrock #7203.; Use Edelbrock #8028 waterneck adapter for 1986 and later.; Edelbrock choke plate #8961 included.; Manifold height: A-4.300", B-5.400"; Carb pad height: 4.85"; Carb recommendations: Stock 4-Bbl use choke rod #9179 if needed, Edelbrock AVS2 or Performer Series 600-800cfm. Use bracket #8031 for 1972-78.; Port exit dimensions: 1.70"w x 1.68"; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

PDF-Installation Instructions
