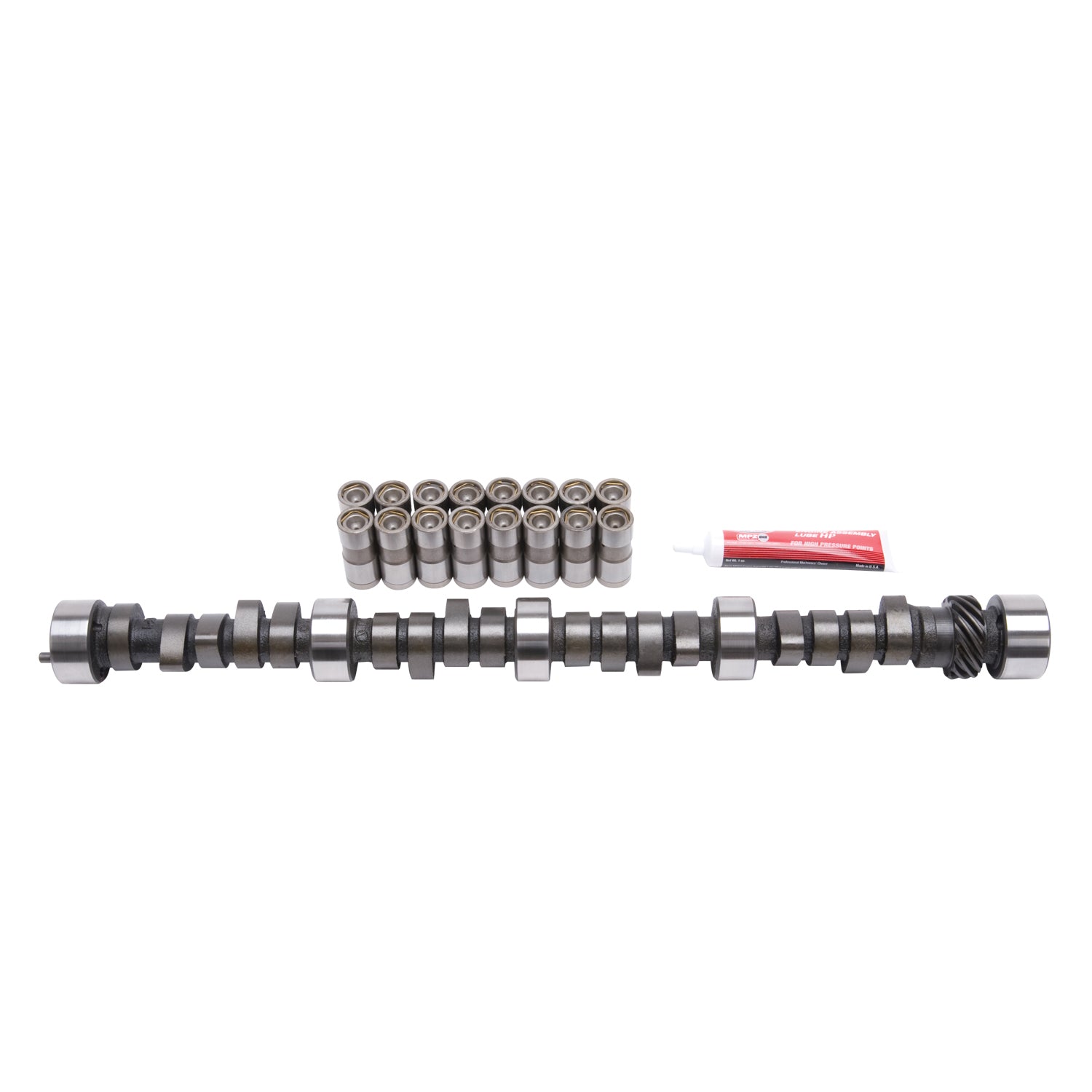

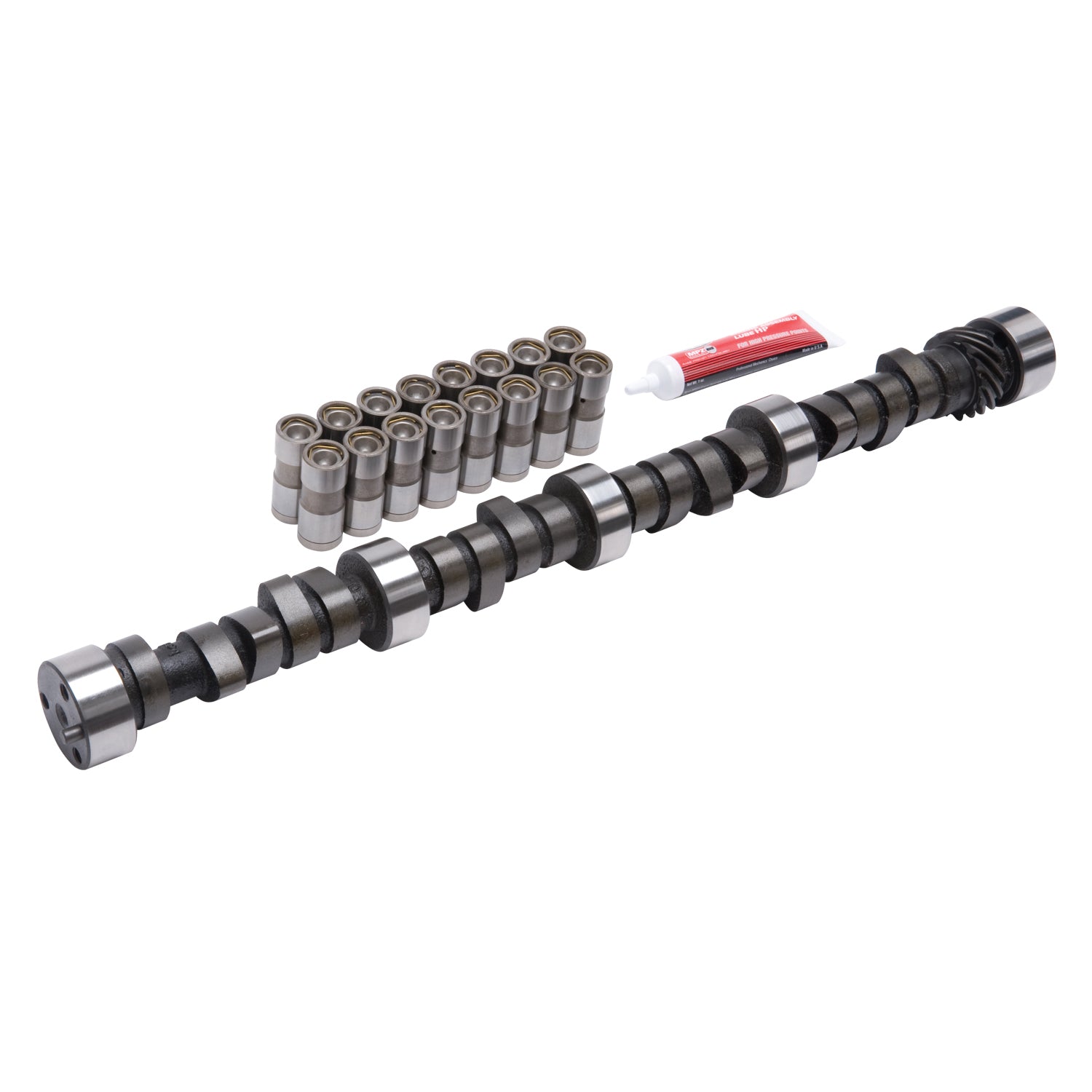

EDELBROCK #2117 - Camshaft & Lifter Kit for Small-Block Chevy - Hydraulic Flat Tappet

$237.95 USD

Sale Sold out

Product variants

We currently have 1 in stock.

Quantity

Edelbrock Performer-Plus Camshaft #2117 is designed for 283-400 Chevy V8 engines from 1957-86 and produce optimum torque from the low-end to the mid-range. Performer-Plus camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. The Performer-Plus #2117 is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 338 HP and 389 Ft Lbs of Torque when paired with Performer EPS intake manifold #2701, E-Street cylinder heads #5089 and E-Street EFI system #3664. Camshaft specifications: - Intake duration: 218 Degrees - Exhaust duration: 224 Degrees - Intake lift: .464" - Exhaust lift: .470" - Lobe separation: 114 Degree - Intake Center Line: 110 Degree - Vacuum: 15"

Cam Style: Hydraulic flat tappet

Basic Operating RPM Range: 1,000-5,500

Camshaft Use: Street

Intake Duration at 050 inch Lift: 218

Exhaust Duration at 050 inch Lift: 224

Advertised Intake Duration: 309

Advertised Exhaust Duration: 314

Intake Valve Lift with Factory Rocker Arm Ratio: 0.464 in.

Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.470 in.

Lobe Separation (degrees): 114

Camshaft Gear Attachment: 3-bolt

Computer-Controlled Compatible: No

Lifters Included: Yes

Lifter Style: Hydraulic flat tappet

Valve Springs Included: No

Retainers Included: No

Locks Included: No

Valve Stem Seals Included: No

Timing Chain and Gears Included: No

Assembly Lubricant Included: Yes

Pushrods Included: No

Rocker Arms Included: No

Gaskets Included: No

Valve Springs Required: No

Quantity: Sold as a kit.

Notes: Edelbrock's 2117 is a camshaft designed specifically for use with Edelbrocks E-Street EFI systems and are also used in the Edelbrock E-Street EFI Crate Engine package.

PDF-Installation Instructions
