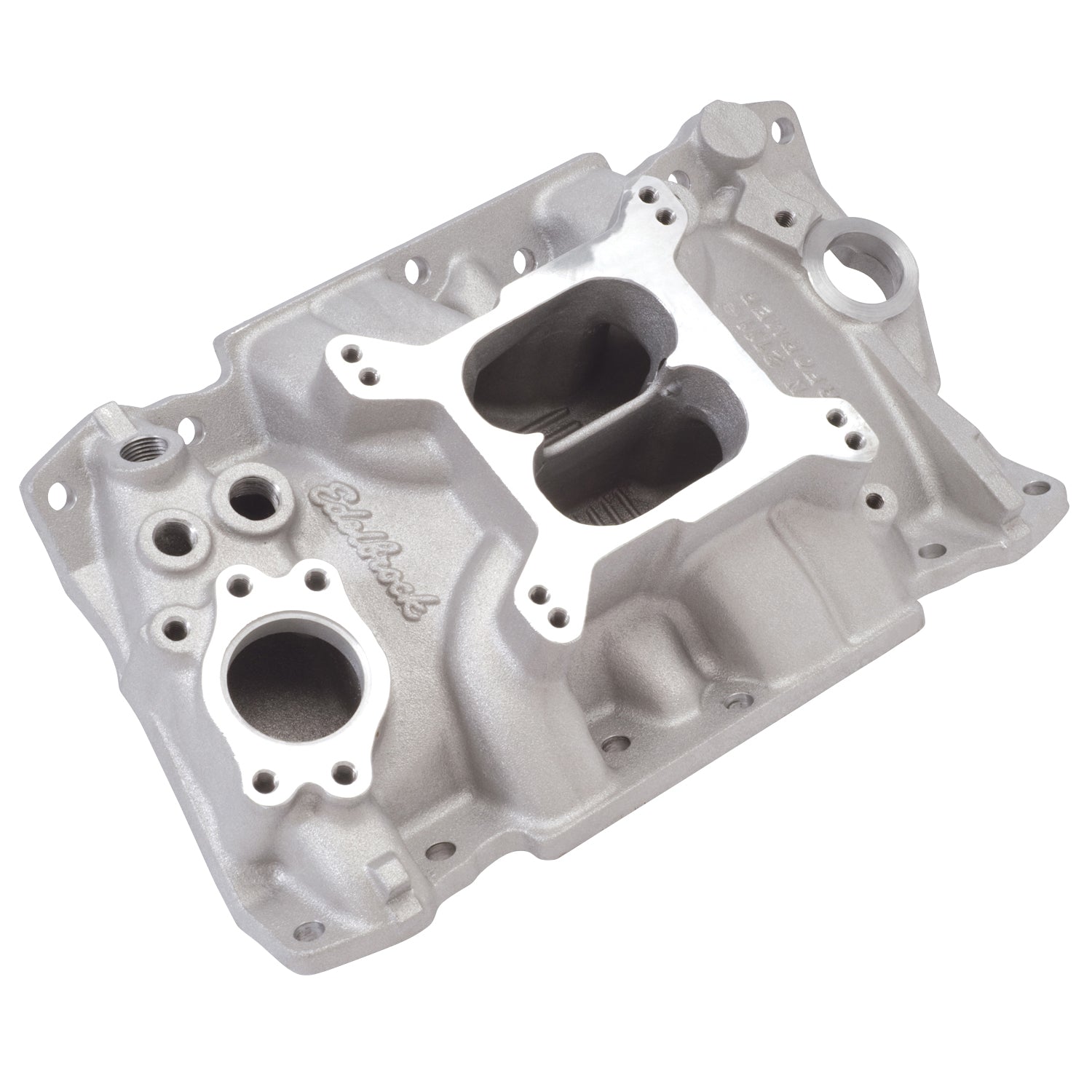

Edelbrock part #2111 Performer 90 degree V6 intake manifold is designed for street and marine 1985-95 200-229-262 c.i.d. (3.8 and 4.3L) Chevy V6s. Dual bolt pattern water neck fits both automotive and marine applications. Produced 18 more horsepower than an older manifold design on 4.3L marine engine. Will not accept stock automotive carbs or 262 T.B.I. unit.
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Dual plane
Basic Operating RPM Range: Idle-5,500
Intake Manifold Height: 3.840 in.
Intake Finish: Natural
Intake Material: Aluminum
Quantity: Sold individually.
Notes: Recommended intake gasket: Edelbrock #7209 or Fel-Pro #1202; Manifold height: A-3.50", B-4.18"; Carb pad height: 3.84"; Carb recommendations: Edelbrock AVS2 Series or Performer Series 500cfm; Port exit dimensions: 1.15" x 1.87"; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
