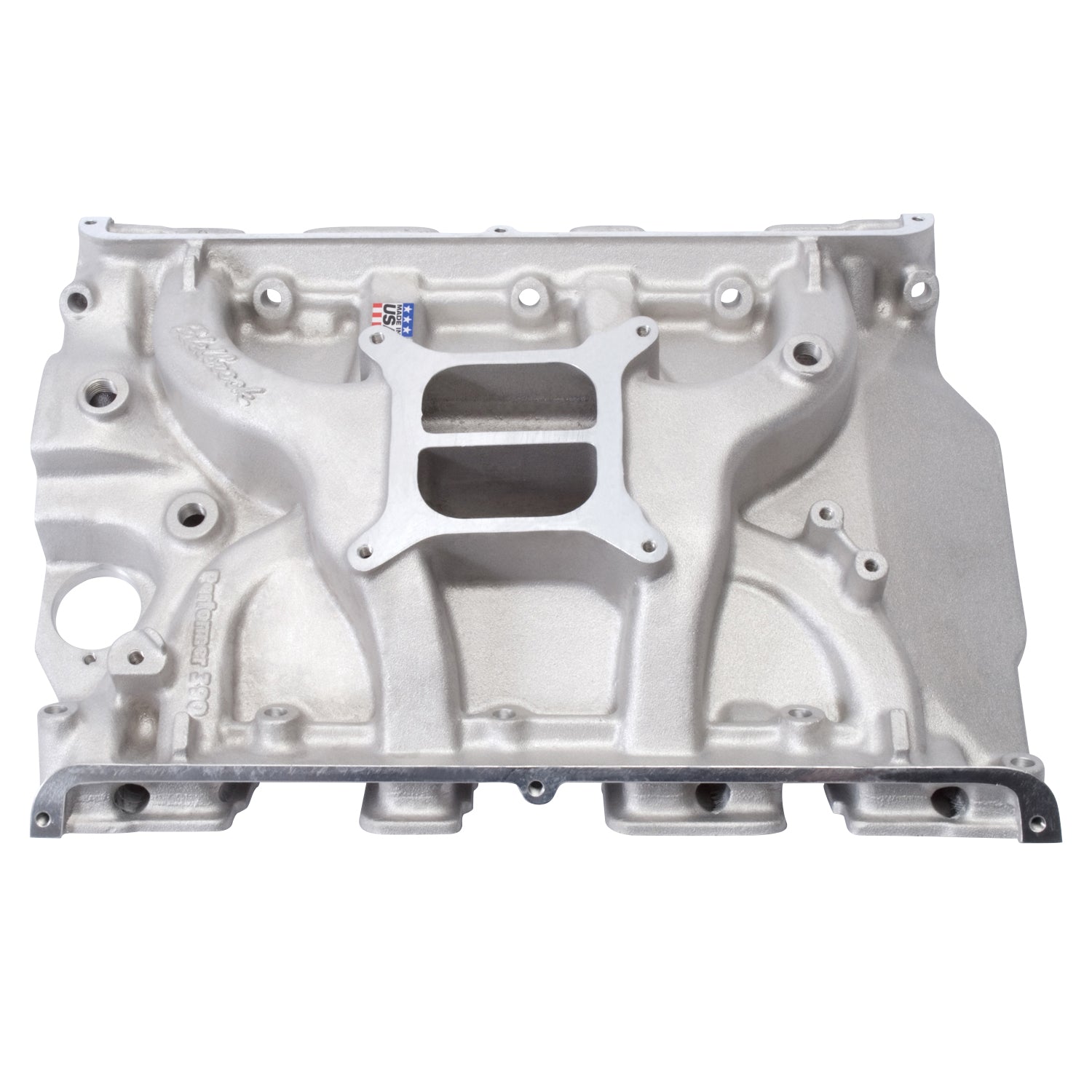

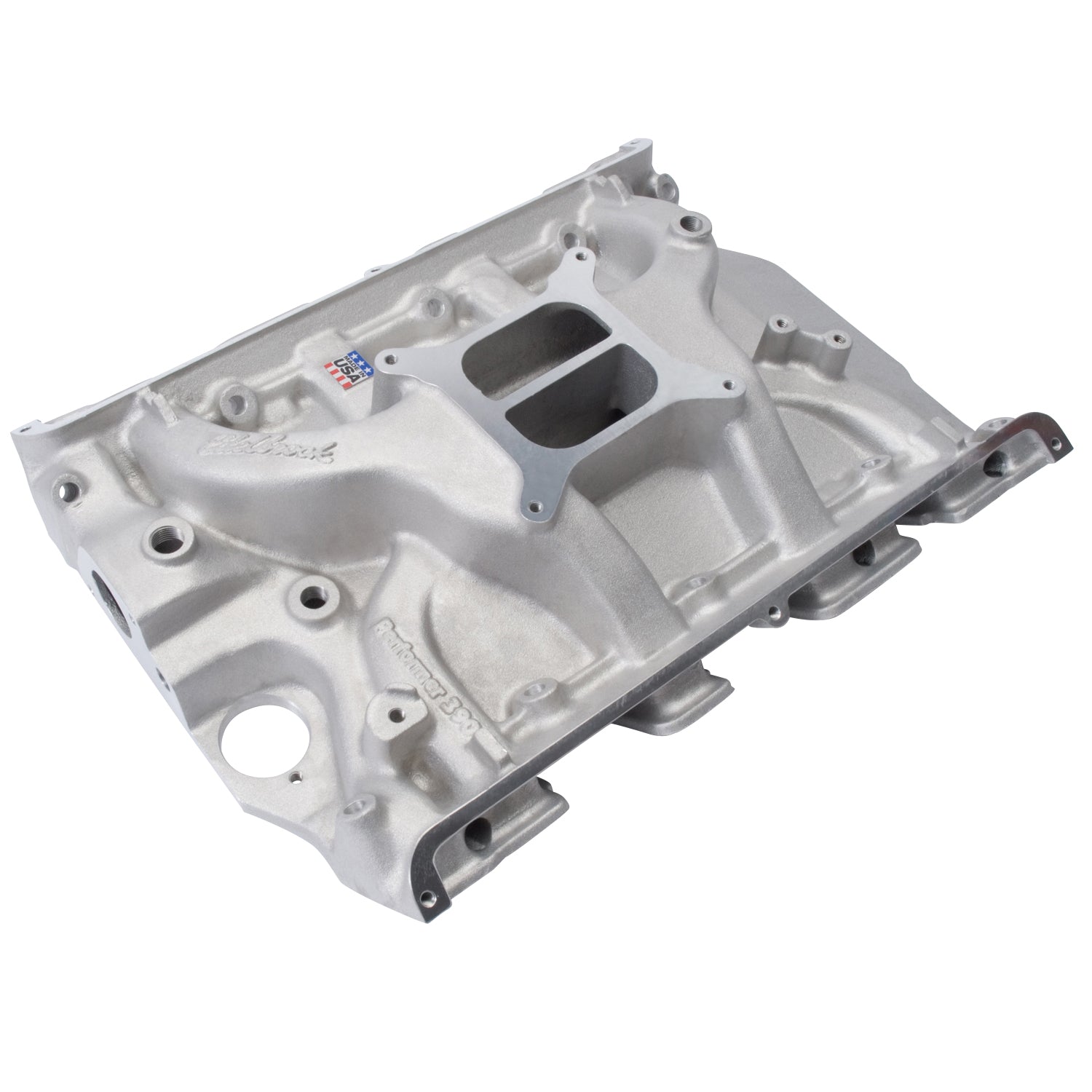

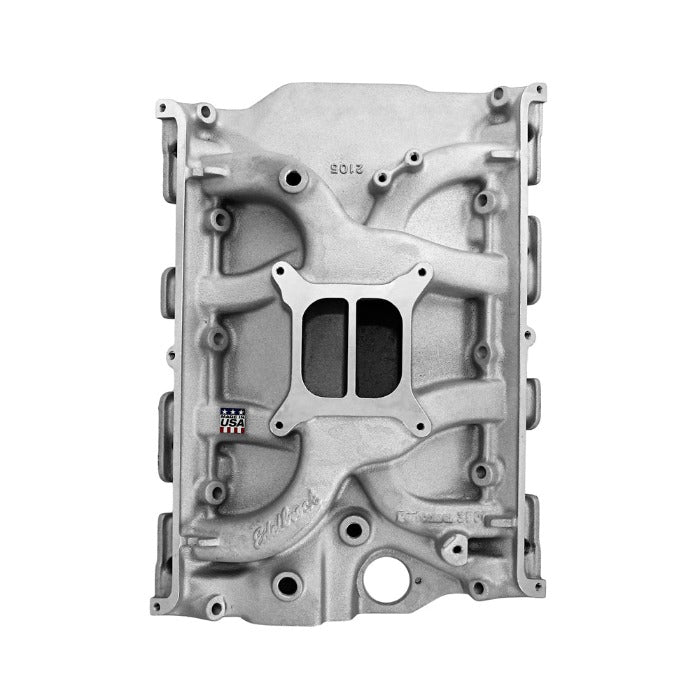

EDELBROCK #2105 - Performer Intake Manifold for Ford FE
EDELBROCK #2105 - Performer Intake Manifold for Ford FE
Regular price
$579.95 USD
Regular price
Sale price
$579.95 USD
Unit price
/
per
We currently have 2 in stock.
Couldn't load pickup availability
Edelbrock part #2105 Performer 390 intake manifold is designed for street 332-352-360-390-406-410-427-428 c.i.d. Ford V8's with medium- or low-rise cylinder heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Manifold not equipped with EGR; will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 c.i.d. and 391 c.i.d. Ford truck V8's.
Intake Section Included:Â Complete
Engine Block Deck Height:Â Standard deck
Carburetor Quantity:Â One
Intake Style:Â Dual plane
Basic Operating RPM Range:Â Idle-5,500
Intake Manifold Height:Â 4.920 in.
Intake Finish:Â Natural
Intake Material:Â Aluminum
EGR:Â No
Quantity:Â Sold individually.
Notes:Â Recommended intake gasket: Edelbrock #7224 or Fel-Pro #1247; Manifold height: A-4.35", B-5.50" (same as stock); Carb pad height: 4.92"; Carb recommendations: Edelbrock Thunder Series AVS or Performer Series Carb, 600-800cfm. For automatic transmissions use #1483 or #1844.; Port exit dimensions: 1.06" x 1.75"; Will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 & 391 c.i.d. Ford truck V8s.; Due to the design of Performer manifolds, the throttle and kickdown bracket on some vehicles may require modification to fit.; Due to the possible lack of hood clearance, you may not be able to use the OEM water heater space block between the intake manifold and carburetor.; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
