EDELBROCK

EDELBROCK #1791 - 120 GPH Electric Fuel Pump (Black)

$271.95 USD

Sale Sold out

Product variants

We currently have 1 in stock.

Quantity

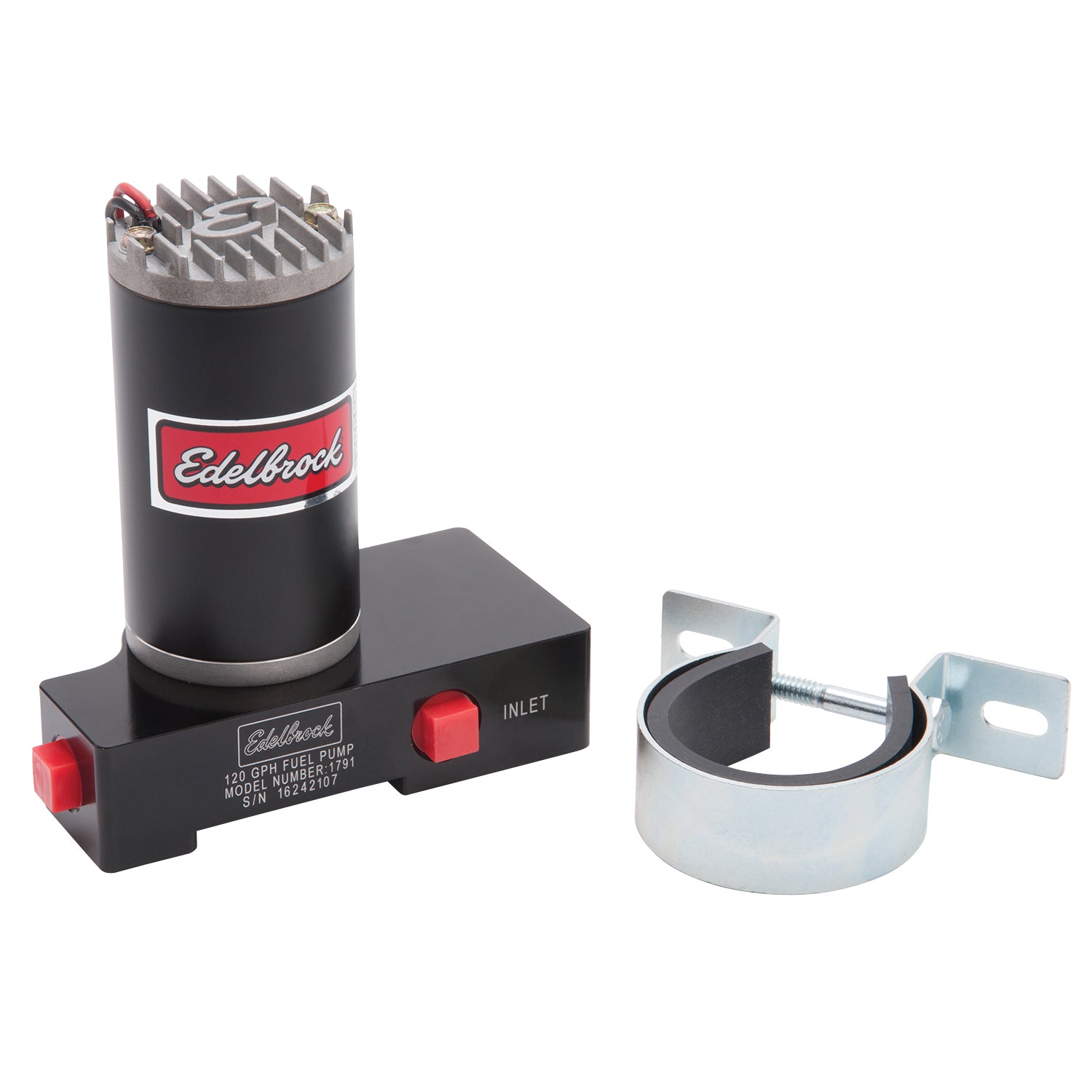

Edelbrock part #1791 is a state-of-the-art Electric Fuel Pump offering maximum performance in a compact package. With a Black anodized aluminum housing and high-quality internals, they are both strong and durable. The carbon vanes and composite rotor give these pumps the added boost for maximum performance. The high quality construction results in a pump that is 4 to 14 dB quieter than competitors' pumps at the same pressure. Edelbrock #1791 is factory preset to 6.5 psi and no regulator is required. With a replaceable screen type inlet filter and the free flow rate of 120 GPH it is sufficient to supply 480+ hp

Fuel Pump Type: Electric external

Flow Rate: 120 gph/454 lph

Fuel Pressure (psi): 6.5 psi

Fuel Pump Voltage: 12 V

Fuel Pressure Regulator Included: No

Sending Unit Included: No

Fuel Pump Inlet Size: 3/8 in. NPT

Inlet Quantity: 1

Inlet Attachment: Female threads

Fuel Pump Outlet Size: 3/8 in. NPT

Outlet Quantity: 1

Outlet Attachment: Female threads

Gasket Included: No

Wiring Harness Included: No

Mounting Bracket Included: Yes

Mounting Hardware Included: No

Pulley Included: No

Quantity: Sold individually.

Notes: 120GPH; Factory pressure setting: 6.5 psi; Inlet Port: 3/8" (NPT); Outlet Port: 3/8" (NPT); External Regulator Required: No; Supported HP: 480+; These pumps should be mounted as close to the fuel tank ass possible, at or below the fuel level; For proper installation and voltage requirements, use fuel pump relay kit #1795; Pump is for gasoline only; Call for more information

PDF-Installation Instructions
